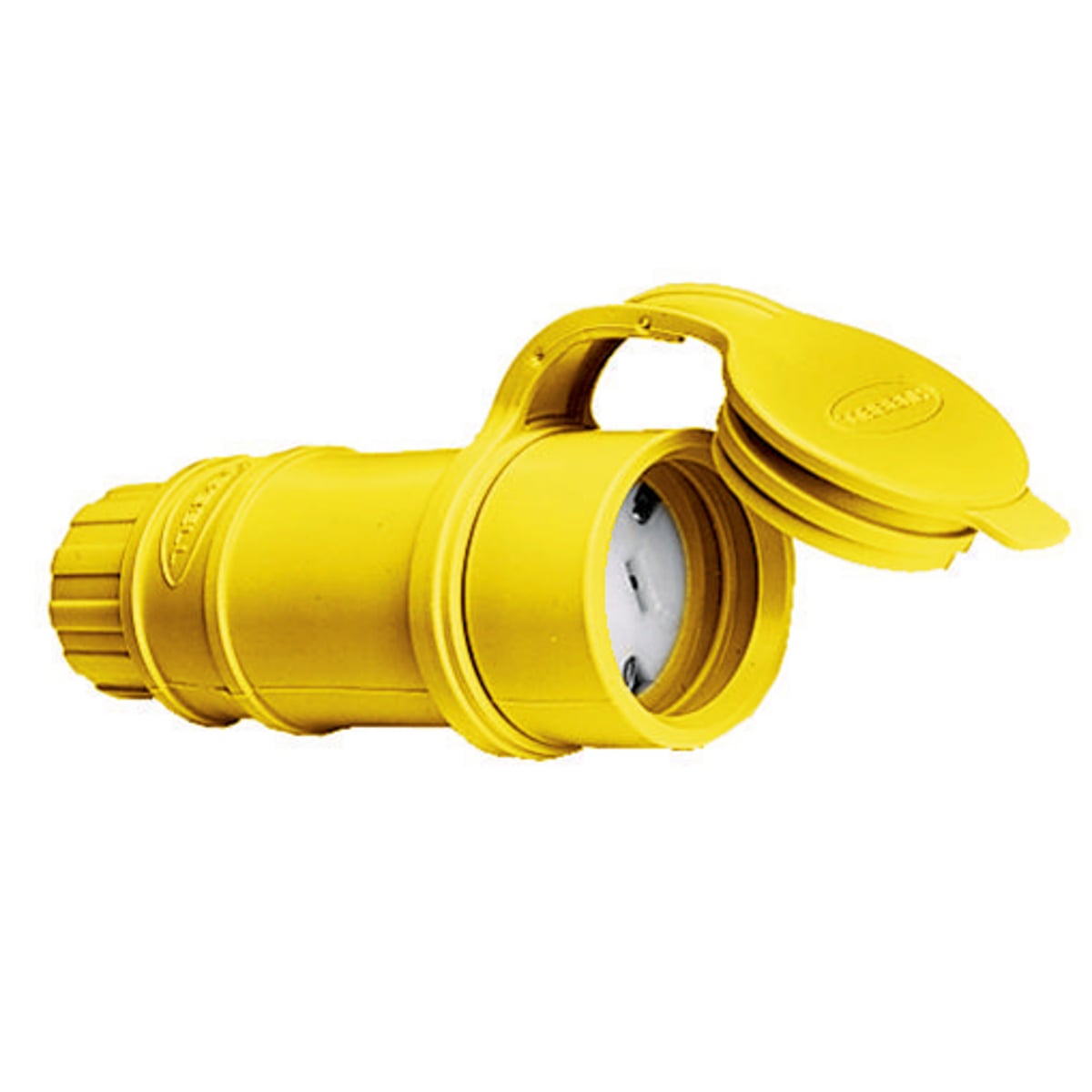

HBL15W47 Female Grounding Insulated Watertight Cord Mount Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Yellow
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL15W47
- UPC:
- 783585013022
- Item #:
- 66884
HBL15W47 Female Grounding Insulated Watertight Cord Mount Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Yellow
- MFR #:
- HBL15W47
- UPC:
- 783585013022
- Item #:
- 66884
Availability
| Location | Available Qty |
|---|---|
| Available | 8 ea |
$60.66
each
Manuals and Documentation
| Catalog Number | HBL15W47 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 15 |
| Application | Industrial/Commercial |
| Color | Yellow |
| Conductor Range | #18 AWG to #12 AWG |
| Connection | Screw Terminals |
| Insulation | Insulated Body |
| Material | Composite |
| Mounting | Cord |
| NEMA Rating | 5 |
| Number of Conductors | 3-Wire Grounding |
| Number of Poles | 2 |
| Special Features | Watertight |
| Standard | CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706 |
| UPC | 783585013022 |
| GTIN | 00783585013022 |
| Item Type | Connector Body |
| Size | 4.03 in x 1.76 in x 4.03 in |
| Environmental Conditions | Watertight |
| Temperature Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Voltage Rating | 125 |
