KILLARK

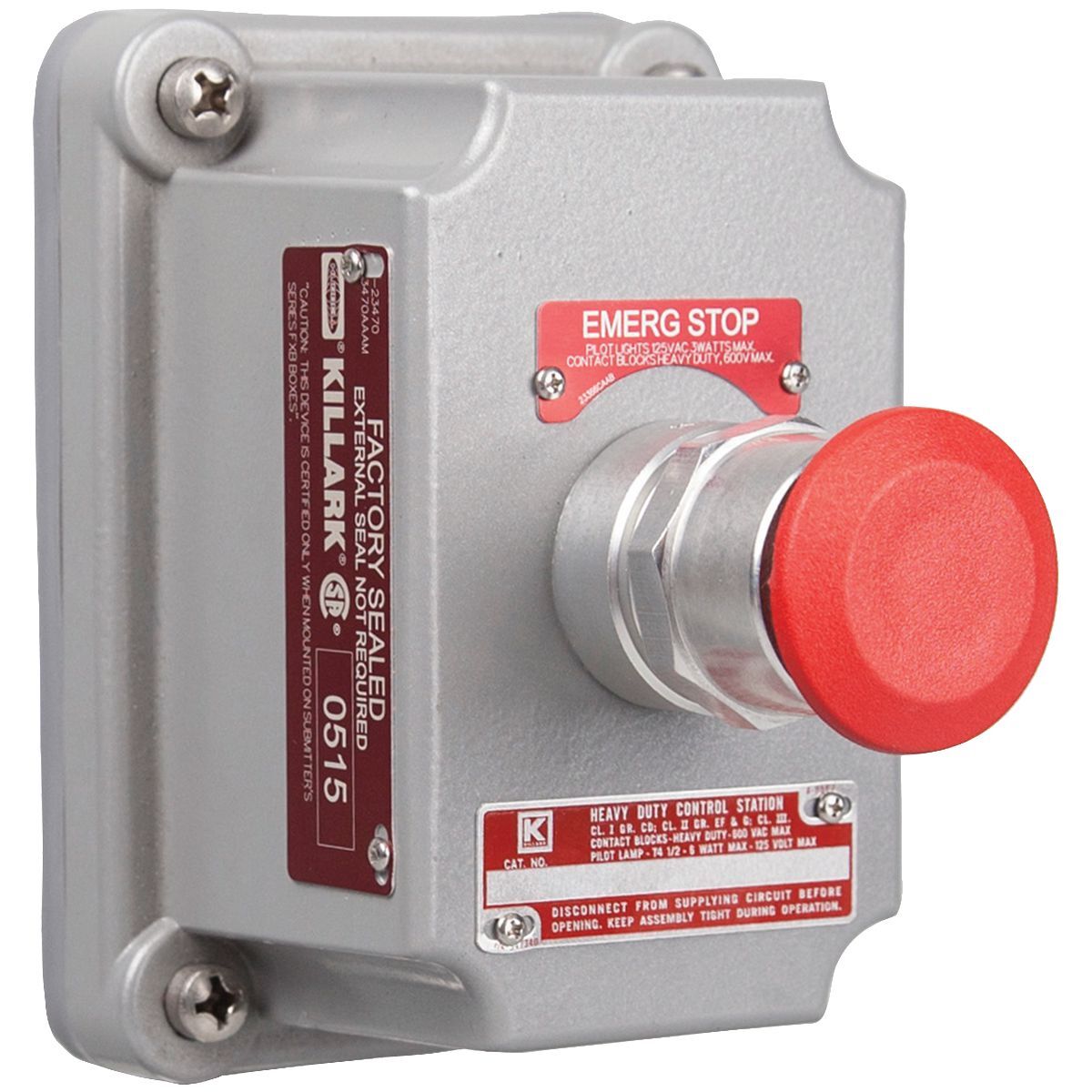

FXCS-0MMR3 FXCS Factory Sealed Single Pushbutton Cover Assembly, 600 V AC, 10 A, 1NO-1NC Contact, 1 Operators, NEMA 3/7CD/9EFG NEMA Rating

MFR:
Killark, a Hubbell affiliate
MFR #:
FXCS-0MMR3
UPC:
783936200255
Item #:
667112

Availability

Location Available Qty
Available Available to Order
Manuals and Documentation
Catalog Number FXCS-0MMR3
Manufacturer Killark, a Hubbell affiliate
Brand KILLARK
Country of Origin United States
Made in USA Yes
Action Maintained
Actuator Single Mushroom Pushbutton
Amperage Rating 10
Application SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
Color Red
Contact Configuration 1-NO/1-NC
Contact Rating 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Material Copper-free aluminum
Number of Poles 1
Special Features Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Standard UL, CSA
UPC 783936200255
GTIN 00783936200255
Item Type Aluminum Factory Sealed Cover With Push-Pull Button
Size 7 in x 6 in x 4.75 in
Environmental Conditions Hazardous locations
Voltage Rating 600 VAC maximum
