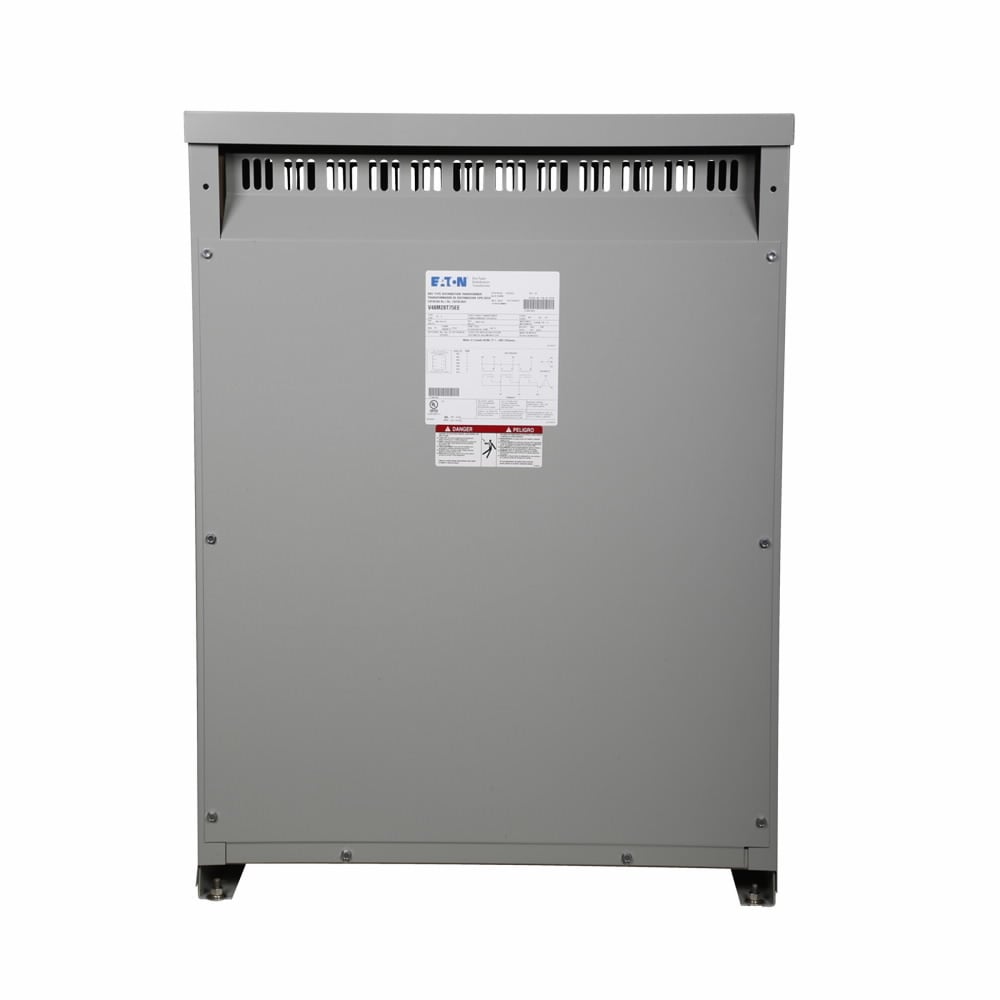

V48M28T30EE Type DT-3 Dry Type Energy Efficient Ventilated Distribution Transformer, 480 V AC Primary, 208Y/120 VAC Secondary, 30 kVA Power Rating, 60 Hz, 3 Phase
- MFR:
- Eaton
- MFR #:
- V48M28T30EE
- UPC:
- 786680019340
- Item #:
- 66593
V48M28T30EE Type DT-3 Dry Type Energy Efficient Ventilated Distribution Transformer, 480 V AC Primary, 208Y/120 VAC Secondary, 30 kVA Power Rating, 60 Hz, 3 Phase
- MFR #:
- V48M28T30EE
- UPC:
- 786680019340
- Item #:
- 66593
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Eaton types DS-3 (single-phase) and DT-3 (three-phase) general purpose ventilated dry-type transformers are two-winding, self-cooled, and available in a wide variety of primary and secondary voltage combinations. General purpose transformers are designed for continuous operation at rated kVA. They are designed, manufactured and tested in accordance with all of the latest applicable ANSI, NEMA and IEEE standards.
| Catalog Number | V48M28T30EE |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Commercial / Institutional Buildings / Structures - Safety and Security Systems |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Primary Voltage | 480 V |
| Secondary Voltage | 208 Y/120 V |
| Standard | UL Listed,NEMA TP-1 Compliant |
| UPC | 786680019340 |
| GTIN | 00786680019340 |
| Item Type | Ventilated transformer |
| Temperature Rating | 150 Degrees C rise |
