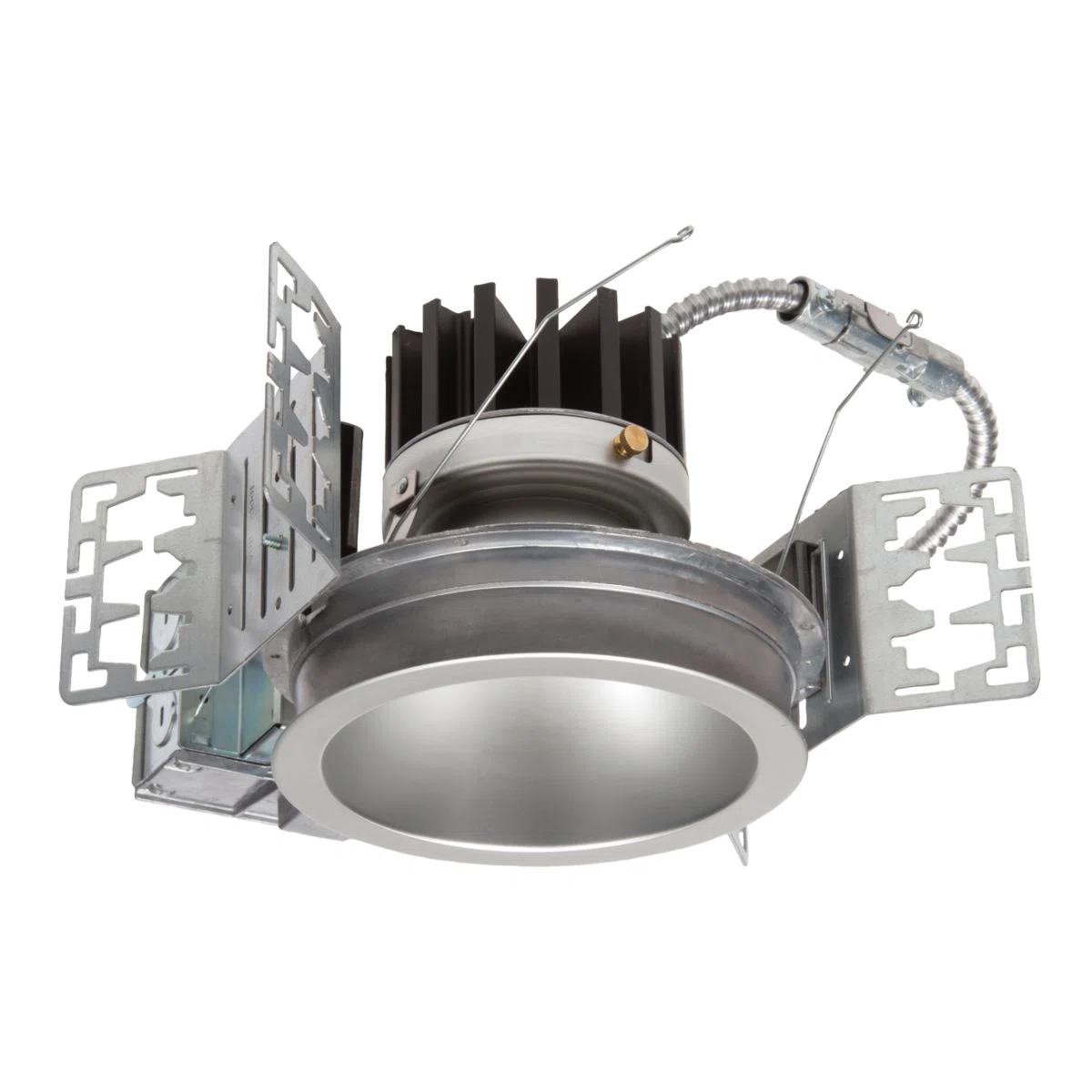

EU6B10208040 Round Standard Universal LED Module, 11/15.5/21.2 W Fixture, 6 in Ceiling Opening, 120/277 V, Die-Cast Aluminum Housing
- MFR:
- Cooper Lighting Solutions
- MFR #:
- EU6B10208040
- UPC:
- 080083788255
- Item #:
- 664536
EU6B10208040 Round Standard Universal LED Module, 11/15.5/21.2 W Fixture, 6 in Ceiling Opening, 120/277 V, Die-Cast Aluminum Housing
- MFR #:
- EU6B10208040
- UPC:
- 080083788255
- Item #:
- 664536
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
6 in LED recessed narrow, medium or wide beam downlight designed for glare free even illumination. Featuring a two-stage diffused reflector system producing smooth distribution with excellent light control and low aperture brightness. Lumens packages range from 500 to 7000 with color temperatures of 2400 K, 2700 K, 3000 K, 3500 K, 4000 K and 5000 K. Vivid Tune: Dim-to-warm technology - similar to Halogen at full power, the 3000 K LED warms smoothly as dimmed to 1850 K creating a rich warm glow within the space. Tunable white technology - adjust the color temperature from warm white to cool white while independently controlling intensity.
Manuals and Documentation
Features
- Cast or spun aluminum reflectors
- Two stage reflector system produces smooth beam
- Easy disconnect for LED engine replacement and installation
| Manufacturer Part Number | EU6B10208040 |
| Brand | Portfolio |
| Manufacturer | Cooper Lighting Solutions |
| UPC | 080083788255 |
| Country Of Origin | MX |
| Amperage Rating | 0.09/0.04 A at 1000 Lumens/0.13/0.06 A at 1500 Lumens/0.18/0.08 A at 2000 Lumens |
| Average Life | 55000 hr |
| Ballast Type | 0 to 10 V Dimmable |
| Color Rendering Index CRI | 80 |
| Color Temperature | 4000 K |
| Dimensions | 15.25 in L x 12.1 in W x 5.35 in H |
| Enclosure Type | IP66 |
| Fixture Wattage | 11/15.5/21.2 W |
| Housing Material | Die-Cast Aluminum |
| Lens Type | Convex Transitional |
| Lighting Technology | Dim-to-Warm/Tunable White |
| Lumens | 1000/1500/2000 Lumens |
| Mounting Type | Ceiling |
| Number Of Lamps | 1 |
| Series | EU6B |
| Type | Round Standard Universal |
| Voltage Rating | 120/277 V |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 5 Years |
| Standards Approvals | California T24 Compliant | CCEA Certified | cULus Listed | EMI/RFI FCC 47 CFR Part 15 Class B | ENERGY STAR® Certified | IC Rated | IES LM-79/80-08 | RoHS Compliant | TM-21-11 |
| Ceiling Opening | 6 in |
