Telemecanique

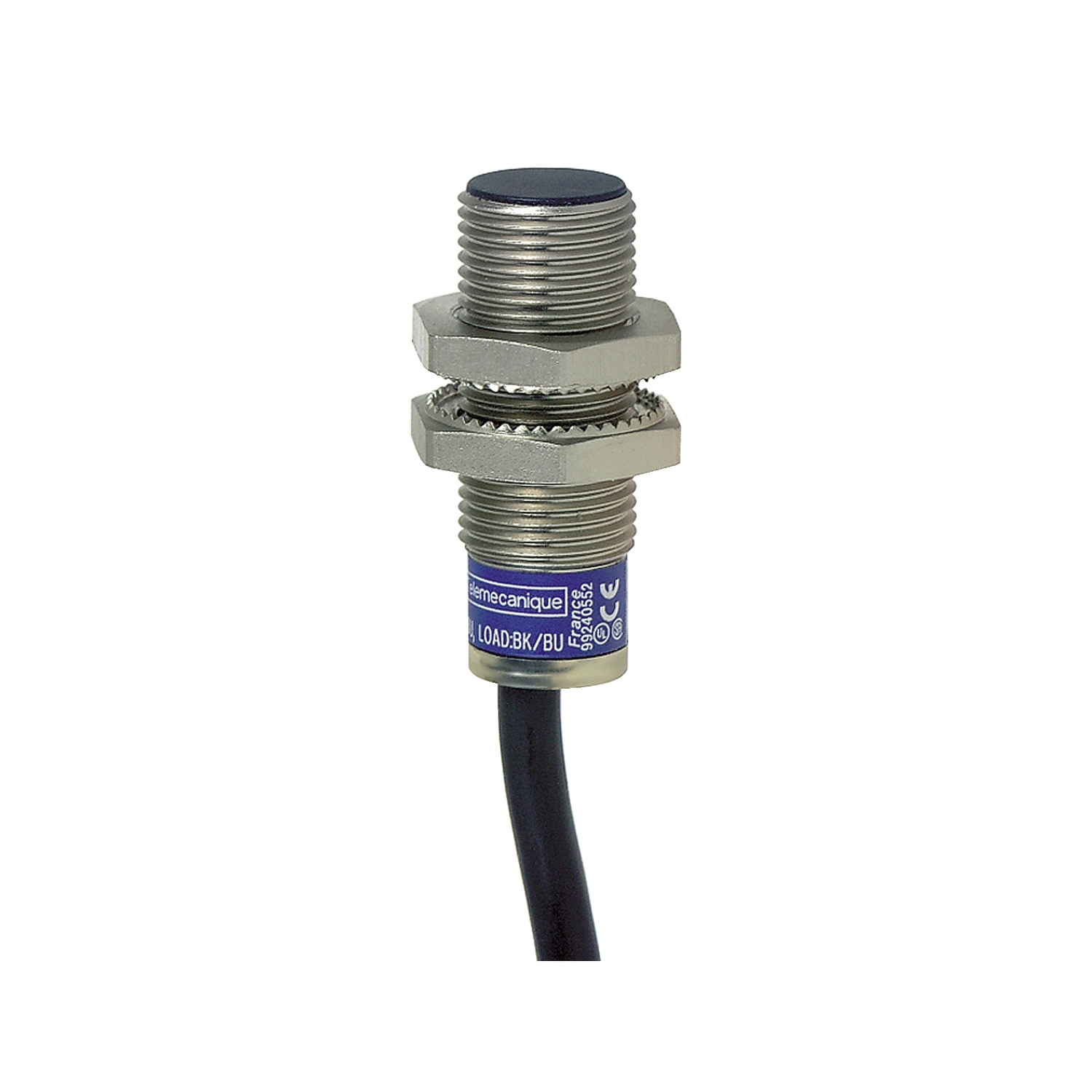

XS1N12NC410 OsiSense XS1 Series Cylindrical Fixed Form Proximity Sensor, Inductive, NPN/Discrete Output, 1NC-1NO Contact, 12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XS1N12NC410
UPC:
785901916758
Item #:
659807

Availability

Location Available Qty
Available Available to Order
$364.02 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable sensor. Diameter 12mm, threaded M12 x 1. It features a brass case and a 2m long cable. It has a sensing distance of 2mm Four-wire, DC supply, 12V to 24V, NO + NC function, NPN solid-state output .

Manuals and Documentation
Catalog Number XS1N12NC410
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application OXISENSE XS
Connector Cable
Control Output 1 NO + 1 NC
Enclosure Nickel Plated Brass
Indicator Output state 1 LED yellow)
Material Metal
Mounting Flush
Sensing Range > 0...0.1 IN (> 0...2.5 MM)
Sensor XS 1
Special Features IP68 DOUBLE INSULATION CONFORMING TO IEC 60529,CABLE
Standard IP68 double insulation conforming to IEC 60529;CE
Supply Voltage 12...24 V DC reverse polarity protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=867306&lang=en-us
UPC 785901916758
GTIN 03389110916751
Item Type Inductive proximity sensor;Cylindrical M12
Operating Temperature -25...70 Degrees C
