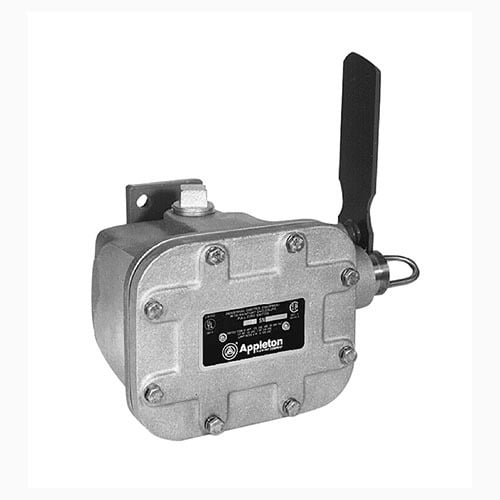

Conveyor Control Pull Cord Switch, Right Hand Single-End, Series: AFU, 120/240/480/600 VAC/115/230 VDC, 15/0.8/0.4 A, 1NO-NC Contact Configuration, 1 Pole, Plunger Actuator, Flag Arm Indicator, NEMA 3/4/4X/12/IP66 Enclosure, Lug Mounting, Cast Aluminum Case, Environmental Conditions: -40 to 151 deg F, 11-3/16 in L x 7-7/8 in D x 5-1/2 in H Dimensions
- MFR:
- Appleton Electric
- MFR #:
- AFU033302
- UPC:
- 781381741224
- Item #:
- 659318
Conveyor Control Pull Cord Switch, Right Hand Single-End, Series: AFU, 120/240/480/600 VAC/115/230 VDC, 15/0.8/0.4 A, 1NO-NC Contact Configuration, 1 Pole, Plunger Actuator, Flag Arm Indicator, NEMA 3/4/4X/12/IP66 Enclosure, Lug Mounting, Cast Aluminum Case, Environmental Conditions: -40 to 151 deg F, 11-3/16 in L x 7-7/8 in D x 5-1/2 in H Dimensions
- MFR #:
- AFU033302
- UPC:
- 781381741224
- Item #:
- 659318
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,615.23
each
Conveyor Control Switch, Type Single End Right Hand, Pull Cord, Operator Type Flag Arm, Voltage Rating 120/240/480/600 VAC, 115/230/250 VDC, Current Rating 15 Ampere at 120/240/480/600 VAC, 0.8 Ampere at 250 VAC/115 VDC, 0.4 Ampere at 230 VDC, Contact Configuration 1NO-1NC Double Break, Operating Force 25 Lb, Cable/Conduit Entry (2) 1 Inch Hub, Body Material Cast Aluminum, Body Finish Peened, Size 11-3/16 Inch L x 7-7/8 Inch D x 5-1/2 Inch H, Enclosure NEMA 3/3R/4/4X/12, Application Ordinary Location, Approval UL 508/698/1203, Temperature Range -40 to 150 Deg F
| Catalog Number | AFU033302 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Used in the control circuit of magnetic motor starters to shut down motor driven conveyors or other machinery. |
| Indicator | Flag Arm |
| Material | Housing: cast aluminum. Flag arm: steel with red epoxy paint. Actuator shaft, retaining ring, clevis loop and torsion springs: stainless steel |
| Number of Poles | 1 |
| Special Features | Rugged torsion spring for positive actuation of flag arm. Stainless steel bushing may be easily reversed to increase or decrease actuation force. Emergency stop or normal stop switch for conveyor lines, cranes, unloaders, bulk handling systems. For use in: steel mills, mining ore and coal handling operations, automotive and other assembly lines, warehouses, loading docks and other industrial processes |
| Standard | UL Standards: UL 508, UL 698, UL 1203. UL Listed: E164877, E10449 |
| UPC | 781381741224 |
| GTIN | 00781381741224 |
| Item Type | AFU Series 25 Pound Pull Force - Right hand single stop switch unit |
| Operating Temperature | - 40 DEG C to +66 DEG C |
