Telemecanique

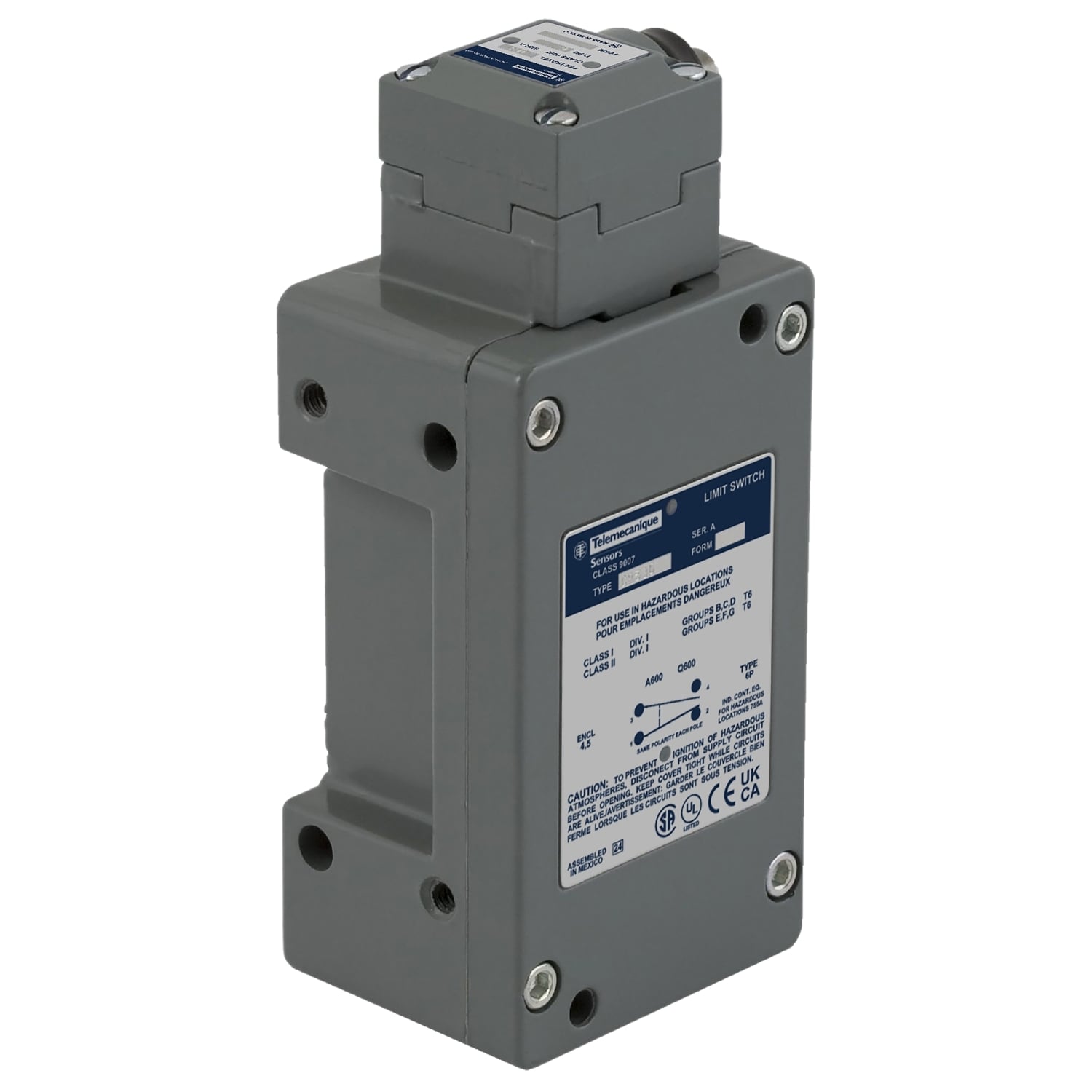

9007CR53GD Heavy Duty Limit Switch, 120/240/480/600 VAC, 125/250/600 VDC, 0.1/0.27/0.55/1.2/1.5/3/6/10 A, Spring Return Side Plunger Actuator, 1CO 1 Form Z SPDT-DB Contact, 1 Poles

MFR:
Telemecanique Sensors
MFR #:
9007CR53GD
UPC:
785901857358
Item #:
65484

Availability

Location Available Qty
Available Available to Order
$629.96 each

9007CR limit switch - 1 NO/NC - side push rod plunger - adjustable

Manuals and Documentation
Catalog Number 9007CR53GD
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action On end;Lateral approach, 1 direction;Snap action
Actuator Stainless steel spring return side plunger adjustable)
Amperage Rating 10
Application Hazardous location box
Connection Screw-clamp terminals AWG 22...AWG 12), 1-2
Contact Configuration NC-NO;Form Z
Contact Rating NEMA A600/Q600
Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Mounting By The Body
Number of Poles 1
Operating Cycles 1000000 CYCLES
Special Features without
Standard 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
UPC 785901857358
GTIN 00785901857358
Item Type Limit switch
Size 3.03
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -20-185 A Degrees F HAZARDOUS LOCATION
Voltage Rating 1.2 A 600 V AC, A600 NEMA-1.5 A 480 V AC, A600 NEMA-3 A 240 V AC, A600 NEMA-6 A 120 V AC, A600 NEMA-0.1 A 600 V DC, Q600 NEMA-0.27 A 250 V AC, Q600 NEMA-0.55 A 125 V DC, Q600 NEMA
