Telemecanique

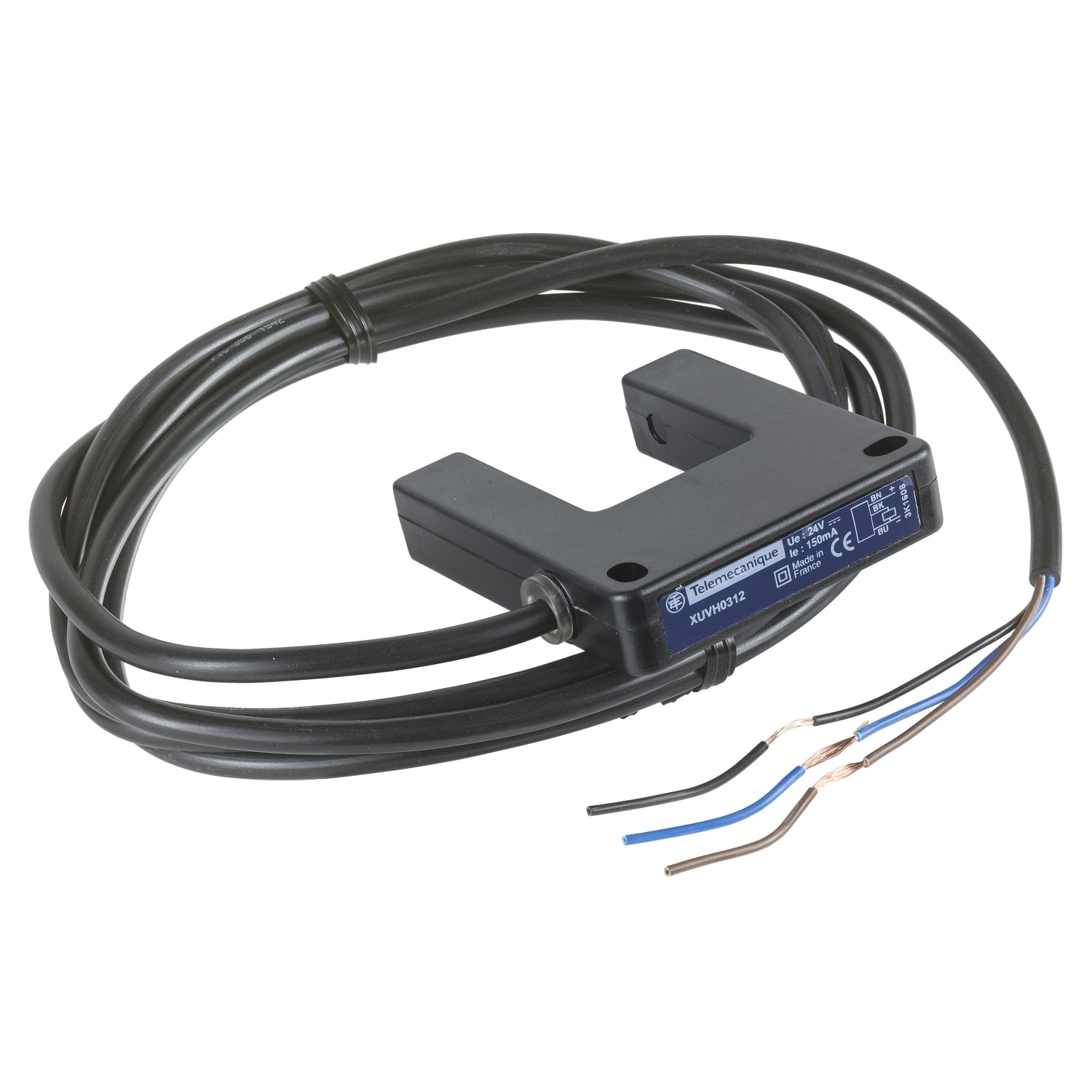

XUVH0312 OsiSense XU 3-Wire Optical Fork XU Photoelectric Sensor, 1.18 in, Infrared Sensing Beam, 0.5 ms Response, PNP 1NO Output

MFR:
Telemecanique Sensors
MFR #:
XUVH0312
UPC:
785901654162
Item #:
65477

Availability

Location Available Qty
Available Available to Order
$391.10 each

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor has a fork design. It has a through-beam detection system. It supports 30mm nominal sensing distance and 1 normally opened PNP solid state discrete output. It is furnished with 2m cable for electrical connection. It is an IP54 rated product. It is a photoelectric sensor with a rated supply voltage of 24V DC with reverse polarity protection, a no-load current consumption of =20mA and a switching frequency of =1kHz. It has an infrared emission and 1 LED for output state. The enclosure is made of ABS/PC with PMMA lens. Its dimensions are 14mm (Width) x 68mm (Depth) x 59mm (Height) and weighs 0.13kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE.

Manuals and Documentation
Catalog Number XUVH0312
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application Detection of flags in lifts/transtockers
Connection Cable
Enclosure ABS/PC,IP54 CONFORMING TO IEC 60529
Operating Cycles <= 1 kHz
Output PNP;1 NO;Discrete;Solid state
Response Time 0.5 MS
Sensing Range 30-30 MM
Special Features Output state 1 LED red)
Standard CE,IP54 IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=875972&lang=en-us
UPC 785901654162
GTIN 03389110748048
Item Type Application material handling;Thru beam;Fork;Photo-electric sensor
Size 2.68
Operating Temperature -5-55 A Degrees C
Voltage Rating 24 V DC reverse polarity protection
