Telemecanique

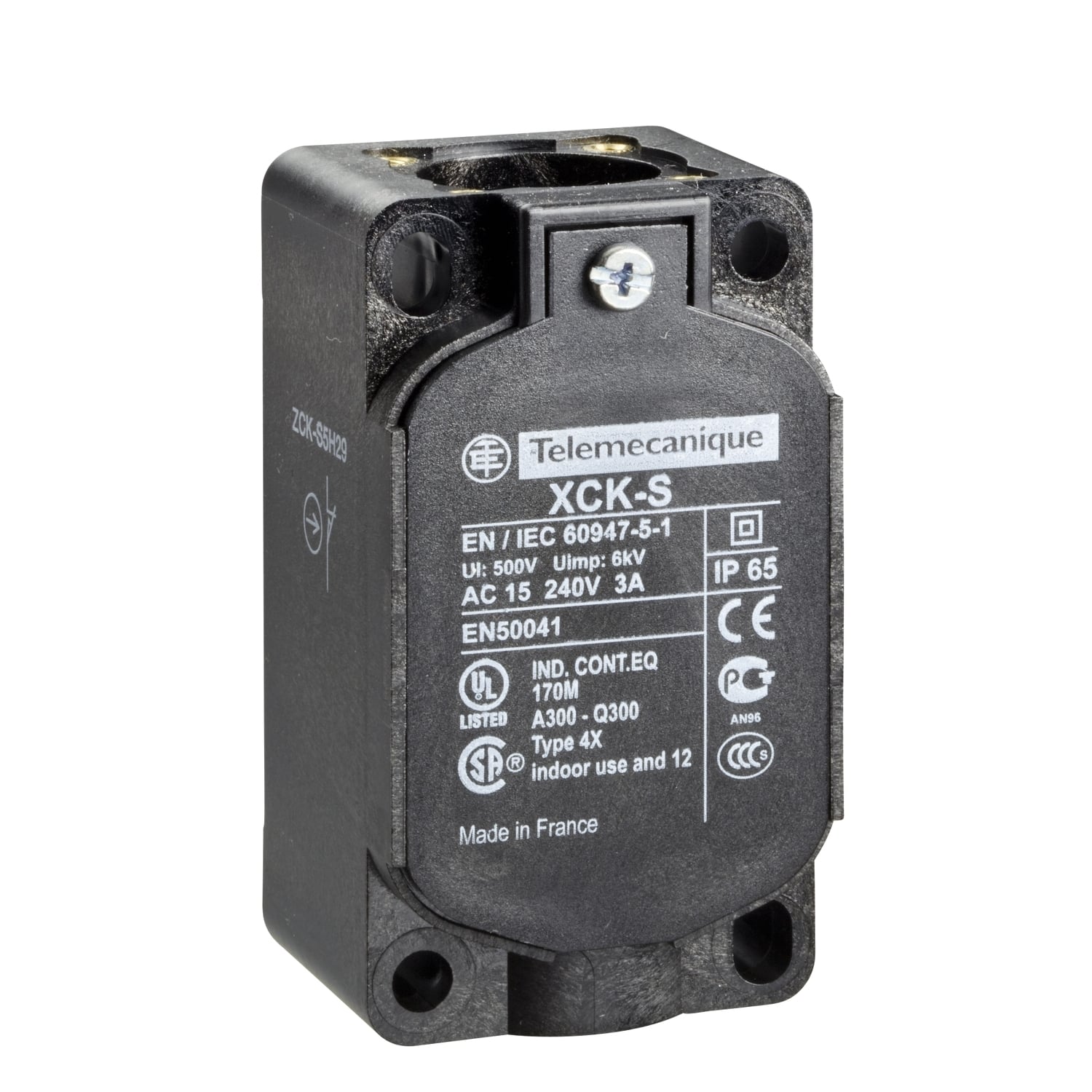

ZCKS7 OsiSense 2-Pole Fixed Limit Switch Body With Positive Opening, 2NC Contact, For Use With XCKS Standard Format Limit Switch, 3 A at 240 V AC, 0.27 A at 250 V DC Contact, IP65/IK03 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCKS7
UPC:
785901277651
Item #:
654743

Availability

Location Available Qty
Available Available to Order
$119.10 each

This body, with a 2-pole contact block, is a separate part for the XCKS limit switches. Contacts: 2 NC, simultaneous, slow break. It is a plastic, double insulated body, in EN 50041 format, with 1 Pg 13.5 cable entry.

Manuals and Documentation
Catalog Number ZCKS7
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Switzerland
Made in USA No
Action Slow-break, simultaneous
Amperage Rating 10
Application XCKS
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 2 NC
Enclosure IP65
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IK03,IP65
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880010&lang=en-us
UPC 785901277651
GTIN 03389110599695
Item Type Limit switch body
Size 1.42
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -25-70 A Degrees C STANDARD ENVIRONMENT
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
