SCHNEIDER ELECTRIC

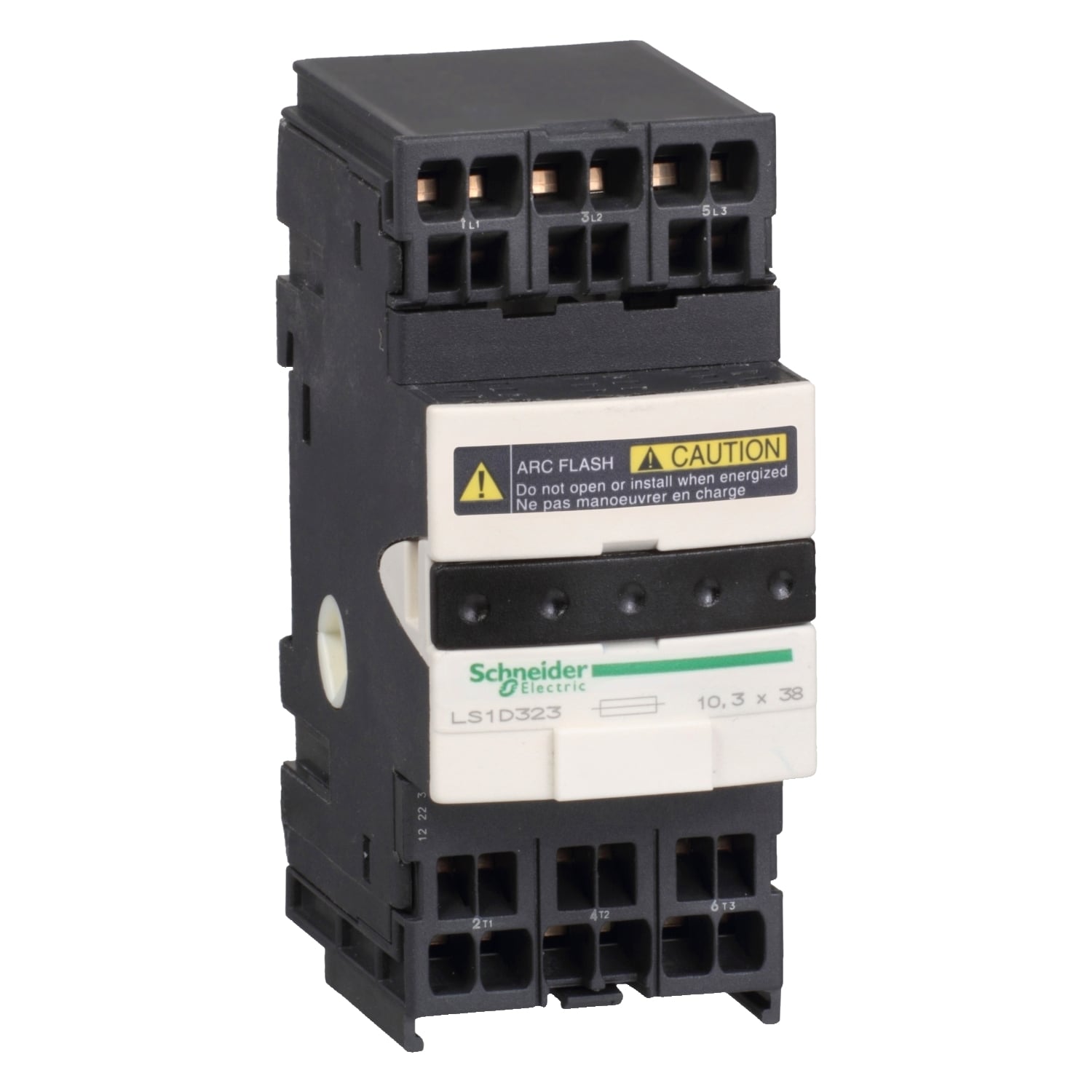

LS1D323 TeSys Toggle Control Fuse Disconnector, 600 V AC, 32 A, 3 Poles

MFR:
Schneider Electric
MFR #:
LS1D323
Item #:
654030

Availability

Location Available Qty
Available Available to Order
$108.89 each

TeSys LS fuse carrier block, 3 poles (3P), for protection of motors and transformers up to 25A/690V. To be used with 10x38mm fuse links up to 25A and short circuit current up to 100kA@400V. It provides a front handle. Compact (45mm width), it can be used in modular panels, clipping on 35mm DIN rail or screw fixing on panel, connection by spring terminals, padlockable. Fuse links (10x38mm aM, gG type) and add-on auxiliaries, auxiliary signaling contact block, external handles for RH or LH side, additional contact block for 4 poles applications) are available (to be ordered separately). Multi standards certified (IEC, UL recognized), Green Premium product (RoHS/REACh).

Manuals and Documentation
Catalog Number LS1D323
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Fuse Size 10 x 38 mm
Fuse Type GG;aM
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=640390&lang=en-us
GTIN 03389110273069
