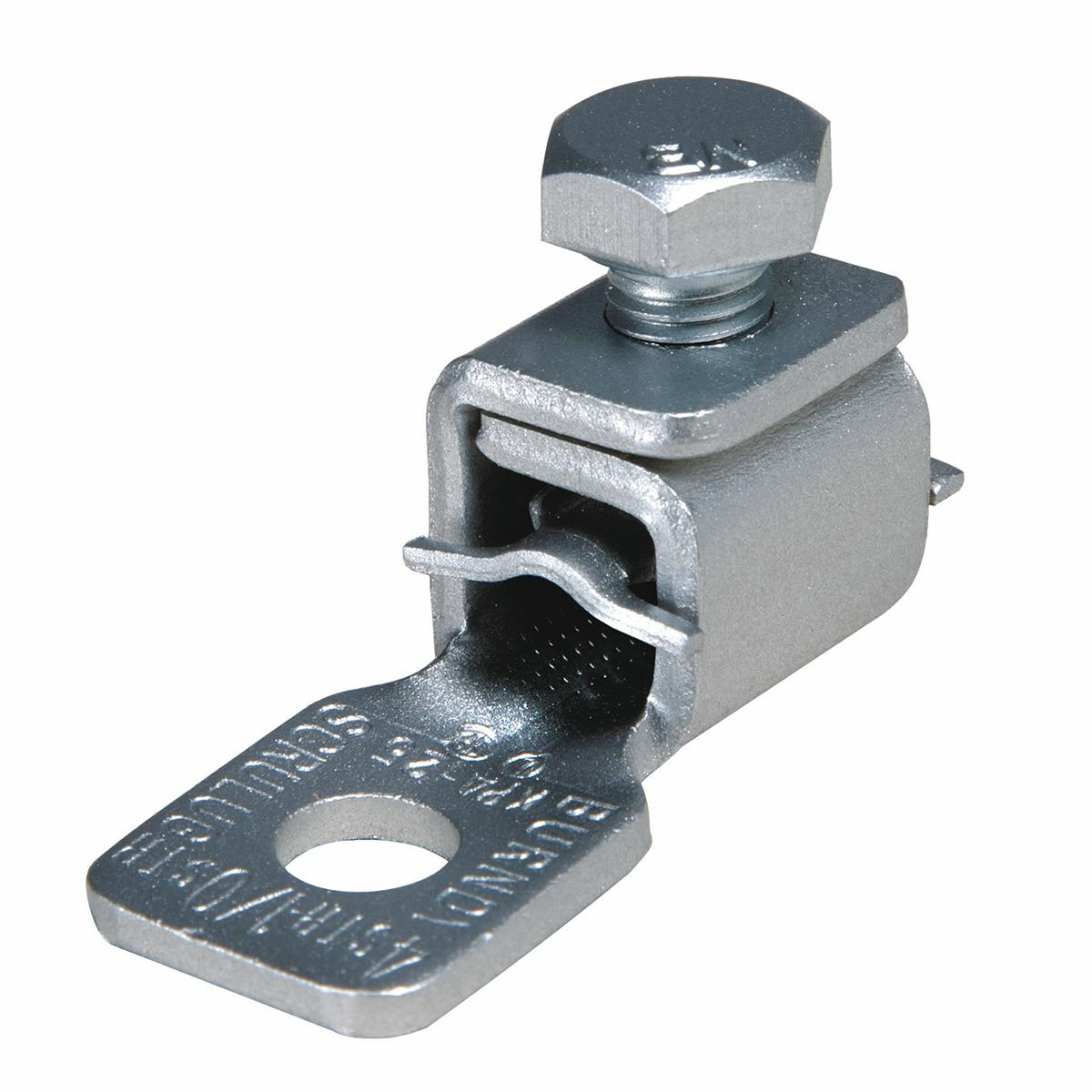

KPA8C KPA Cable Terminal Lug, 14 to 8 AWG Conductor Solid Copper Conductor, #10 Stud, 1 Bolt Holes
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- KPA8C
- UPC:
- 781810353455
- Item #:
- 65335
KPA8C KPA Cable Terminal Lug, 14 to 8 AWG Conductor Solid Copper Conductor, #10 Stud, 1 Bolt Holes
- MFR #:
- KPA8C
- UPC:
- 781810353455
- Item #:
- 65335
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$4.08
each
Manuals and Documentation
| Catalog Number | KPA8C |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks |
| Material | Copper |
| Special Features | Features: High Copper Alloy Tin-Plated Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications, The Tongue And Body Are A One-Piece Design, The Pressure Bar Equalizes Pressure Over The Conductor And Prevents The Screw From Cutting Into The Cable, Dimension K: 0.21 IN, Stud/bolt Hole Size: #10, Dimension D: 0.47 IN, Dimension N: 0.22 IN, Dimension T: 06 IN, Set Screw Type: Slot Robertson, Tongue Width: 0.38 IN, Installation Torque: 35 IN-LB, Length: 0.95 IN, Height: 0.72 IN |
| Standard | UL 486A-486B |
| UPC | 781810353455 |
| GTIN | 00781810353455 |
| Item Type | Bolted Lugs & Terminals |
