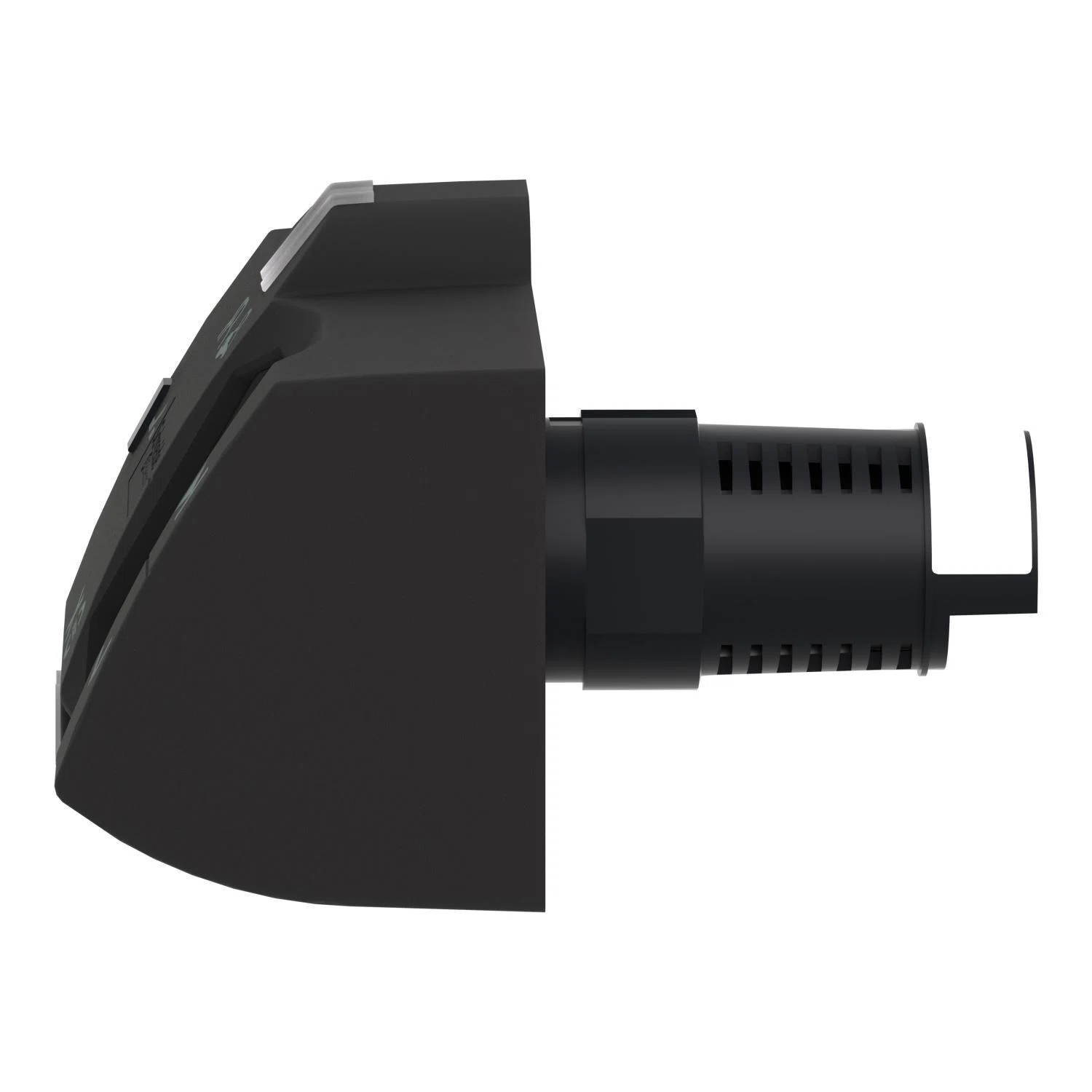

XB5S1B2M12 Harmony Bistable Stay Put Non-Illuminated Rectangular Biometric Switch, 24 V DC, 200 mA, Maintained Operation, M12 Connection, 23 to 122 deg F
- MFR:
- Schneider Electric
- MFR #:
- XB5S1B2M12
- UPC:
- 785901618461
- Item #:
- 65293
XB5S1B2M12 Harmony Bistable Stay Put Non-Illuminated Rectangular Biometric Switch, 24 V DC, 200 mA, Maintained Operation, M12 Connection, 23 to 122 deg F
- MFR #:
- XB5S1B2M12
- UPC:
- 785901618461
- Item #:
- 65293
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$531.30
each
This Harmony XB5, bistable biometric switch has a M12 connectoris supplied with 24V DC. This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It is easily installed into standard 22mm diameter cut-outs. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Manuals and Documentation
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
| Manufacturer Part Number | XB5S1B2M12 |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| UPC | 785901618461 |
| EAN | 3606480061400 |
| Country Of Origin | FR |
| Amperage Rating | 200 mA |
| Color | Black |
| Dimensions | 2.13 in H x 2.73 in W x 1.53 in D |
| Housing Material | Polyamide PA66 |
| Temperature Rating | 23 to 122 deg F |
| Type | Bistable Stay Put Non-Illuminated Rectangular |
| Voltage Rating | 24 V DC |
| Alternative Part Number | 10866057 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | RoHS Compliant | CE Certified | CSA File No. LR44087 Class 3211 03 | UL File No. E39281 | IEC 61000-6-2 | IEC 61000-6-4 | ECCN: EAR99 | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | For industrial machines and materials handling applications |
| Connection Type | M12 |
| Mounting Hole Size | 22 mm |
| Nema Rating | NEMA 12 |
| Operation Type | Maintained |
| Response Time | 1.5 s |
