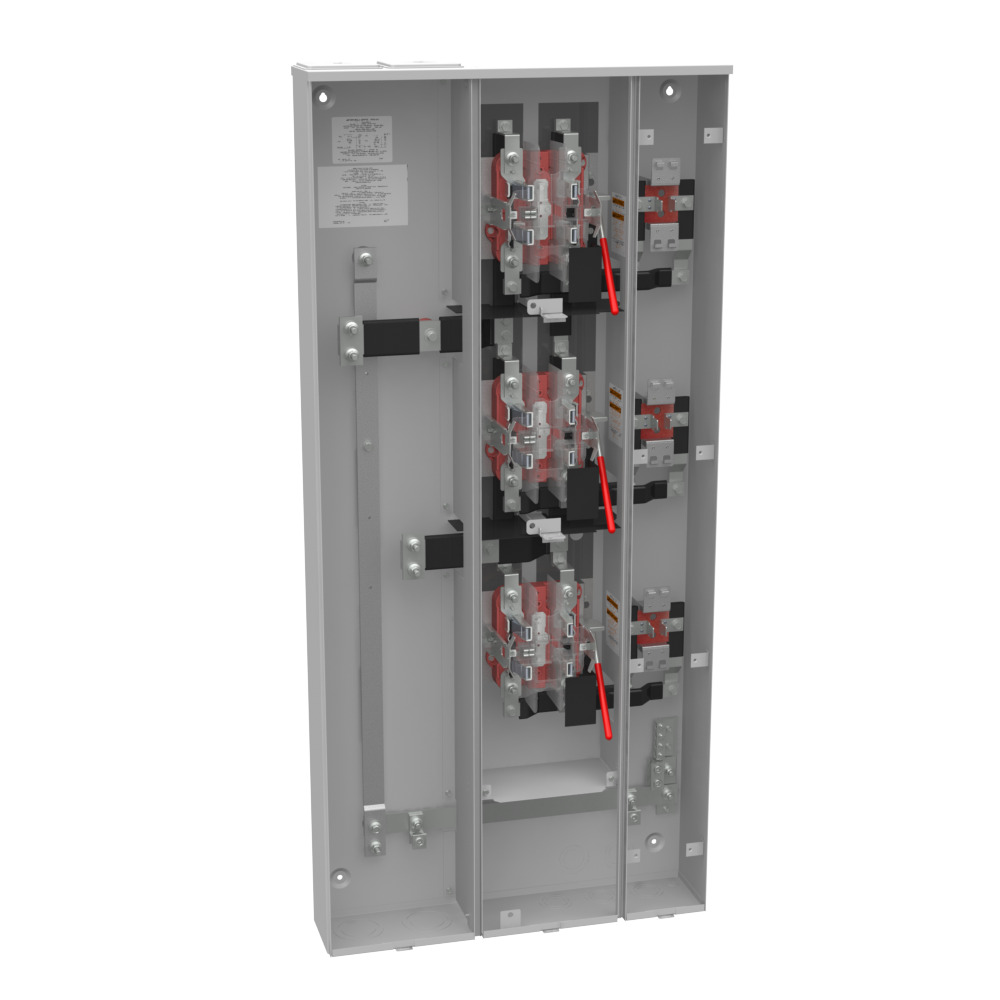

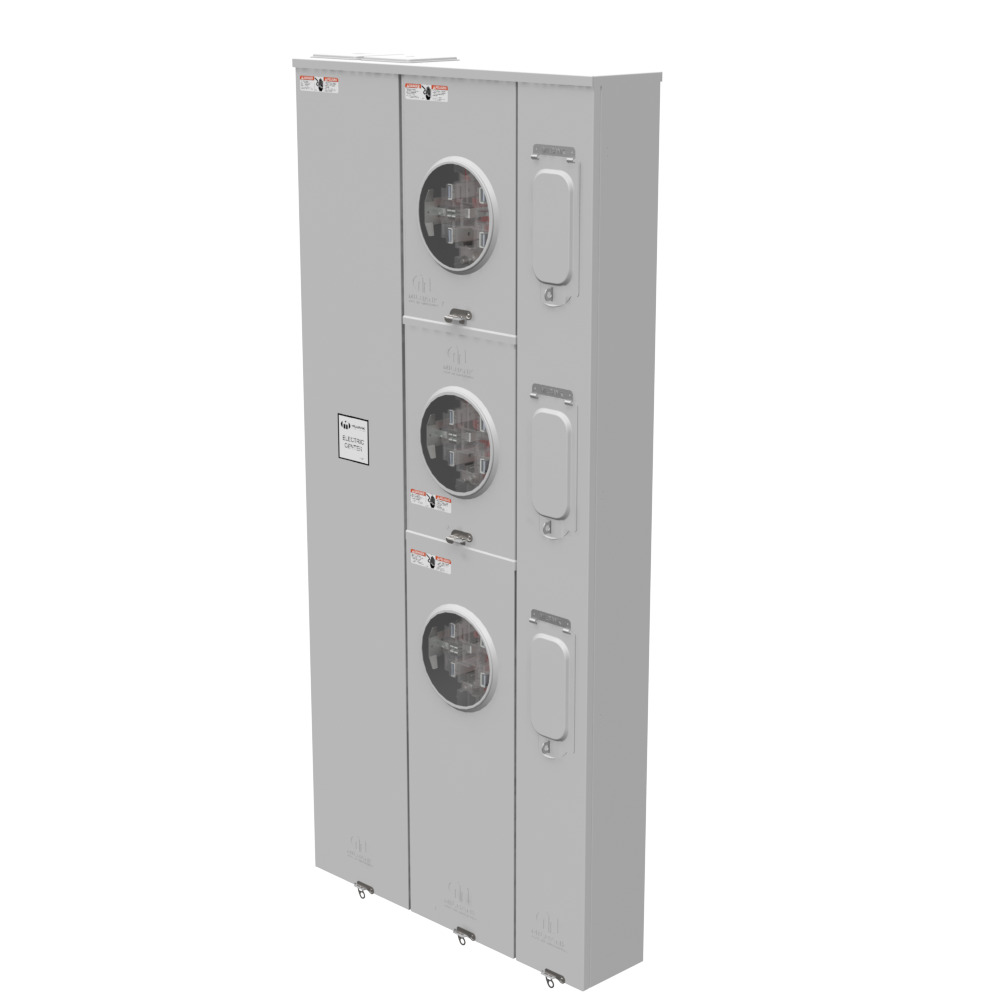

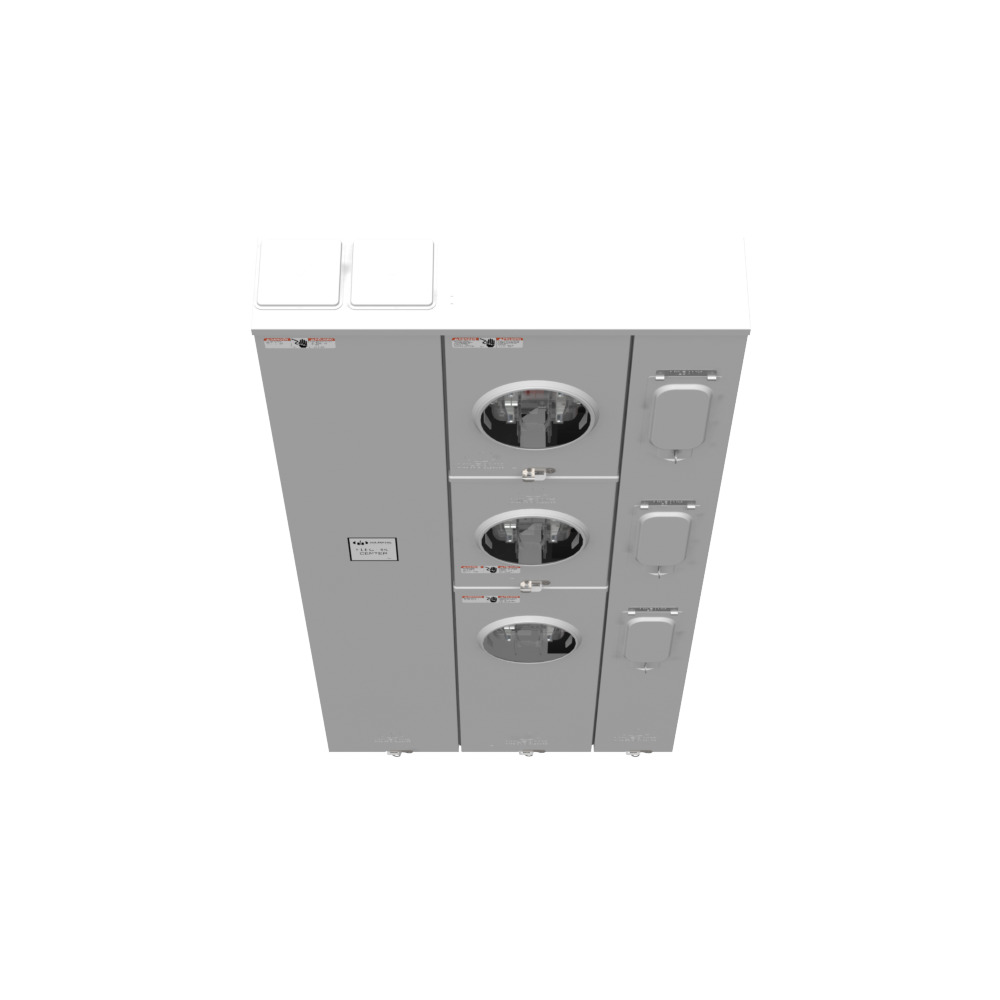

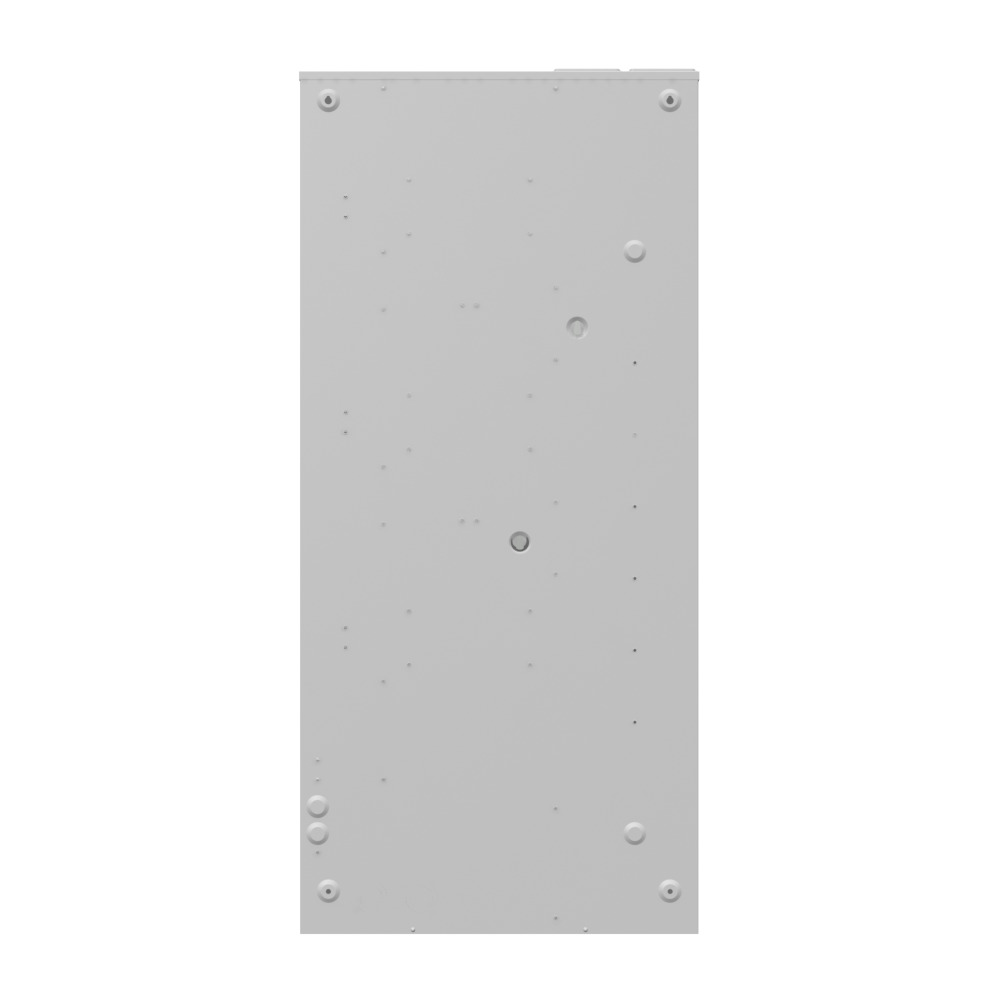

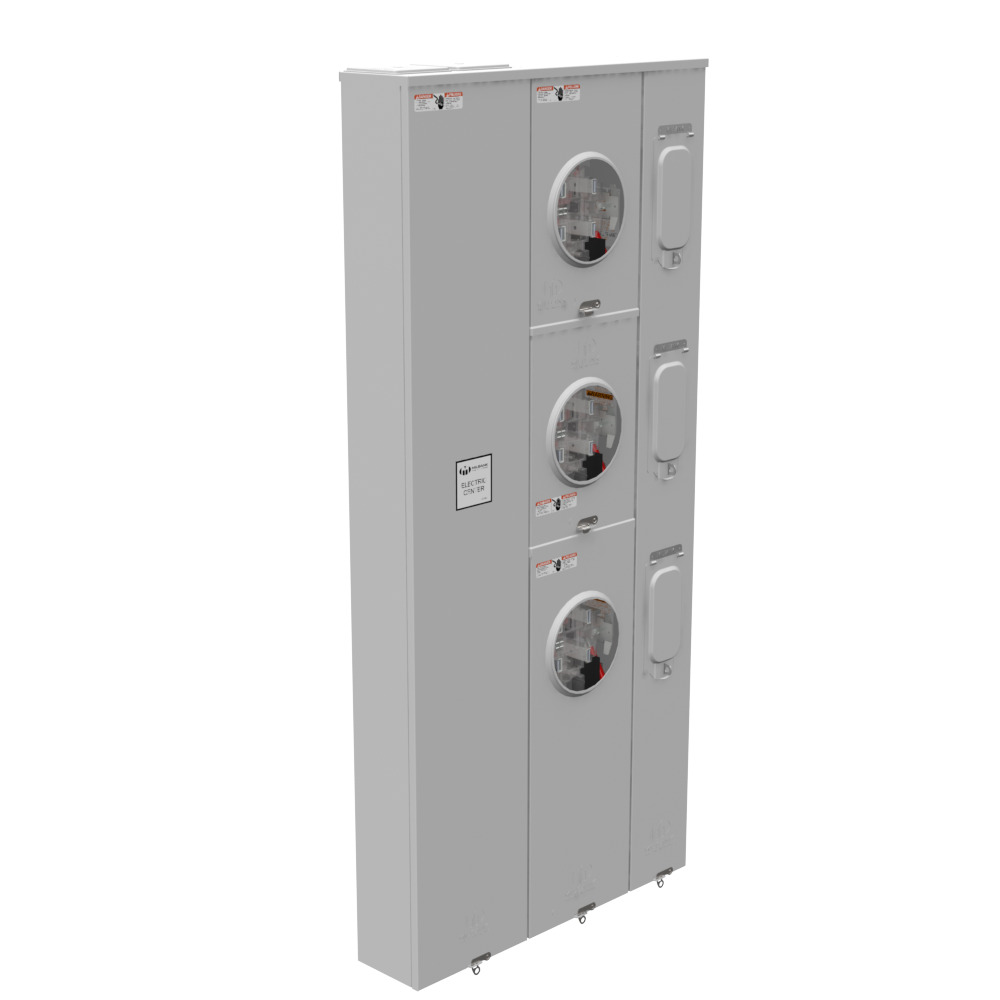

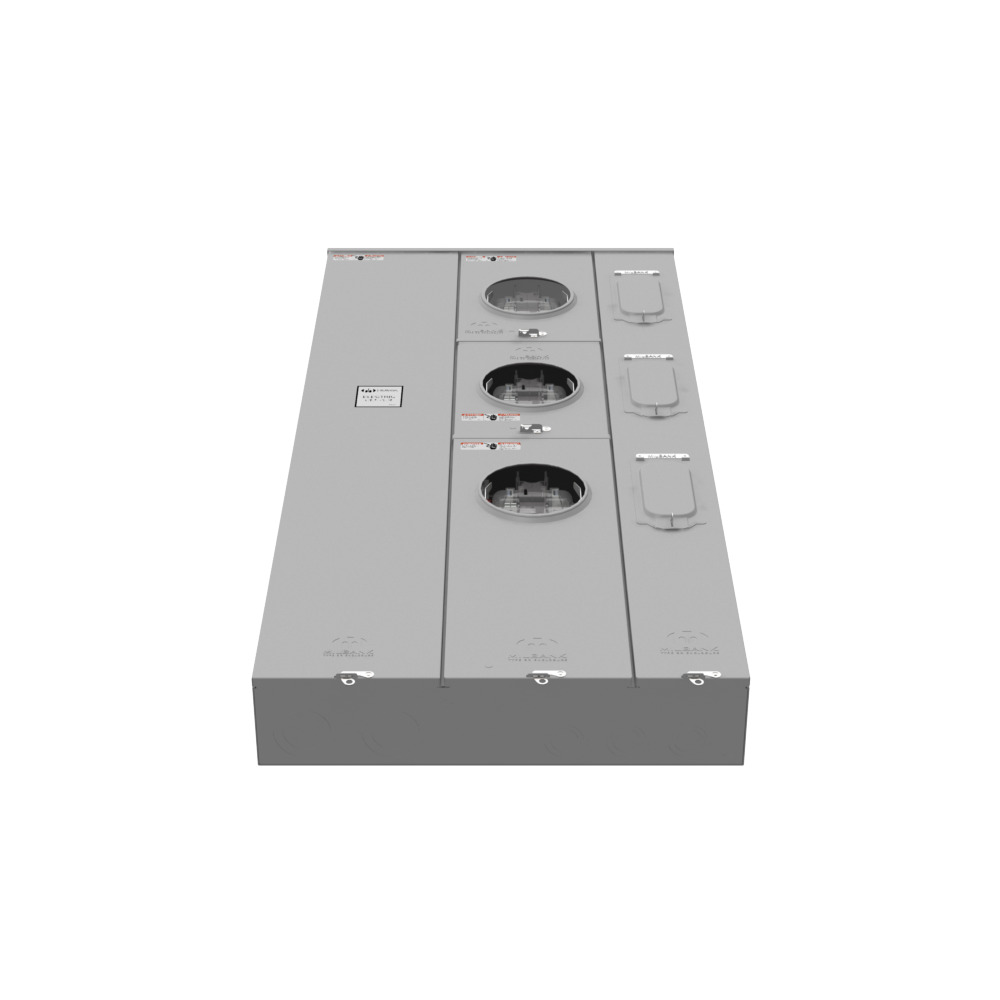

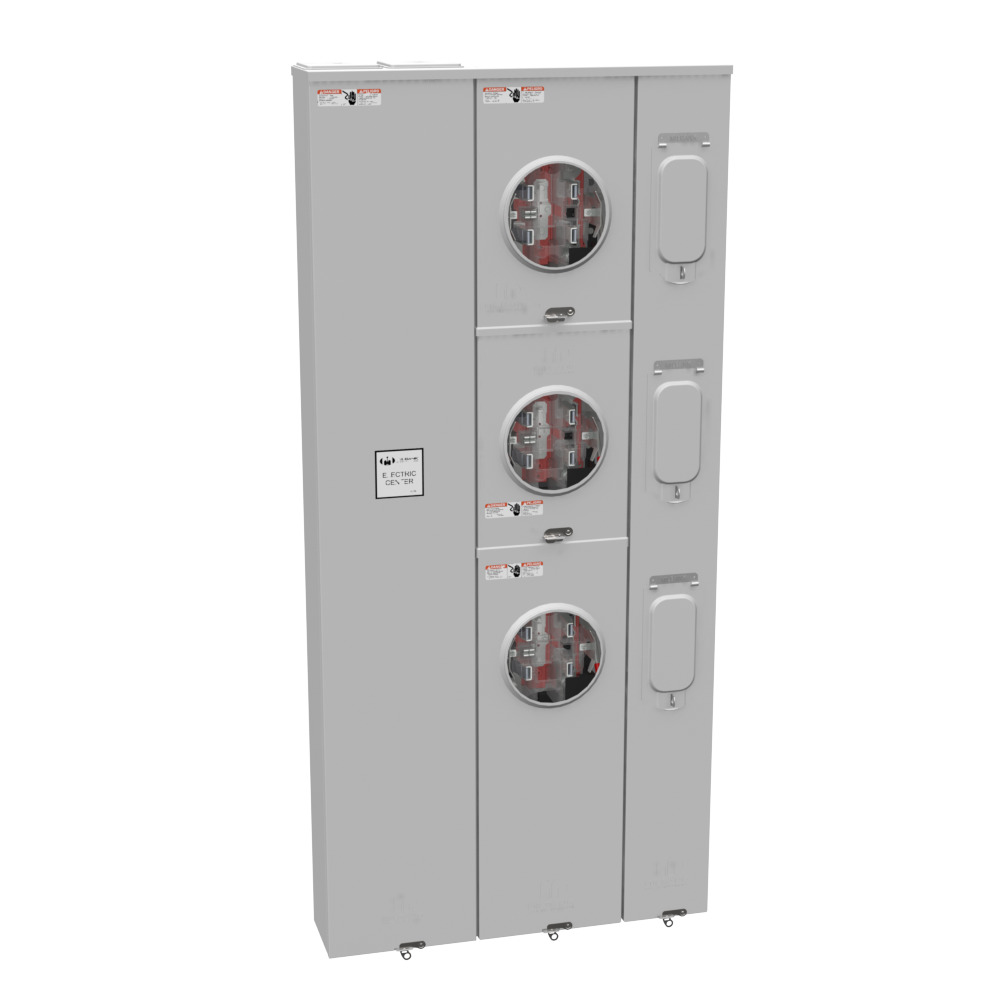

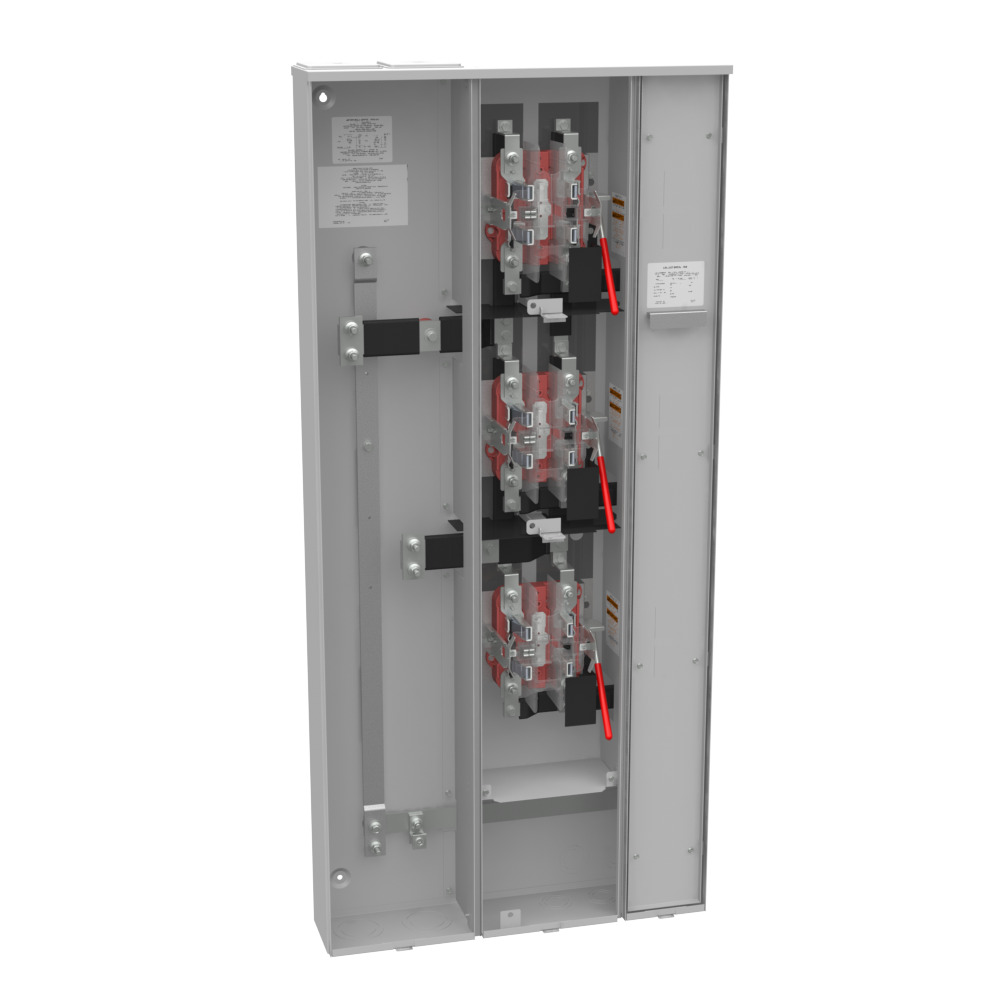

U4373-XT-5T9 5 Term, Ringless, 2 Large Closing Plates, Lever Bypass, 3 Position 3-200 Amp, Main Breaker Provision, 5th Term 9 Oclock Position
- MFR:
- Milbank
- MFR #:
- U4373-XT-5T9
- UPC:
- 784572263260
- Item #:
- 65289
U4373-XT-5T9 5 Term, Ringless, 2 Large Closing Plates, Lever Bypass, 3 Position 3-200 Amp, Main Breaker Provision, 5th Term 9 Oclock Position
- MFR #:
- U4373-XT-5T9
- UPC:
- 784572263260
- Item #:
- 65289
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$4,377.35
each
5 TERM RNGLS 2 LRG CLS PLTS LVR BYPS 3 POS 3-200 AMP MN BRKR PROV 5TH TERM 9 OCLOCK POS
Manuals and Documentation
| Catalog Number | U4373-XT-5T9 |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket With Main |
| Bypass Type | Lever |
| Cable Entry | Overhead or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 5 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572263260 |
| GTIN | 00784572263260 |
| Item Type | Ringless Meter Socket |
| Length | 6 |
| Length UOM | Inch |
| Width | 27.75 |
| Width UOM | Inch |
| Height | 60 |
| Height UOM | Inch |
| Size | 6L x 27.75W x 60H |
| Terminals | 3/8 Inch Stud |
| Voltage Rating | Up to 240 Volts Alternating Current |
| Cross Reference Products | BLine VELMP20433LGRST5K9|Milbank U4373-XT-5T9 |
