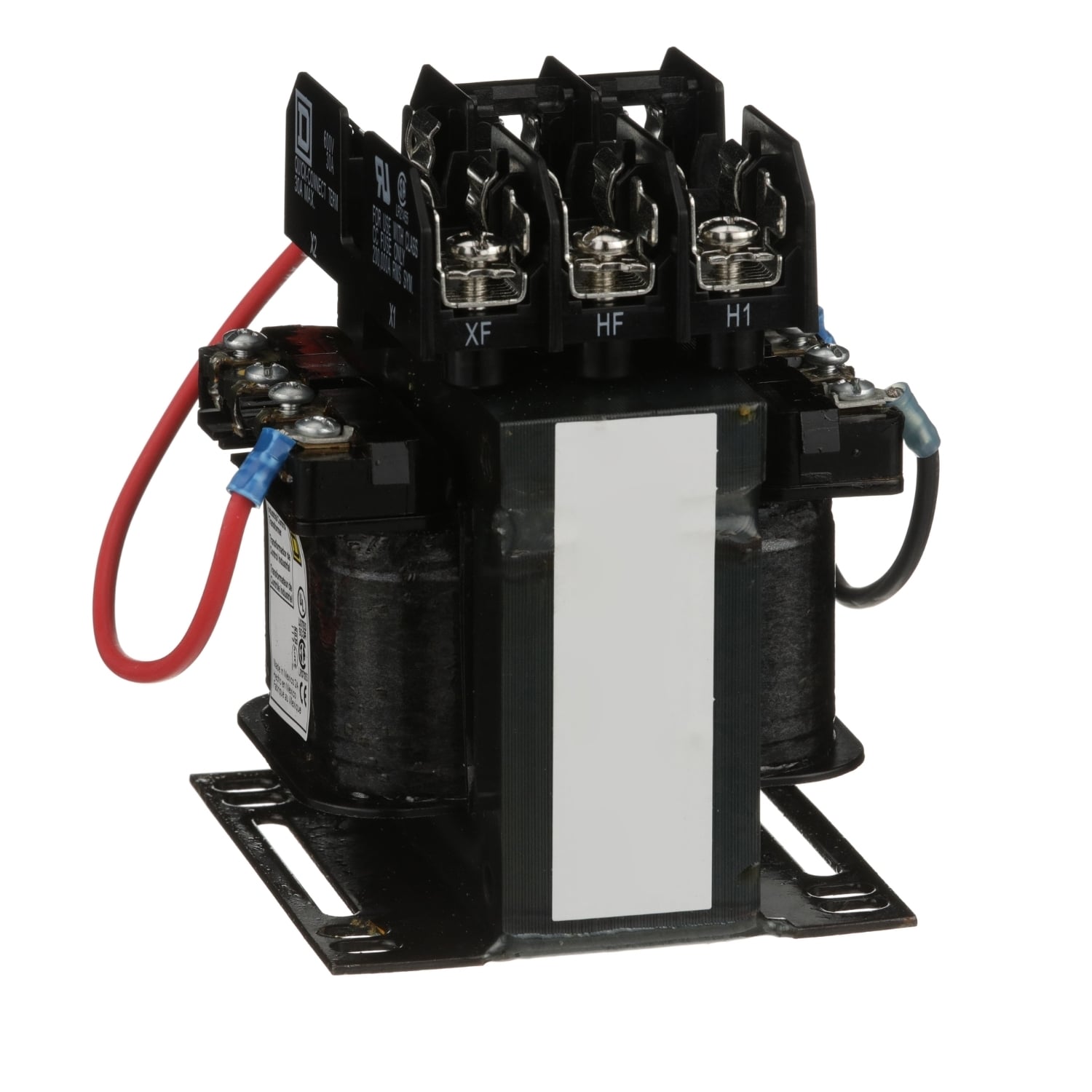

9070TF150D5 Type TF Industrial Open Style Control Transformer, 550/575/600 V AC Primary, 110/115/120 VAC Secondary, 150 VA Power Rating, 50/60 Hz, 1 Phase
- MFR:
- Schneider Electric
- MFR #:
- 9070TF150D5
- UPC:
- 785901039259
- Item #:
- 65240
9070TF150D5 Type TF Industrial Open Style Control Transformer, 550/575/600 V AC Primary, 110/115/120 VAC Secondary, 150 VA Power Rating, 50/60 Hz, 1 Phase
- MFR #:
- 9070TF150D5
- UPC:
- 785901039259
- Item #:
- 65240
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF transformers have the same footprint as the Type T. This design frees up space normally used for separate fuse blocks. Type TF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. This Industrial Control Transformer is 1 phase, and has a rated power of 150 VA. This transformer has a primary voltages such as 600 V and a secondary voltage of 120 V with a temperature rise of 55 C. The dimensions for this product are 4.55 in (H), 3.75 in (W), 3.59 in (D). This product is compatable with . This product complys to UL, CSA & NOM standards.
Manuals and Documentation
| Catalog Number | 9070TF150D5 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=454371&lang=en-us |
| UPC | 785901039259 |
| GTIN | 00785901039259 |
