XY2SB724 2-Hand Control Station
- MFR:
- Schneider Electric
- MFR #:
- XY2SB724
- Item #:
- 646397
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

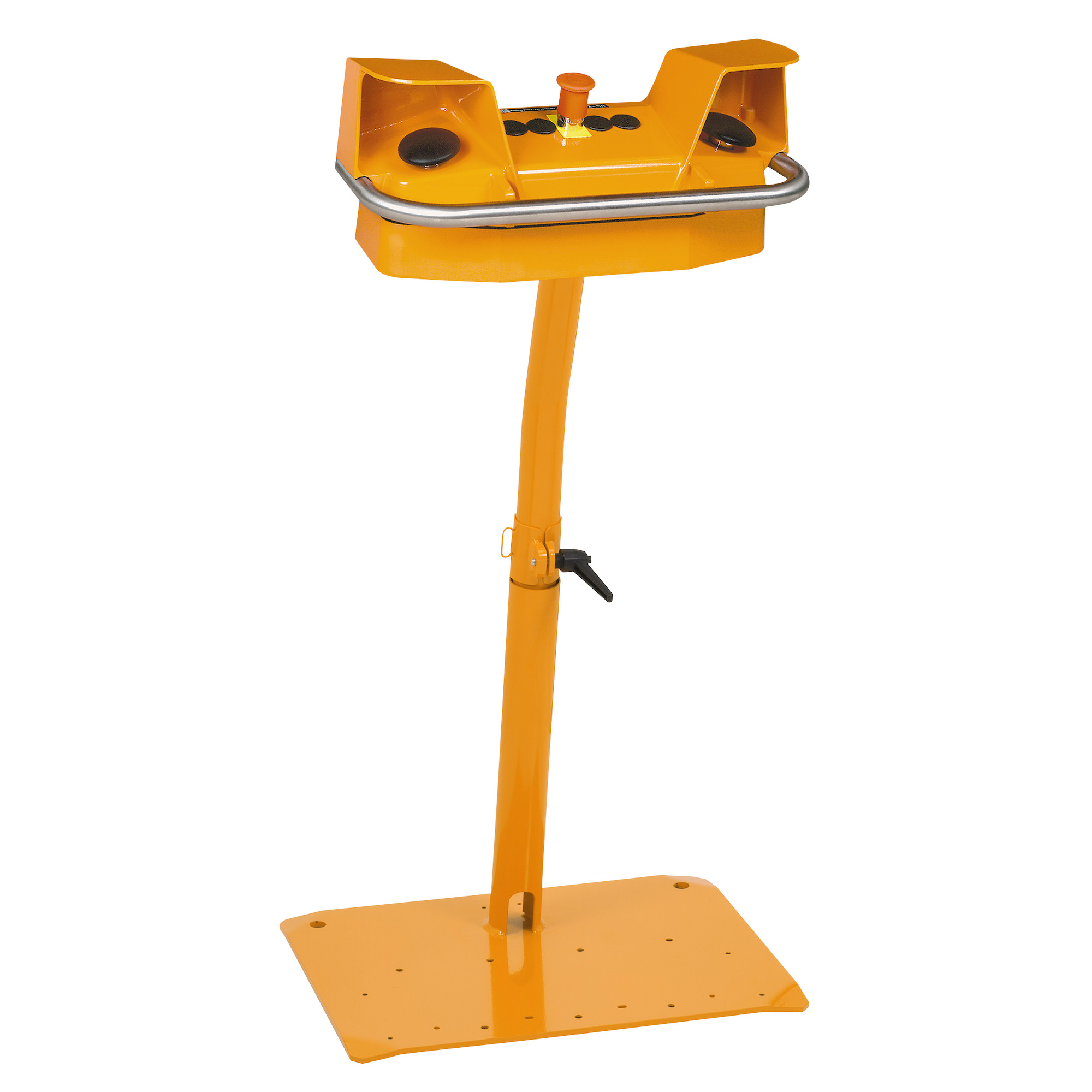

This two-hand control station protects machine operators against both industrial accidents and illnesses related to their occupation. Its design incorporates features to significantly reduce occupational illnesses associated with repetitive movements of the hands, particularly carpal tunnel syndrome. It features 2 control pushbuttons, 1 red mushroom head Emergency stop pushbutton with pre-wired terminal block and pedestal. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It conforms to the european safety standards, EN 574/ISO 13851 (two-hand control) and EN 999 (approach speeds of parts of the human body and positioning of safety devices).
Manuals and Documentation
| Catalog Number | XY2SB724 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty: 18 months |
| Country of Origin | France |
| Made in USA | No |
| Connection | PRE-WIRED TERMINAL BLOCK |
| Special Features | 10 A GG CARTRIDGE FUSE PROTECTION EN/IEC 60269 |
| Standard | 10 GN 11 MS EN/IEC 60068-2-27,5 GN 2-500 HZ)EN/IEC 60068-2-6,EN/IEC 60947-5-1-EN 574-ISO 13851,IP65 EN/IEC 60529,CLASS I EN/IEC 61140 |
| RoHS URL | https://www.reach.schneider-electric.com/DistantRequestDispatcher.aspx?action=export&pid=663454&lang=en-us |
| GTIN | 03389110092714 |
| Item Type | Two-hand control station and pedestal |
| Operating Temperature | -25-70 A Degrees C |
