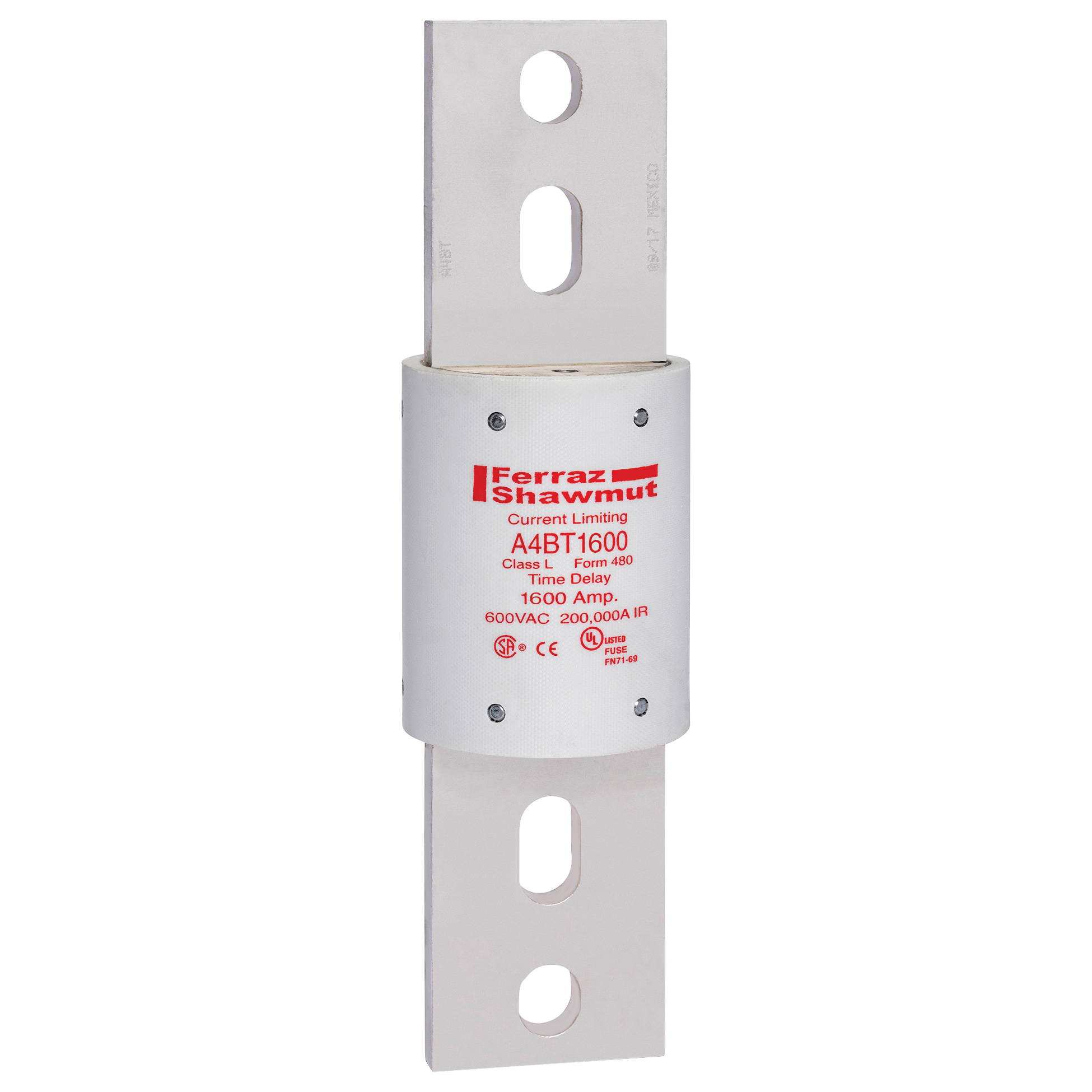

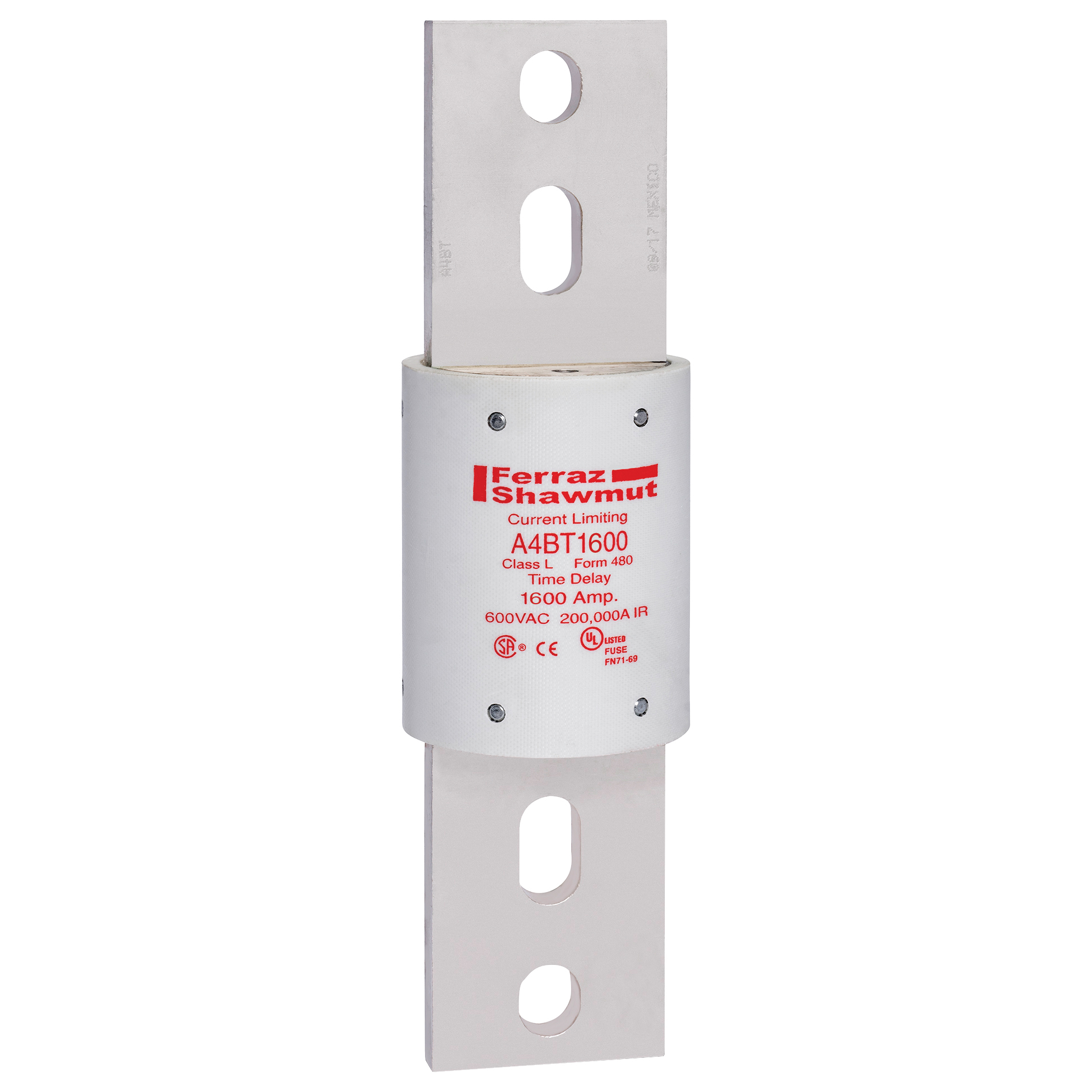

A4BT1600 Amp-Trap Current Limiting Low Voltage Time Delay Fuse, 1600 A, 600 V AC/500 V DC, 200/100 kA Interrupt, L Class, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- A4BT1600
- UPC:
- 782001939960
- Item #:
- 645832
A4BT1600 Amp-Trap Current Limiting Low Voltage Time Delay Fuse, 1600 A, 600 V AC/500 V DC, 200/100 kA Interrupt, L Class, Cylindrical Body
- MFR #:
- A4BT1600
- UPC:
- 782001939960
- Item #:
- 645832
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Fuse A4BT - Class L - Time-Delay 600VAC 500VDC 1600A Blade Amp-Trap
Manuals and Documentation
| Catalog Number | A4BT1600 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 1600 |
| Application | Motors Motor controllers Transformers Mains Feeders |
| Connection | Blade |
| Interrupt Rating | 200 KA |
| Mounting | Bolt |
| Special Features | Unique dimensions prevent replacement by other fuse classes. Blade-stamped catalog numbers for permanent identification Glass melamine body and plated terminals provide superior reliability in harsh environments |
| Standard | UL Listed to Standard 248-10, File E2137 CSA Certified to Standard C22.2, No. 248.68 Self-certified for DC per UL248 (601-2000) |
| UPC | 782001939960 |
| GTIN | 00782001939960 |
| Item Type | Class L |
| Size | 10.75 x 3 |
| Voltage Rating | 600 |
