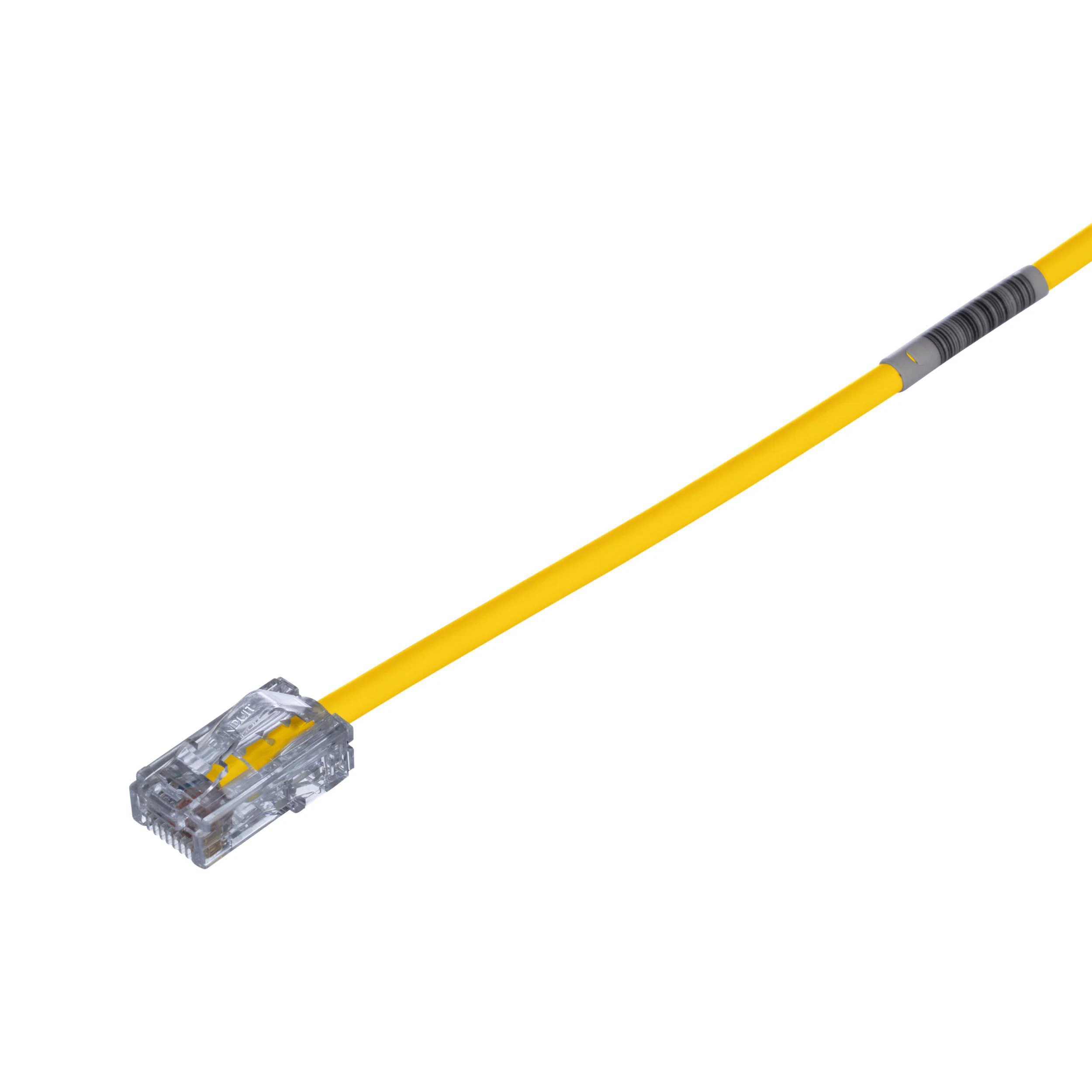

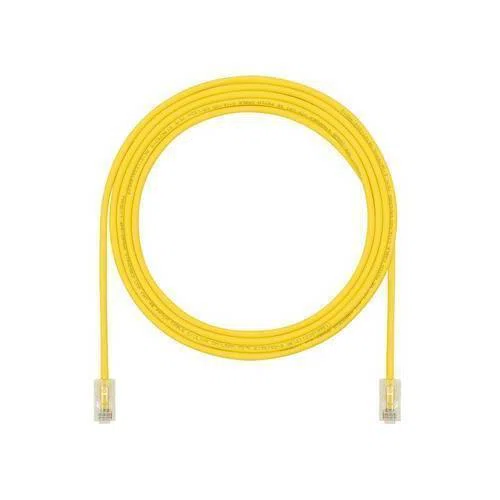

UTP28CH7YL PanNet TX5e-28 Class D Small Diameter Patch Cord With Pan-Plug Modular Plugs on Each End, Cat 5E, 28 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 7 ft L Cord, Yellow
- MFR:
- Panduit
- MFR #:
- UTP28CH7YL
- UPC:
- 074983485888
- Item #:
- 641625
UTP28CH7YL PanNet TX5e-28 Class D Small Diameter Patch Cord With Pan-Plug Modular Plugs on Each End, Cat 5E, 28 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 7 ft L Cord, Yellow
- MFR #:
- UTP28CH7YL
- UPC:
- 074983485888
- Item #:
- 641625
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$14.21
each
Category 5E/Class D, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Manuals and Documentation
Features
- 100% performance tested for wire map, next and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle-free latch
- Smaller diameter, flexible cable design
- Robust construction
- Smaller diameter and flexible cable design
- 100% performance tested for wire map, NEXT and return loss
- Integral pair manager
- Patented tangle free latch
- Flexible stranded cable
- Provides identification of performance level, length and quality control number for future traceability
- Robust construction
| Manufacturer Part Number | UTP28CH7YL |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 074983485888 |
| EAN | 0074983485888 |
| Category Type | Cat 5E |
| Color | Yellow |
| Conductor Size | 28 AWG |
| Conductor Type | U/UTP Copper Stranded |
| Connector Type | RJ45 Modular Plug Boot |
| Cord Length | 7 ft |
| Jacket Color | Yellow |
| Series | UTP28CH |
| Temperature Rating | 167 deg F |
| Type | Class D Small Diameter |
| Alternative Part Number | 11758666 | 11758567 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | ANSI/TIA 1096-A | ANSI/TIA 568-C.2 | ARRA Compliant | Buy American Act Compliant | CAN/CSA C22.2 | CE Marked | CM/LSZH Dual Rated Flammability Rated | cULus Listed | IEC 60603-7 | IEEE 802.3af/802.3at | IEEE 802.3bt Type 3 and Type 4 for PoE Compliant | RoHS Compliant | UL File No. 1863/E129886 | Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/80 |
| Application | 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155 Mbps ATM, 622 Mbps ATM, Voice/Data Systems and Voice over Internet Protocol (VoIP) |
