Telemecanique

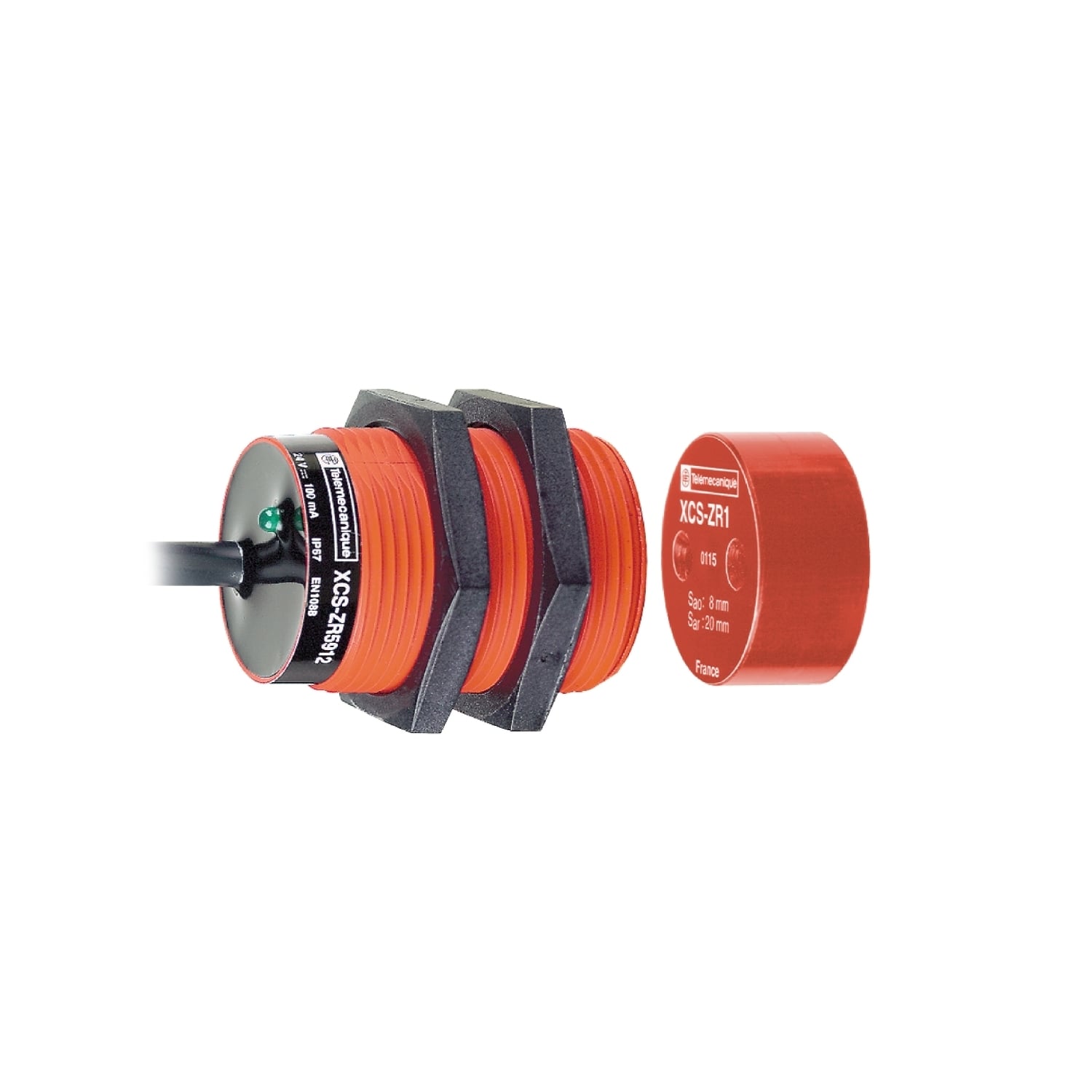

XCSDMR5912 Preventa 1-Direction 2-Pole Non-Contact Safety Interlock Switch, Coded Magnetic Actuator, 100 mA at 24 V DC Contact, 1NO-1NC Contact, Rhodium Contact

MFR:
Telemecanique Sensors
MFR #:
XCSDMR5912
UPC:
785901971825
Item #:
64155

Availability

Location Available Qty
Available 1 ea
$134.61 each

This XCSDMR Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 1 normally open and 1 normally closed staggered contact in presence of magnet + one Led. It has a cylindrical design with a 2 meter with PVC cable connection, allowing for flexible installation. Its B10D reliability data is 50 000 000. Its IP66 / IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals and Documentation
Catalog Number XCSDMR5912
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Action Staggered
Actuator NON-CONTACT
Amperage Rating 100
Connection Pre-cabled
Contact Configuration 1 NC + 1 NO
Enclosure Thermoplastic PBT
Special Features 1 LED
Standard 10 GN 10-150 HZ)IEC 60068-2-6,30 GN 11 MS IEC 60068-2-27,BG-CSA-UL,EN/IEC 60947-5-1-ISO 14119-EN/ISO 12100-CSA C22.2 NO 14-EN/IEC 60204-1-UL 508,IP66 IEC 60529-IP67 IEC 60529,CLASS II EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859108&lang=en-us
UPC 785901971825
GTIN 03389110971828
Item Type Coded magnetic switch
Size Ø 30 x 38.5 mm
Operating Temperature -25-85 A Degrees C
Voltage Rating 24 V DC
