Telemecanique

XS618B4PBM12 OsiSense XS Fixed Inductive Sensor, Proximity Sensor, PNP/Discrete Output, 1NC Contact, 12 to 48 V DC

MFR:
Telemecanique Sensors
MFR #:
XS618B4PBM12
Item #:
639477

Availability

Location Available Qty
Available Available to Order
$139.07 each

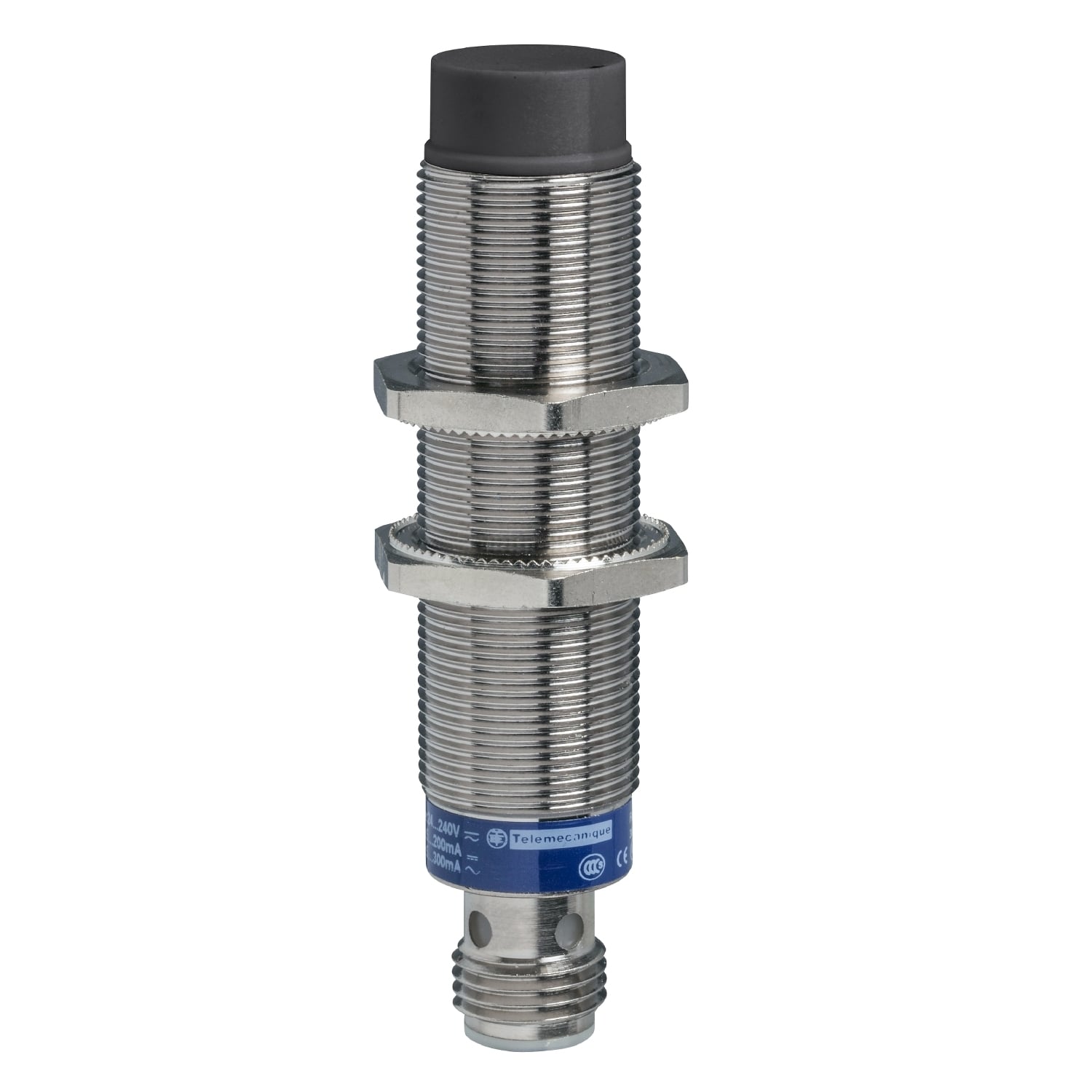

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, long case, non flush mountable sensor. Diameter 18mm, threaded M18 x 1. It features a nickel plated brass case and a M12 connector. It has a sensing distance of 12mm. Three-wire, DC supply, 12V to 48V, NC function, PNP discrete output .

Manuals and Documentation
Catalog Number XS618B4PBM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Mobile equipment
Connector Male connector M12, 4 pins
Enclosure Nickel Plated Brass
Indicator Output state 1 LED yellow)
Material Metal
Mounting Flush
Sensing Range > 0.31...0.59 in (> 8...15 mm)
Sensor 72 MM,INDUCTIVE PROXIMITY SENSOR
Special Features METAL
Standard IP68 double insulation conforming to IEC 60529;IP69K conforming to DIN 40050;CE
Supply Voltage 12...48 V DC reverse polarity protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=869892&lang=en-us
GTIN 03389119014212
Item Type Inductive proximity sensor;Cylindrical M18
Operating Temperature -25-70 A Degrees C
