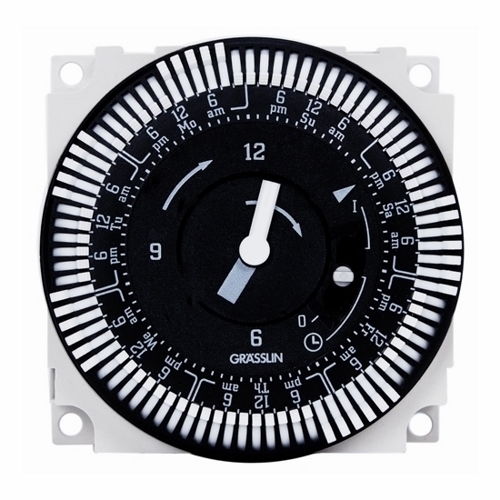

7-Day 120V Electromechanical Panel Mount Timer Module with Battery Backup and Manual Override, 2 Hour Intervals, 21A, SPDT
MFR: Intermatic
MFR #: FM1QWUZH-120U
UPC: 078275152663
Item #: 63892
7-Day 120V Electromechanical Panel Mount Timer Module with Battery Backup and Manual Override, 2 Hour Intervals, 21A, SPDT
MFR #: FM1QWUZH-120U
UPC: 078275152663
Item #: 63892
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$243.78
each
The FM1 series timer modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.
Manuals and Documentation
- Catalog Number
- FM1QWUZH-120U
- Manufacturer
- Intermatic
- Brand
- Intermatic
- Country of Origin
- Mexico
- Made in USA
- No
- Action
- SPDT
- Application
- HVACR, Lighting, Security, Circulating Pumps, Spas, OEM Applications
- Connection
- 1/4 IN Quick Connect
- Contact Configuration
- 1 NO/1 NC
- Contact Rating
- 21 AMP @ 120 - 250 VAC
- Mounting
- Panel Mount
- Number of Poles
- 1
- Special Features
- Features: Noise Immune - Ideal for Robust Applications, Quartz Drive with Battery Backup, True Clock Face Easy-to-Set, Compact Size, With Override Switch, 7-Days Carryover
- Standard
- CE Certified, HVACR, cULus Recognized #10694, cCSAus Certified LR3730
- UPC
- 078275152663
- GTIN
- 00078275152663
- Item Type
- Quartz Electromechanical
- Size
- 2.36 HEIGHT X 2.36 WIDTH X 1.25 DEPTH IN, 60 HEIGHT X 60 WIDTH X 32 DEPTH MM
- Operating Temperature
- -4 to +131 DEG F, -20 to +55 DEG C
- Timing Range
- 2 HR - 7 DAYS
- Voltage Rating
- 120
- Wattage
- 1350 W
