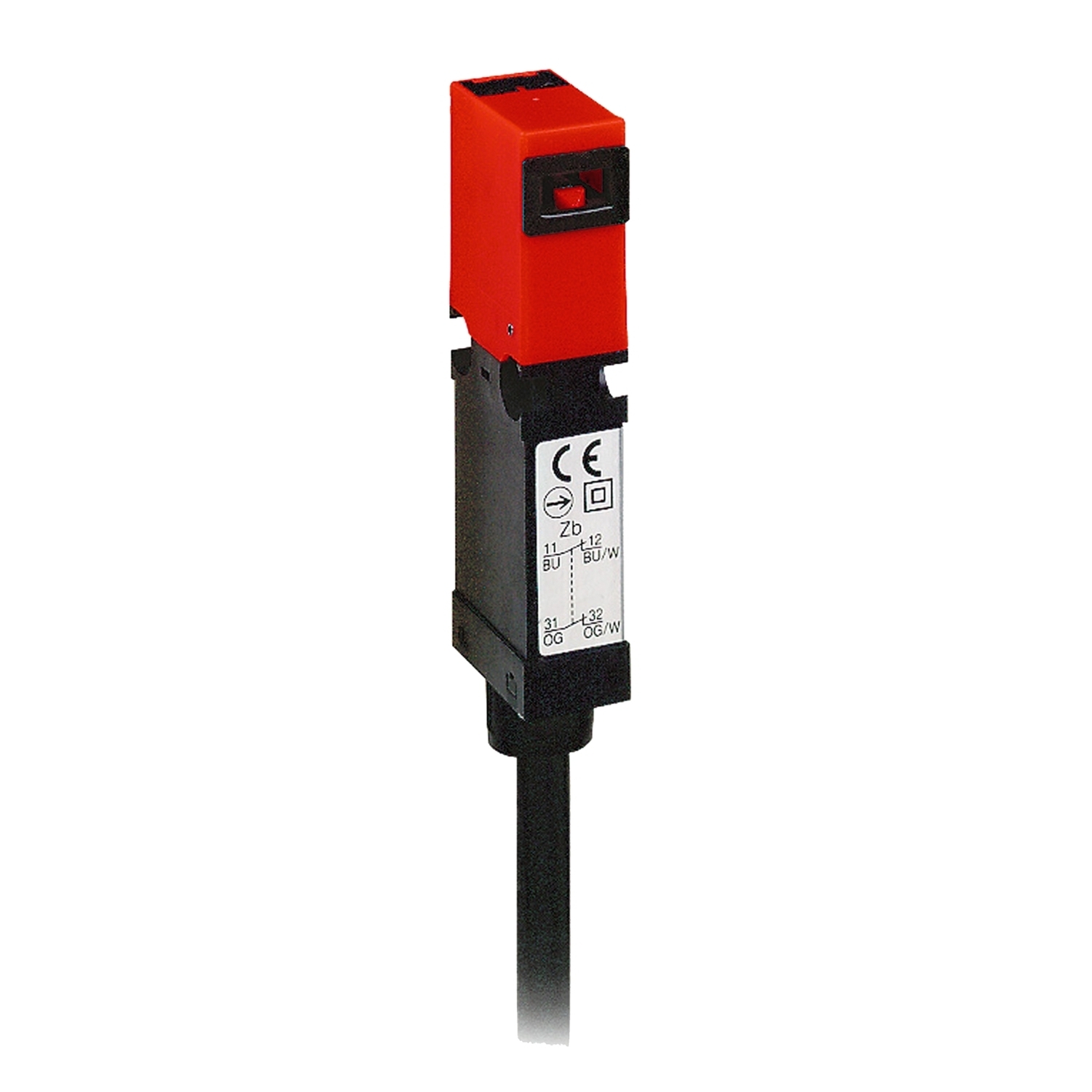

XCSMP79L2 Preventa Fixed Head Safety Interlock Switch, 300 V AC, 2.5 A, 50/60 Hz, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCSMP79L2
- UPC:
- 785901632214
- Item #:
- 638584
XCSMP79L2 Preventa Fixed Head Safety Interlock Switch, 300 V AC, 2.5 A, 50/60 Hz, 2 Poles
- MFR #:
- XCSMP79L2
- UPC:
- 785901632214
- Item #:
- 638584
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$154.15
each
This XCSMP Key Operated Safety Switch for guard doors has a fixed head and a robust red coated polyamide compact body with 2 meter pre-cabled, allowing for flexible installation. It has 2 normally closed simultaneous (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Manuals and Documentation
| Catalog Number | XCSMP79L2 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | Slow-break, simultaneous |
| Actuator | KEY |
| Application | KEY OPERATED FIXED HEAD |
| Connection | Pre-cabled |
| Contact Configuration | 2 NC |
| Enclosure | NEMA 4/4X/12 - IP67 |
| Insulation | Double insulated |
| Operating Cycles | 20 CYC/MN FOR MAXIMUM DURABILITY |
| Special Features | PLASTIC,WITHOUT LOCKING OF ACTUATOR |
| Standard | 50 GN 11 MS IEC 60068-2-27,6 GN 10-55 HZ)IEC 60068-2-6,CSA-CUL-UL,EN/IEC 60204-1-UL 508-CSA C22.2 NO 14-EN/IEC 60947-5-1-EN 1088/ISO 14119-EN/ISO 12100,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,CLASS II EN/IEC 61140 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859754&lang=en-us |
| UPC | 785901632214 |
| GTIN | 03389110107173 |
| Item Type | Safety switch |
| Size | 1.18 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1-0.75 A 240 V, AC-15, C300 EN/IEC 60947-5-1-1.5 A 120 V, AC-15, C300 EN/IEC 60947-5-1 |
