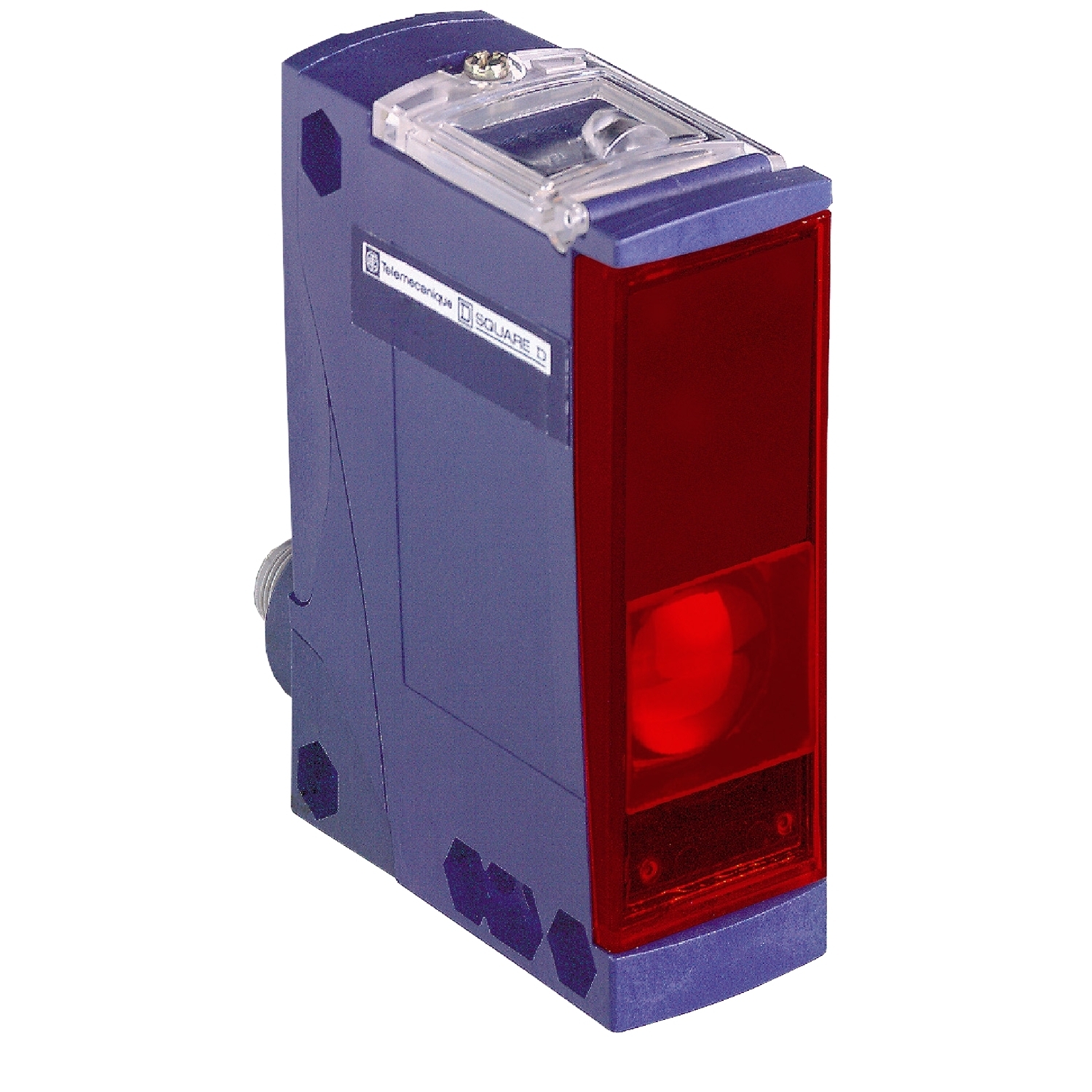

XUX0AKSAM12T OsiSense XU XUX Series Multimode Compact Photoelectric Sensor Transmitter, 40 m, Infrared Sensing Beam, 2 ms Response
- MFR:
- Telemecanique Sensors
- MFR #:
- XUX0AKSAM12T
- UPC:
- 785901582373
- Item #:
- 63825
XUX0AKSAM12T OsiSense XU XUX Series Multimode Compact Photoelectric Sensor Transmitter, 40 m, Infrared Sensing Beam, 2 ms Response
- MFR #:
- XUX0AKSAM12T
- UPC:
- 785901582373
- Item #:
- 63825
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This compact design single mode (thru-beam system) photo-electric transmitter has a PBT case. It has a supply voltage of 12V to 24V DC. This multi-mode rectangular photoelectric emitter has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Manuals and Documentation
| Catalog Number | XUX0AKSAM12T |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | - |
| Connection | 1 male connector M12, 4 pins |
| Enclosure | IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT |
| Operating Cycles | <= 250 Hz |
| Sensing Range | 40-40 M THRU BEAM NEED A RECEIVER,> 98.43 FT (30 M) |
| Special Features | 1 LED green)supply on |
| Standard | CE-CSA-UL,IP65 DOUBLE INSULATION IEC 60529-IP67 DOUBLE INSULATION IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=876144&lang=en-us |
| UPC | 785901582373 |
| GTIN | 03389110168037 |
| Item Type | General purpose multimode;Thru beam;Compact 92 x 71;Photo-electric sensor transmitter |
| Size | 3.03 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR) |
| Operating Temperature | -25-55 A Degrees C |
| Voltage Rating | 12...24 V DC reverse polarity protection |
