Discontinued

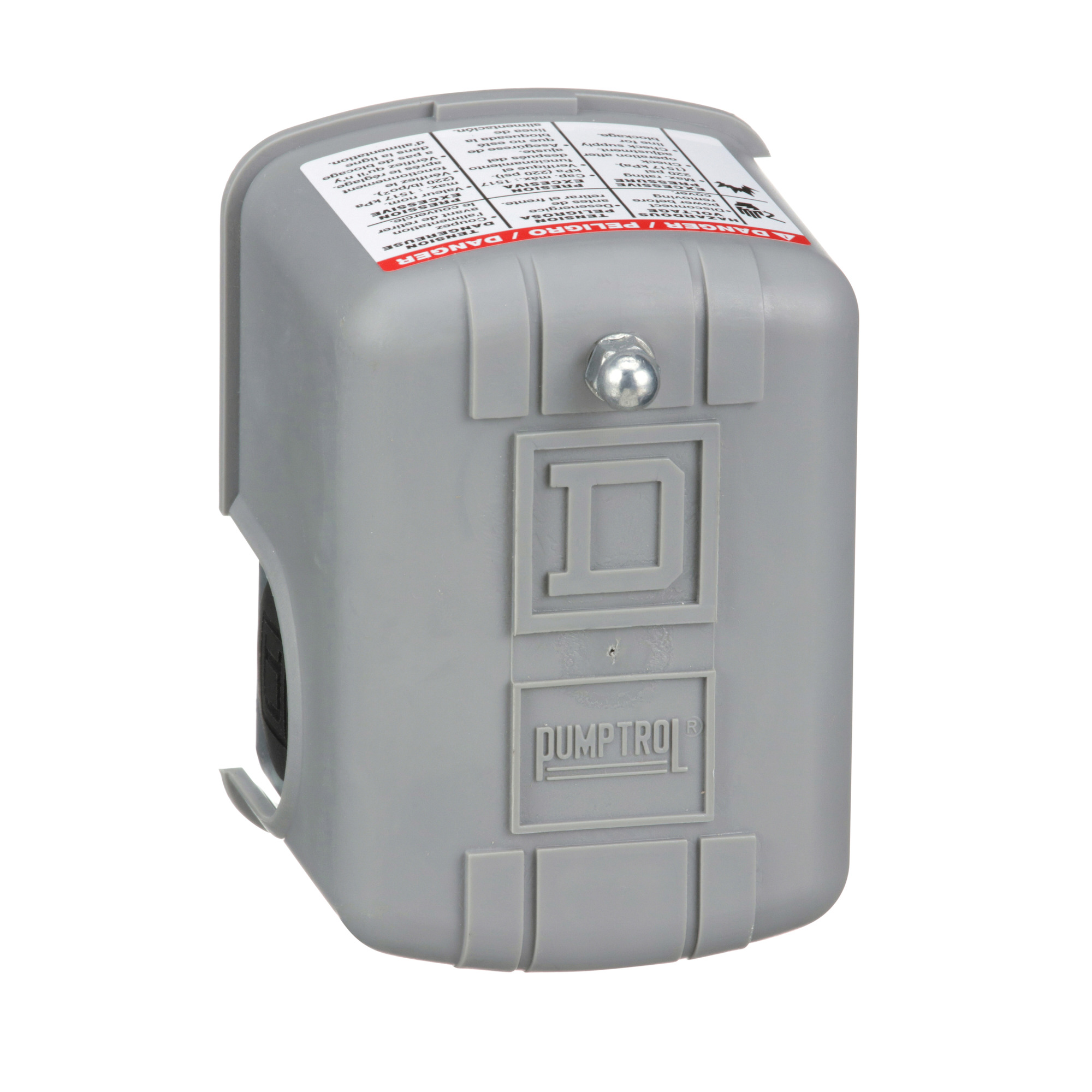

9013FHG13J52 Electro-Mechanical Type F Pressure Switch, 2NC DPST-DB Contact, 3/8 in NPSF/Screw Clamp Connection
- MFR:
- Schneider Electric
- MFR #:
- 9013FHG13J52
- UPC:
- 785901049647
- Item #:
- 636761
Discontinued
9013FHG13J52 Electro-Mechanical Type F Pressure Switch, 2NC DPST-DB Contact, 3/8 in NPSF/Screw Clamp Connection
- MFR #:
- 9013FHG13J52
- UPC:
- 785901049647
- Item #:
- 636761
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
air compressor switch 9013FH - fixed differential - Off at 125 psi - low hp
Manuals and Documentation
| Catalog Number | 9013FHG13J52 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | 1.5 KW 2 HP)230 V AC, 1 PHASE-1.1 KW 1.5 HP)115 V AC, 1 PHASE-1.5 KW 2 HP)115 V AC, 3 PHASE-2.2 KW 3 HP)230 V AC, 3 PHASE-0.75 KW 1 HP)460 V AC, 3 PHASE-0.75 KW 1 HP)575 V AC, 3 PHASE,CONTROL SMALL ELECTRICALLY DRIVEN AIR COMPRESSORS,REGULATION BETWEEN 2 THRESHOLDS |
| Contact Configuration | 2 NC, SNAP ACTION, DPST-DB, FORM YY |
| Contact Rating | A600 |
| Enclosure | NEMA 1 UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.375 INCH NPSF INTERNAL UL 508 |
| Special Features | - |
| Standard | CE-UL 508,CSA FILE LR25490-UL LISTED FILE E12158,IP20 IEC 60529 |
| UPC | 785901049647 |
| GTIN | 00785901049647 |
| Item Type | ELECTROMECHANICAL PRESSURE SWITCH,FIXED DIFFERENTIAL |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| Operating Temperature | -33-257 A Degrees F |
| System Pressure | 150 PSI |
