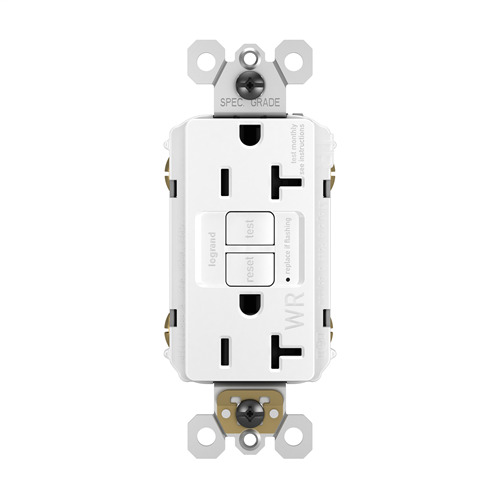

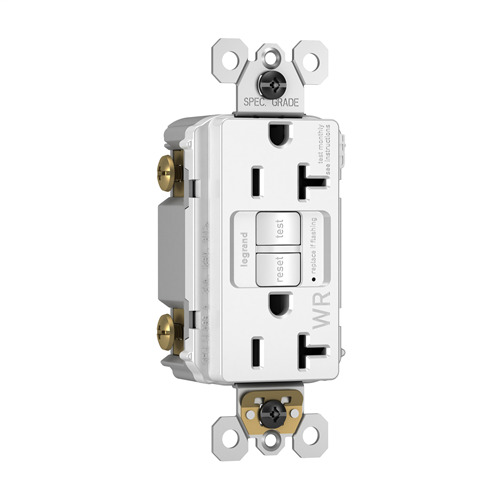

2097TRWRNAW radiant 20 Amp Duplex GFCI Receptacles with SafeLock Protection, NAFTA Compliant, White
2097TRWRNAW radiant 20 Amp Duplex GFCI Receptacles with SafeLock Protection, NAFTA Compliant, White
| Location | Available Qty |
|---|---|
| Available | Available to Order |
GFCI outlets from the radiant Registered Collection automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electric Code requirements for ground fault protection in the home, GFCI outlets make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. Also including tamper and weather* resistance, this model was designed for use on decks, patios, pool areas, and other outdoor living spaces. 20A outlets are ideal for use with larger appliances, as well as to meet regional requirements (Chicago, Canada). GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant Registered Collection, sold separately.
- Catalog Number
- 2097TRWRNAW
- Manufacturer
- Legrand-Pass & Seymour
- Brand
- Legrand-Pass & Seymour
- Warranty Description
- 1-Year Limited Warranty
- Country of Origin
- Mexico
- Made in USA
- No
- Actuator
- Control Circuit
- Amperage Rating
- 20
- Application
- Commercial;Residential
- Connection
- Back and Side Wire
- Frequency Rating
- 60 Hz
- Interrupt Rating
- 4 to 6 mA
- Material
- Thermoplatic
- Mounting
- Box
- Number of Gangs
- 1
- Number of Poles
- 2
- Special Features
- Pass & Seymour invented the GFCI receptacle, and at Legrand, we're constantly reinventing it to ensure the highest level of safety possible. From the most advanced self-testing device to audible alarms to nightlight combos, we're continuously resetting the bar on GFCI innovation and safety.
- Standard
- cULus, UL Listed, FSUL
- UPC
- 785007050141
- GTIN
- 00785007050141
- Item Type
- NAFTA-CompliantTamper-Resistant/Weather-Resistant 20A Self-Test GFCI
- Length
- 1.03
- Width
- 1.73
- Height
- 4.2
- Environmental Conditions
- 95% Humidity, UL 94 V2
- Operating Temperature
- -35 Degrees C to +66 Degrees C
- Trip Range
- 4 to 6 mA
- Trip Type
- .025 Second Nominal
- Voltage Rating
- 125
