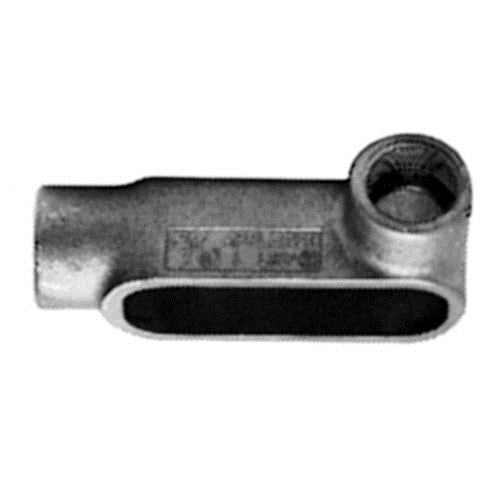

Conduit Outlet Body, Type LR, 2 in Hub, 2 Hubs, 50 cu-in Capacity, Form 7 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Cast Aluminum, Epoxy Powder Coated, 8.13 in L x 4.06 in W x 4.25 in H Dimensions
MFR: Appleton Electric
MFR #: LR67SA
UPC: 781381600965
Item #: 632976
Conduit Outlet Body, Type LR, 2 in Hub, 2 Hubs, 50 cu-in Capacity, Form 7 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Cast Aluminum, Epoxy Powder Coated, 8.13 in L x 4.06 in W x 4.25 in H Dimensions
MFR #: LR67SA
UPC: 781381600965
Item #: 632976
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$247.78
each
FM7 UNILETS Type LR Conduit Outlet Body, Hub Size: 2 IN, Form: 7, Length: 8.13 IN, Width: 4.06 IN, Material: Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1, For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
Manuals and Documentation
- Catalog Number
- LR67SA
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
- Connection
- Tapered Female Threaded
- Finish
- Epoxy Powder Coat
- Form
- 7
- Hub Size
- 2 IN
- Material
- Aluminum
- Special Features
- Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 50 CU-IN as per NEC 314.16(A)
- Standard
- UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
- UPC
- 781381600965
- GTIN
- 00781381600965
- Item Type
- Type LR Conduit Outlet Body
- Length
- 8.13
- Length UOM
- Inch
- Width
- 4.06
- Width UOM
- Inch
