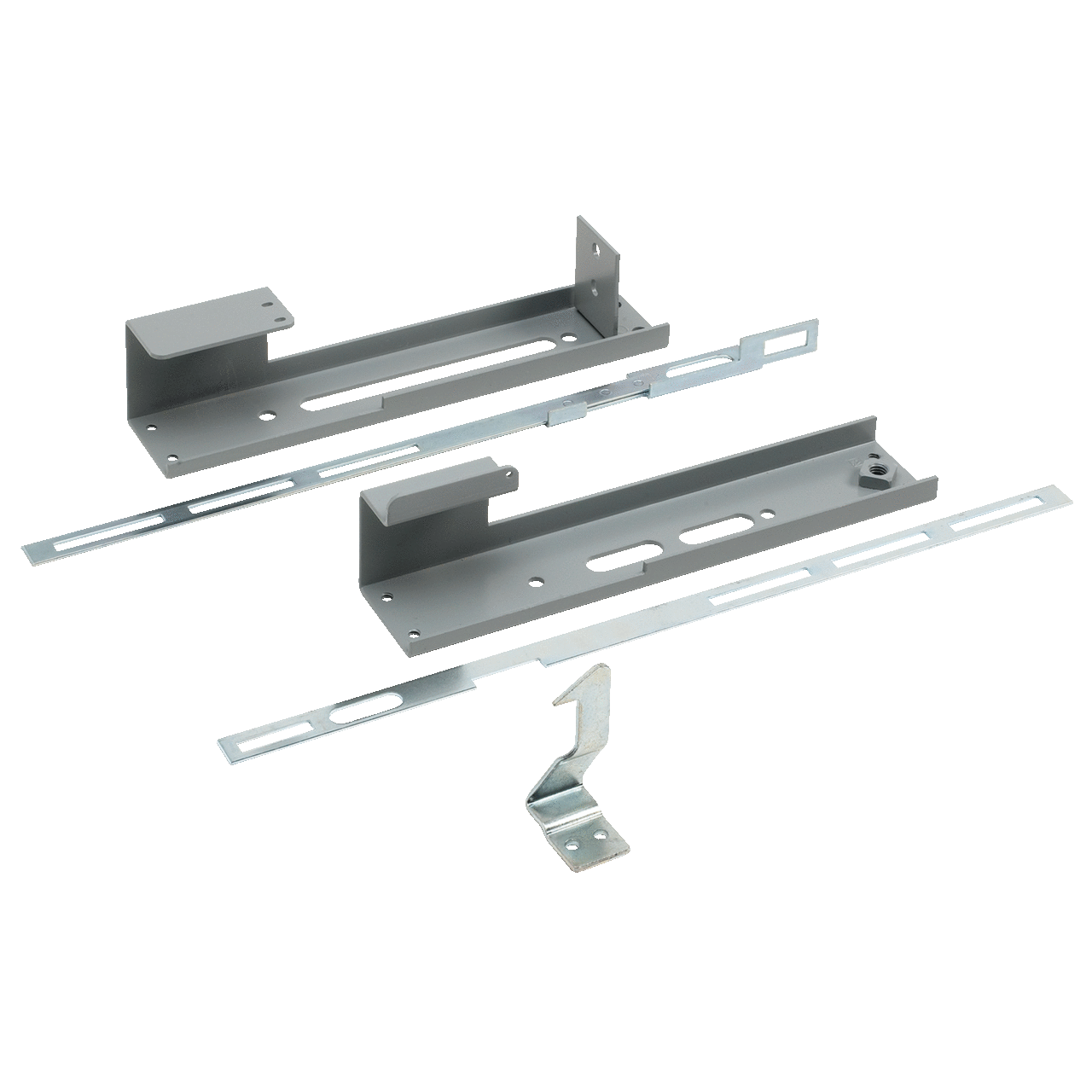

ECHV ADY Enclosure Operator Adapter, For Use With A21, A28, A34 and A4L3D Series NEMA 4/12 Enclosures, Steel

MFR:
nVent
MFR #:
ECHV
UPC:
783510280932
Item #:
631560

Availability

Location Available Qty
Available Available to Order
$589.96 each

Used on all nVent HOFFMAN Type 4 and 12 disconnect enclosures with a universal flange cutout. An operator adapter is required to install a disconnect in Bulletin A21, A28, A34, A35, and A4L3D HOFFMAN enclosures that have a universal cutout. Operator adapters include an adapter plate and additional components needed to interlock the master door with the disconnect operating mechanism. Installation instructions are included with each operator adapter. Each brand and type of disconnect requires a different operator adapter. Be sure to select the correct operator adapter and enclosure for the disconnect device selected. A 400A (or greater) disconnect switch and 600A (or greater) circuit breaker require the large handle. A 200A (or less) disconnect switch and 400A (or less) circuit breaker require a small handle.

Manuals and Documentation
Catalog Number ECHV
Manufacturer nVent
Brand nVent HOFFMAN
Country of Origin United States
Made in USA Yes
Application Controls and Drives; Arc Flash Safety; Power Distribution
Color Gray
Consist of Operator Adapter
Material Mild Steel
UPC 783510280932
GTIN 00783510280932
Item Type Other Accessories
