Mersen

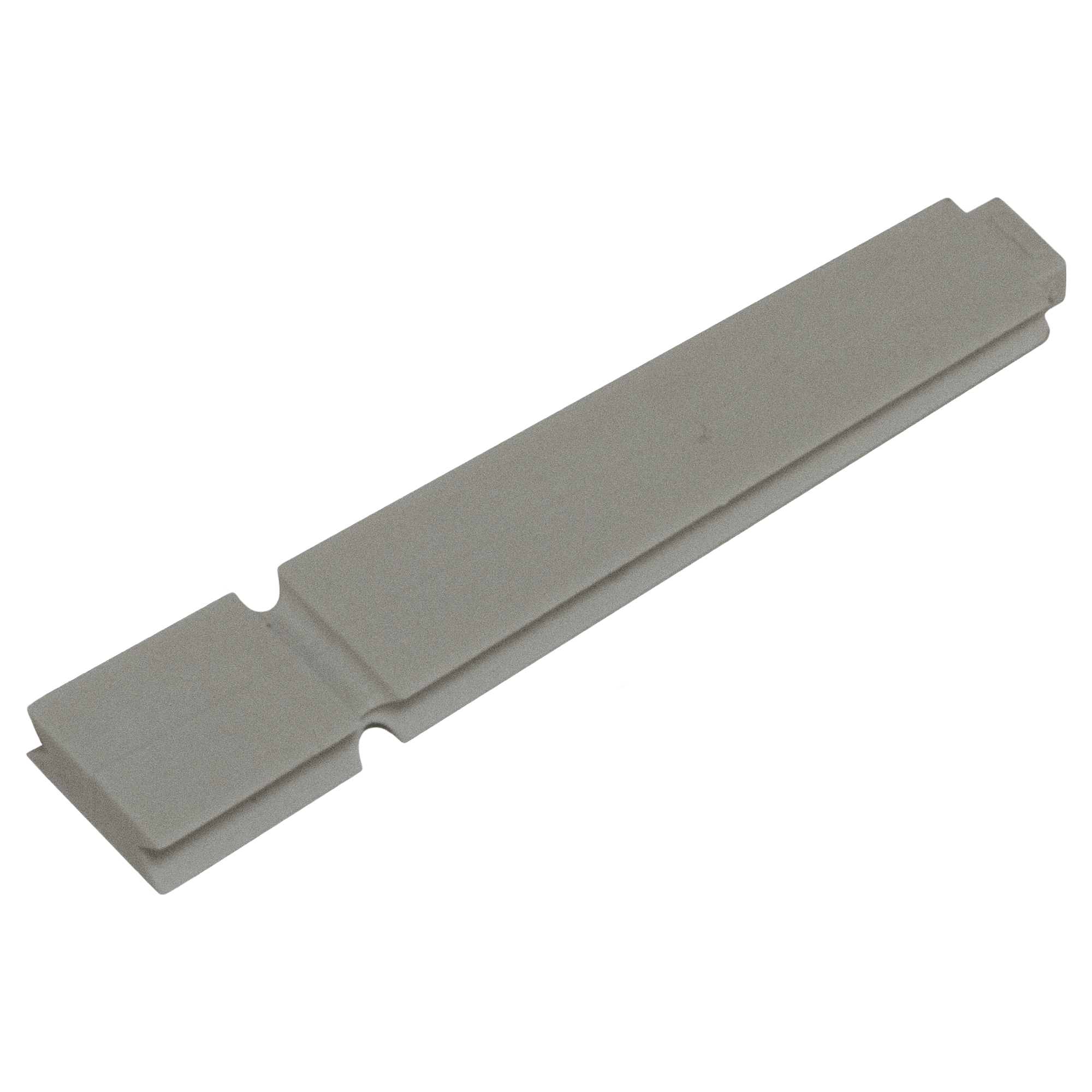

FSPIN1 Accessory Pin, For Use With Finger Safe Power Distribution Block

MFR:
Mersen
MFR #:
FSPIN1
UPC:
782001319700
Item #:
62920

Availability

Location Available Qty
Available 20
$2.47 each

FSPDB Series UL 1059 Finger-Safe Power Distribution Block

Manuals and Documentation
Catalog Number FSPIN1
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Application Splicing cables Splitting primary power into a variety of secondary circuits Providing a fixed junction tap-off point
Special Features Finger-safe protection: Fully insulated block ensures touch safe isolation of live parts. Recessed termination screws and wire openings provide IP20 grade protection and qualify as “fingersafe” per IEC 529 Compact modularity: Single or multiple pole configurations in the most compact footprint. Allows users to build smaller or higher density panels Snap on DIN-rail mounting: Sizes 1 to 4 feature integral DIN rail adaptors allowing for quick and easy installations on 35mm DIN rail yielding lower installed costs Captive termination screws: Unique channel design ensures captive metric wire termination screws. Screws can never be lost Available accessories: For multi-pole panel mounting, simply snap in pins for rigid fit. Cap plugs provide the ability to maintain touch safety on unused openings. Circuit identification markers simply snap into blocks to ID circuits. End anchors provide rigid end stops Multiple wire ratings: Provide users more versatility by offering capability of using multiple conductors in #2 and 2/0 openings AC & DC ratings: FSPDB1, 2, and 3 have been evaluated for use at 1500V (AC or DC) provided they are installed on DIN-rails only and with proper barriers and spacing between poles of opposite polarity
Standard UL Recognized Component Guide XCFR2, File E73571 CSA Certified: Class 6228, File 69363 IEC-947-7-1, 529, 68-2-6, CE Marked
UPC 782001319700
GTIN 00782001319700
Item Type Finger-Safe (IP20) Power Distribution Blocks
Size 2.05 x 0.14 x 0.14
Voltage Rating 600
