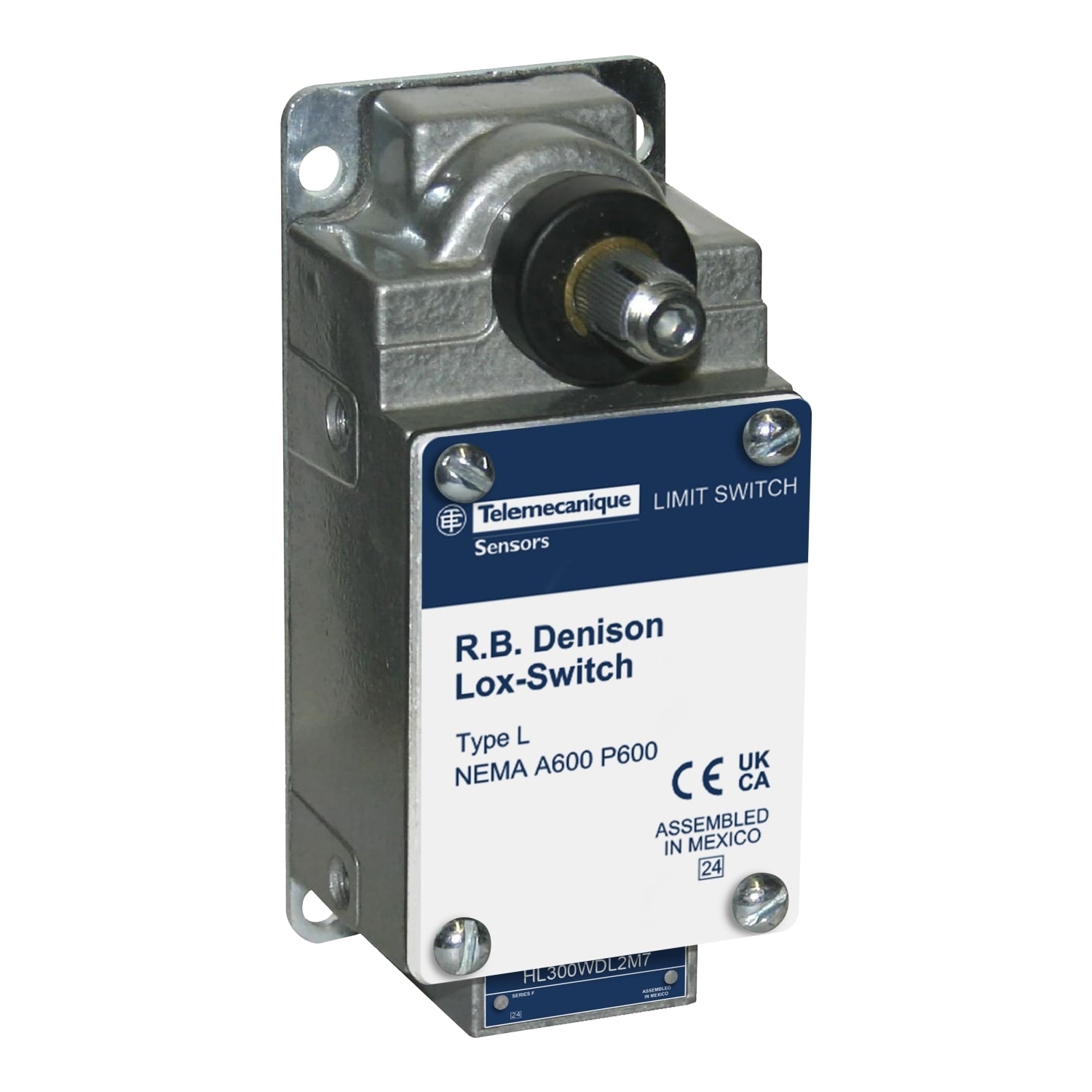

HL300WS2M2 L300 Severe Duty Foundry Limit Switch, 600 V, 12 A, 1NC+1NO, Form Zb DPDT-DB Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- HL300WS2M2
- UPC:
- 785901675808
- Item #:
- 628388
HL300WS2M2 L300 Severe Duty Foundry Limit Switch, 600 V, 12 A, 1NC+1NO, Form Zb DPDT-DB Contact, 2 Poles
- MFR #:
- HL300WS2M2
- UPC:
- 785901675808
- Item #:
- 628388
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,000.00
each
LIMIT SWITCH
Manuals and Documentation
| Catalog Number | HL300WS2M2 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | From right;CCW;Lateral approach;Snap action |
| Actuator | spring return without operating lever |
| Amperage Rating | 20 |
| Application | Foundry switch |
| Connection | Screw-clamp terminals AWG 22...AWG 12 |
| Contact Configuration | Form Zb |
| Contact Rating | NEMA A600/P600 |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250 |
| Mounting | By The Body |
| Number of Poles | 2 |
| Special Features | -,FIXED |
| Standard | 10 GN 10-55 HZ)IEC 60068-2-6,30 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| UPC | 785901675808 |
| GTIN | 00785901675808 |
| Item Type | Limit switch |
| Size | 2.03 |
| Operating Temperature | 0-350 A Degrees F |
| Voltage Rating | 600V |
