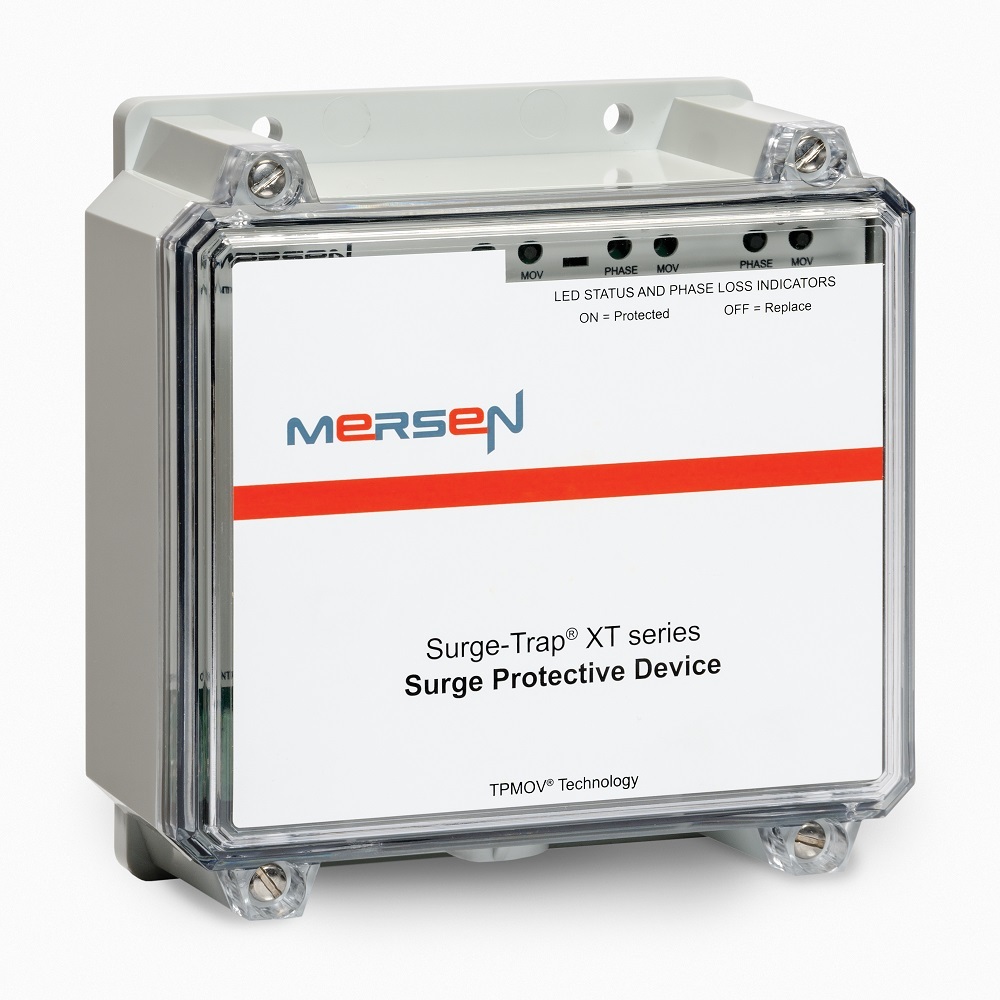

The most advanced of the STX series, the Surge-Trap Type 1 STXT Series comes standard with EMI/RFI Filtering and surge capacities up to 200kA. The STXT features TPMOV technology inside making it the safest product available. With line or load side installation flexibility, this unit is a great fit from the service entrance all the way down to each distribution and/or branch panel. 480Y/277V, L-G, L-L, L-N, N-G, 3-Phase Wye, LED and Remote Audible Alarm 200 kA per phase
Manuals and Documentation
| Catalog Number | STXT480Y20A |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Suitable for any Type 1 or 2 SPD application |
| Connection | Box |
| Insulation | Polycarbonate |
| Mounting | Wall |
| Short Circuit Rating | 200 KA |
| Special Features | Designed with the industry leading Mersen TPMOV® Technology (internally fused) Premium 200kA surge capacity for longer life and higher single impulse withstand Includes EMI/RFI filter for cleaner attenuation LED status indicator (ON = Good, OFF = Replace) LED phase loss indicators (ON = Operational, OFF = Maintenance Required) NEMA 4X enclosure for outdoor or indoor use Mounting hub and mounting feet for installation flexibility Optional audible alarm and remote dry contacts For use in ANSI/UL Type 1 or 2 SPD installations Up to 10 Modes of Protection (L-N, L-L, L-G, N-G) 10-year warranty |
| Standard | ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793 CSA C22.2, Type 1 SPD ANSI/IEEE C62.41.1, C62.41.2, C62.45 UL96A Lightning Protection |
| UPC | 782001471163 |
| GTIN | 00782001471163 |
| Type of Indicators | LED and Remote Audible Alarm |
| Voltage Rating | 480Y/277 |
