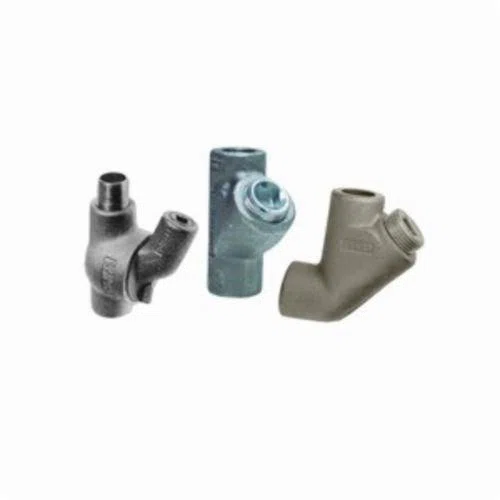

EYS3SA Condulet Dust-Ignitionproof Explosionproof Conduit Sealing Fitting, 1 in FNPT, For Use With Vertical Position Conduit System, Copper-Free Aluminum, Natural
- MFR:
- Eaton
- MFR #:
- EYS3 SA
- UPC:
- 782274275741
- Item #:
- 62216
EYS3SA Condulet Dust-Ignitionproof Explosionproof Conduit Sealing Fitting, 1 in FNPT, For Use With Vertical Position Conduit System, Copper-Free Aluminum, Natural
- MFR #:
- EYS3 SA
- UPC:
- 782274275741
- Item #:
- 62216
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$113.97
each
Crouse-Hinds series EYS and EZS explosionproof sealing fittings restrict the passage of gases, vapors or flames from one portion of the electrical installation to another, limit explosions to the sealed off enclosure, and limit pre-compression or pressure piling in conduit systems. EYS sealing fittings are available for installation in either vertical only or in both horizontal or vertical positions. They are available in a variety of materials, including Feraloy iron alloy and/or ductile iron, copper-free aluminum and stainless steel. EZS sealing fittings are designed for installation at any angle; the covers with opening for sealing compound can be properly positioned to accept the compound.
Manuals and Documentation
Features
- Minimum turning radius
- Large openings with threaded closures to provide easy access to conduit hubs for making dams
- Integral bushings in conduit hubs to protect conductor insulation from damage
- Taper tapped hubs to ensure ground continuity
- Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures
- Limit explosions to the sealed OFF enclosure
- Limit pre-compression or pressure piling in conduit systems
- Feraloy® iron alloy and/or steel plugs, steel removable nipples
- 2-3/8 in turning radius
| Manufacturer Part Number | EYS3 SA |
| Brand | Crouse-Hinds |
| Manufacturer | Eaton |
| UPC | 782274275741 |
| Country Of Origin | MX |
| Dimensions | 4-5/16 in L x 1-3/4 in W |
| Finish | Natural |
| Material | Copper-Free Aluminum |
| Mounting Type | Surface |
| Series | EYS |
| Suitable For Use With | Vertical Position Conduit System |
| Type | Dust-Ignitionproof Explosionproof |
| Size | 1 in FNPT |
| Manufacturer Item Status | Discontinued |
| Country | USA |
| Warranty | Limited |
| Standards Approvals | CSA C22.2 | Class I, Div 1, 2, Groups B, C, D Class II, Div 1, Groups E, F, G Class II, Div 2, Groups F, G Class III | UL 1203 | UL 886 |
| Application | Industry Facilities and Factories Applications |
