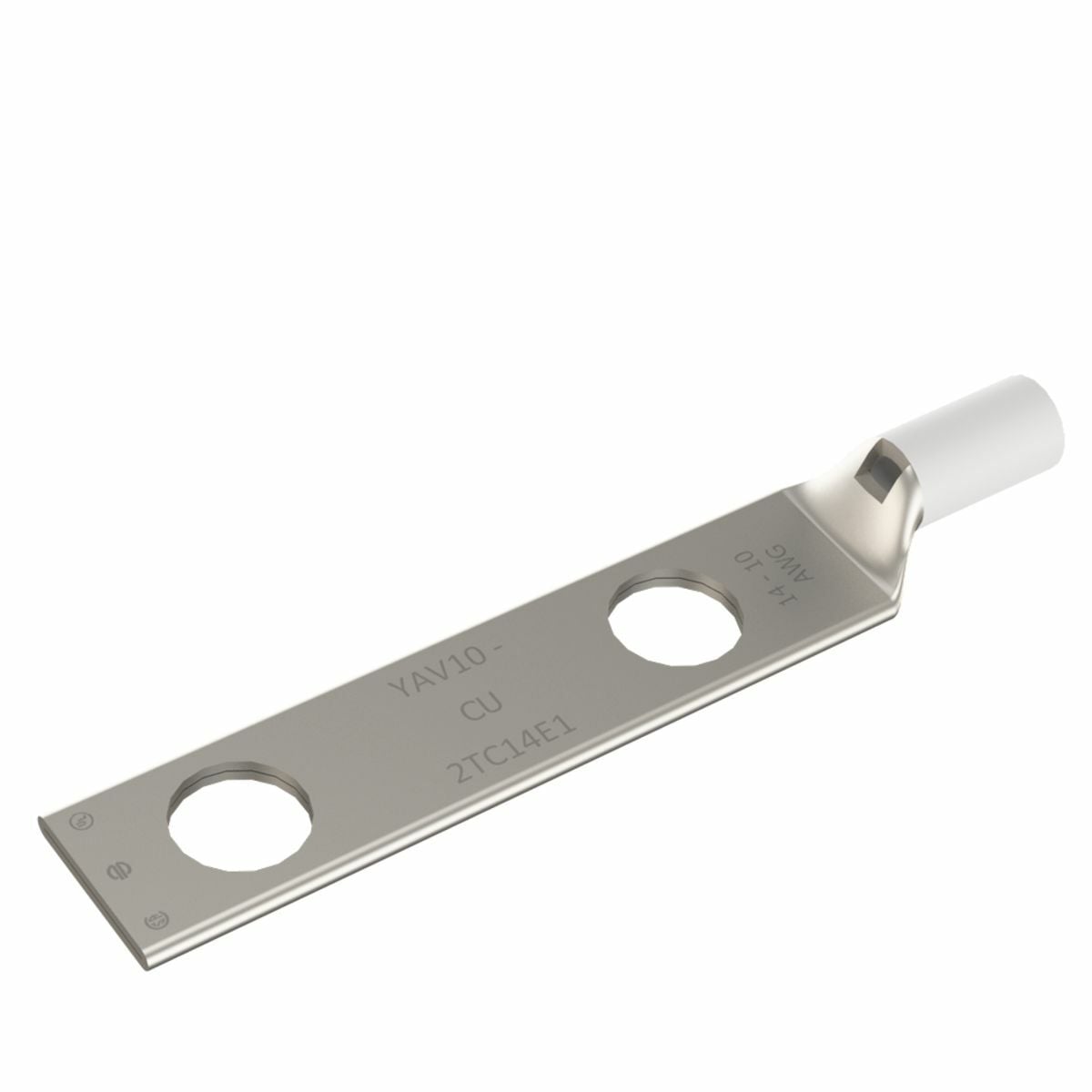

YAV102TC14E1 YAV-2TC 2-Hole Compression Lug With Inspection Window, 14 to 10 AWG, 12 to 10 AWG Solid/Stranded Copper Conductor, Die Code: 2 Scribe, 1/4 in Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAV102TC14E1
- UPC:
- 781810022139
- Item #:
- 61754
YAV102TC14E1 YAV-2TC 2-Hole Compression Lug With Inspection Window, 14 to 10 AWG, 12 to 10 AWG Solid/Stranded Copper Conductor, Die Code: 2 Scribe, 1/4 in Stud, Copper
- MFR #:
- YAV102TC14E1
- UPC:
- 781810022139
- Item #:
- 61754
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$22.45
each
Manuals and Documentation
| Catalog Number | YAV102TC14E1 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y8MRB-1 Tool, (1), Die Index: 2 SCRIBE, Wire Strip Length: 7/16 IN |
| Standard | UL 486A-486B |
| UPC | 781810022139 |
| GTIN | 00781810022139 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
