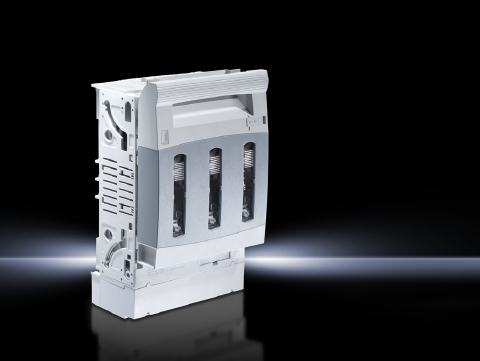

9345400 Fuse Holder, 600 V AC, 201 to 400 A, 3-Pole, 3-Phase, Bus Mounting, Box Terminal, 4/0 AWG to 600 kcmil, For Use With 5/10 mm Cross Section H Busbar, 60 mm Center-to-Center Spacing Bus System, 54 mm Phi x 181 mm L Class J Fuses, Pale Gray
- MFR:
- Rittal
- MFR #:
- 9345400
- UPC:
- 639889853560
- Item #:
- 61657
9345400 Fuse Holder, 600 V AC, 201 to 400 A, 3-Pole, 3-Phase, Bus Mounting, Box Terminal, 4/0 AWG to 600 kcmil, For Use With 5/10 mm Cross Section H Busbar, 60 mm Center-to-Center Spacing Bus System, 54 mm Phi x 181 mm L Class J Fuses, Pale Gray
- MFR #:
- 9345400
- UPC:
- 639889853560
- Item #:
- 61657
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,892.76
each
Fuse holders, 61 A to 400 A, For busbar systems, material: Polyamide (PA 6), Fire protection corresponding to UL 94-V0, Contact tracks: Electrolytic copper, silver-plated, color: Chassis: RAL 7035, Cover: RAL 7035/7001, description: 3-pole, for busbar systems with 60 mm bar centre distance.
| Catalog Number | 9345400 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Color | RAL 7035 (Chassis), RAL 7035/7001 (Cover) |
| Connection | Box Terminal |
| Material | Polyamide (PA 6) |
| Mounting | Bus Mounting |
| Phase | 3 |
| Special Features | Features: Fire Protection |
| Standard | UL 94-V0 Listed, UL Recognized, UL 4248-1, UL 4248-8, CSA C22.2 No. 4248.1-07, CSA C22.2 No. 4248.8-07 |
| UPC | 639889853560 |
| GTIN | 00639889853560 |
| Item Type | Fuse Holder |
| Size | 13 IN (H) x 9.8 IN (W) x 130 MM |
| Voltage Rating | 600 |
