6EP19612BA21 4-Channel Selectivity Module, 24 V DC Input, 24 V DC Output, 40 A Input, 10 A Output
- MFR:
- Siemens
- MFR #:
- 6EP19612BA21
- UPC:
- 662643533286
- Item #:
- 615046
6EP19612BA21 4-Channel Selectivity Module, 24 V DC Input, 24 V DC Output, 40 A Input, 10 A Output
- MFR #:
- 6EP19612BA21
- UPC:
- 662643533286
- Item #:
- 615046
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

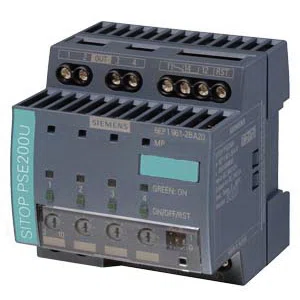

SITOP PSE200U 10 A selectivity module 4-channel input: 24 V DC/40 A output: 24 V DC/4x 10 A threshold adjustable 3-10 A with common signaling contact The SITOP PSE200U selectivity module is the optimum enhancement for all 24 V power supplies to distribute the load current to several feeders and to monitor it. Overloads and short-circuits in one or more feeders are detected reliably. The electronics permit brief current peaks caused, for example, by high inrush currents, but disconnect feeders in the event of an extended overload. This is ensured even on high-resistance lines and in the case of creeping short-circuits. The intact feeders continue to besupplied with 24 V on an absolutely interruption- and reaction-free basis and plant downtimes are minimized. Signaling of the faulty feeder takes place by the LEDs on the device as well as via group signaling contact. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.
Manuals and Documentation
Features
- Evaluation via free of charge SIMATIC S7 or SIMOTION function blocks or via LOGO! software for modules with single channel signaling
- 4 load feeders per module with individually adjustable response threshold from 0.5 to 3 A or 3 to 10 A for each output
- Voltage measuring points for output currents, disconnection of load circuit is not required
- 3-color LED for fast on site fault localization
- 2-versions for remote diagnostics group signaling contactor single channel signaling
- Simple configuration thanks to individual setting of maximum current for every output using potentiometers
- Remote reset possible from a central location
- Sequential connection of feeders to reduce total inrush current
- Sealable transparent cover over adjusters for currents and times protects against maladjustment
- Versions with power limitation of the outputs to 100 VA
- Simple commissioning thanks to manual switch on/off of outputs
- Reliable shutdown in case of overload regardless of cable lengths or cable cross-sections
- Library for visualization in SIMATIC pcs 7
| Manufacturer Part Number | 6EP19612BA21 |
| Brand | Siemens |
| Manufacturer | Siemens |
| UPC | 662643533286 |
| EAN | 4025515152668 |
| Country Of Origin | AT |
| Enclosure Type | IP20 |
| Mounting Type | DIN Rail |
| Temperature Rating | 0 to 60 deg C |
| Type | 4-Channel |
| Alternative Part Number | 6EP1961-2BA21 | 11024855 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | RoHS Compliant | CE Certified | UL Recognized | UL 2367 File No. E328600 | cULus Listed | UL 508 File No. E197259 | CSA C22.2 File No. 107.1 File No. E197259 | DNV-GL Approved | ABS Approved | EN 55022 Class B | EN 61000-6-2 |
| Input Amperage | 40 |
| Input Voltage | 24 V DC |
| Output Amperage | 10 |
| Output Voltage | 24 V DC |
| Terminal Type | Threaded |
