Telemecanique

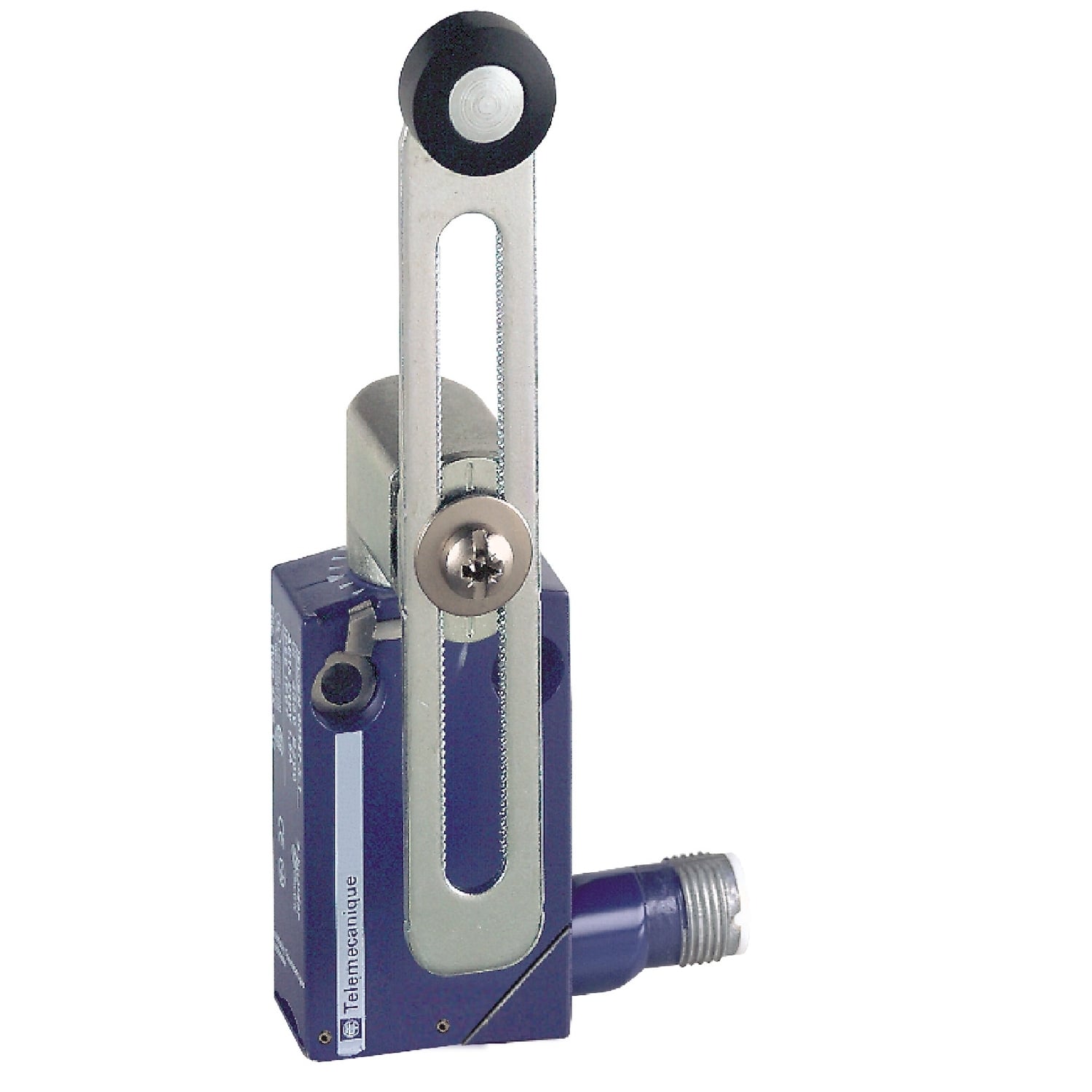

XCMD2145C12 OsiSense Heavy Duty Miniature Modular Standard Limit Switch, 240 V AC, 250 V DC V AC, 4 A, Spring Return/Roller Lever/Adjustable Lever Arm Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCMD2145C12
UPC:
785901589129
Item #:
609976

Availability

Location Available Qty
Available Available to Order
$124.44 each

Limit switch, Limit switches XC Standard, XCMD, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, M12

Manuals and Documentation
Catalog Number XCMD2145C12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Lateral approach, 2 directions;Snap action;By 30 Degrees cam
Actuator Spring return roller lever thermoplastic variable length
Amperage Rating 4
Application MINIATURE VARIABLE
Connection Male connector M12, 5 pins
Contact Configuration 1 NC + 1 NO
Enclosure NEMA 1/2/4X/6/6P/12/13 IP66/67/68
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features METAL,PLUG-IN BODY
Standard 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CCC-UL-CSA,EN/IEC 60947-5-1-UL 508-CSA C22.2 NO 14-EN/IEC 60204-1,IK06 EN 62262,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529,CLASS I IEC 61140-CLASS I NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857758&lang=en-us
UPC 785901589129
GTIN 03389110221367
Item Type Limit switch
Size 0.63
Operating Temperature -25-70 A Degrees C
Voltage Rating 0.22 A 50 V, DC-13 EN/IEC 60947-5-1 APPENDIX A-3 A 50 V, AC-15 EN/IEC 60947-5-1 APPENDIX A
