Discontinued
AL800M23K PowerPact MasterPact Mechanical Lug Kit, 8 to 1/0 AWG, 14 to 1/0 AWG, For Use With 800 A M and P Frame Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- 9013GHG5J62X
- UPC:
- 785901432920
- Item #:
- 60874
Discontinued
AL800M23K PowerPact MasterPact Mechanical Lug Kit, 8 to 1/0 AWG, 14 to 1/0 AWG, For Use With 800 A M and P Frame Circuit Breaker
- MFR #:
- 9013GHG5J62X
- UPC:
- 785901432920
- Item #:
- 60874
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

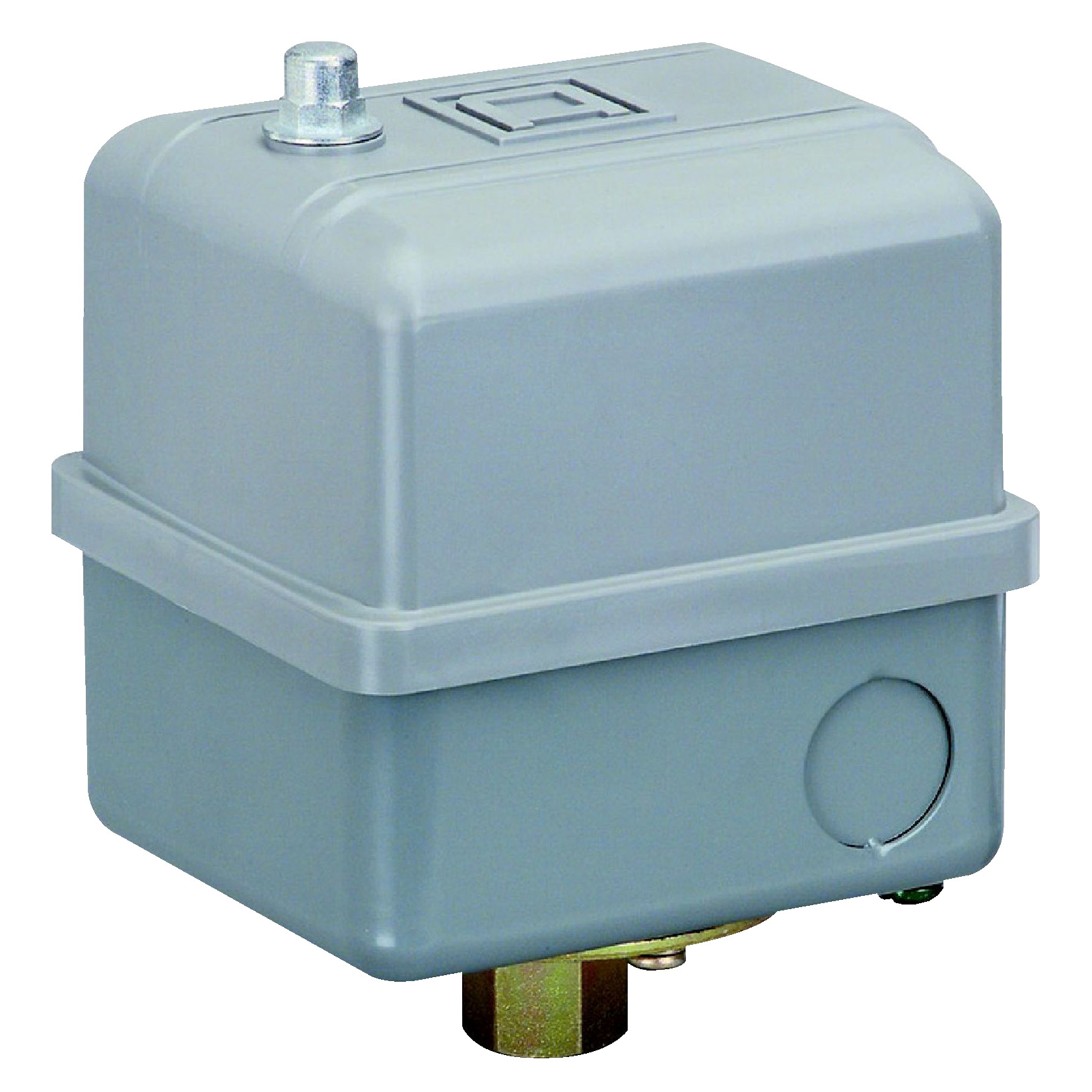

pump or compressor switch 9013GH - adjustable diff. - 140-175 psi
| Catalog Number | 9013GHG5J62X |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty: 18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Control electrically driven water pumps and air compressors;Power circuit;Regulation between 2 thresholds |
| Contact Configuration | 2 NC, snap action, DPST-DB, Form YY |
| Enclosure | NEMA 1 UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.25 INCH NPSF INTERNAL UL 508 |
| Special Features | 2-way pressure release valve |
| Standard | CSA FILE LR25490-UL LISTED FILE E12158,IP20 IEC 60529,UL 508-NSF ANSI 372-CE |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=392541&lang=en-us |
| UPC | 785901432920 |
| GTIN | 00785901432920 |
| Item Type | Electromechanical pressure switch;Adjustable differential |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| Operating Temperature | -33-257 A Degrees F |
| System Pressure | 250 PSI 32-215 PSI) |
