Square D™

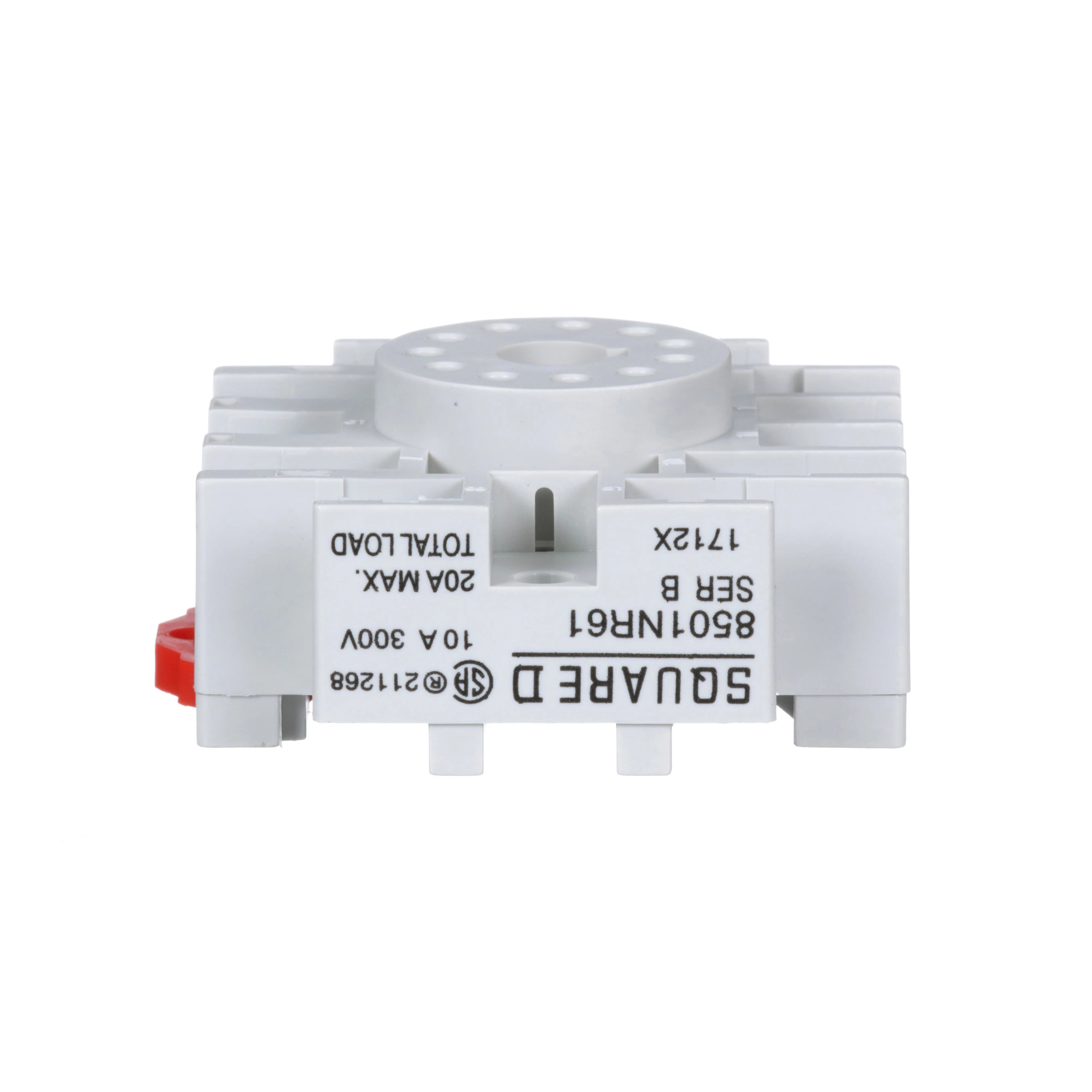

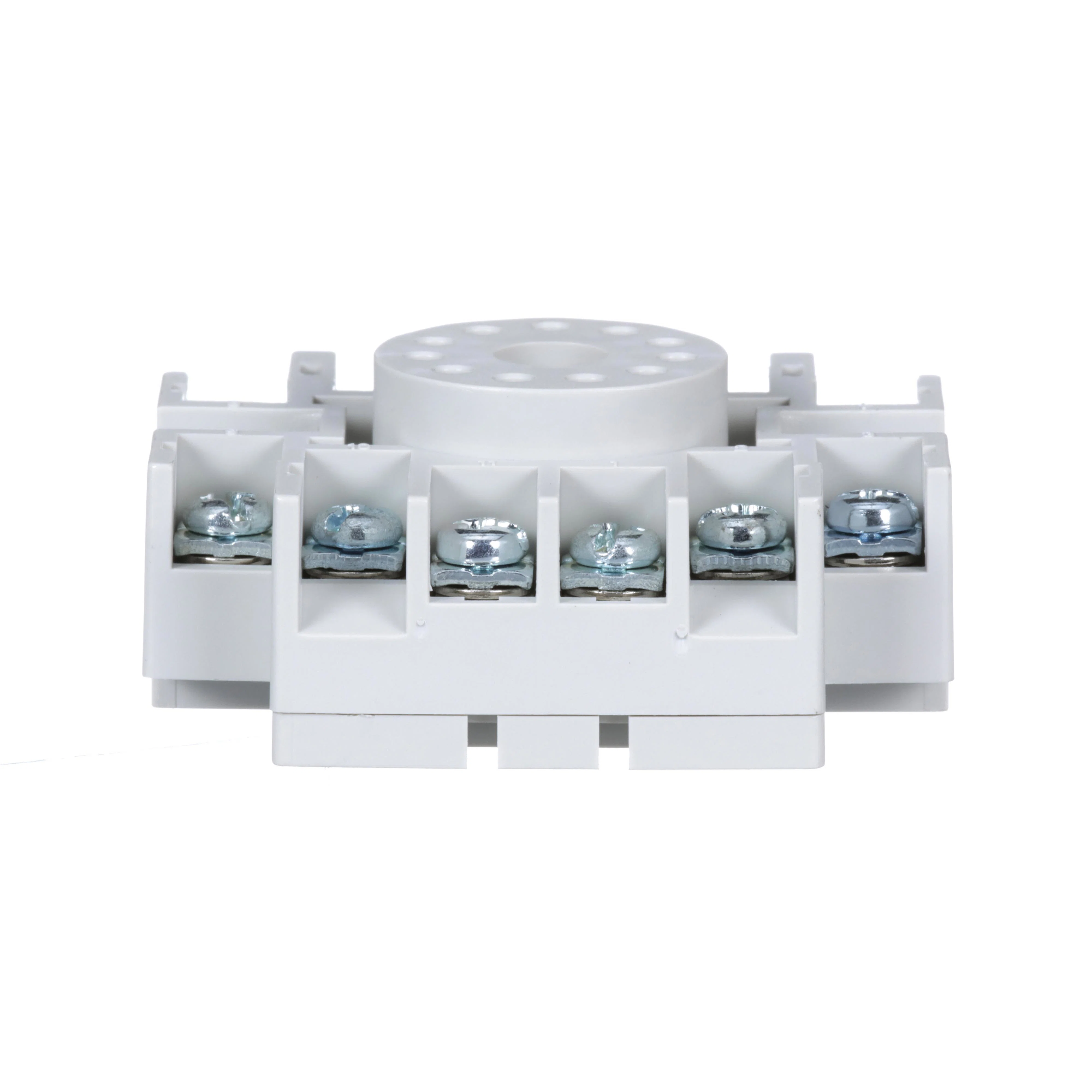

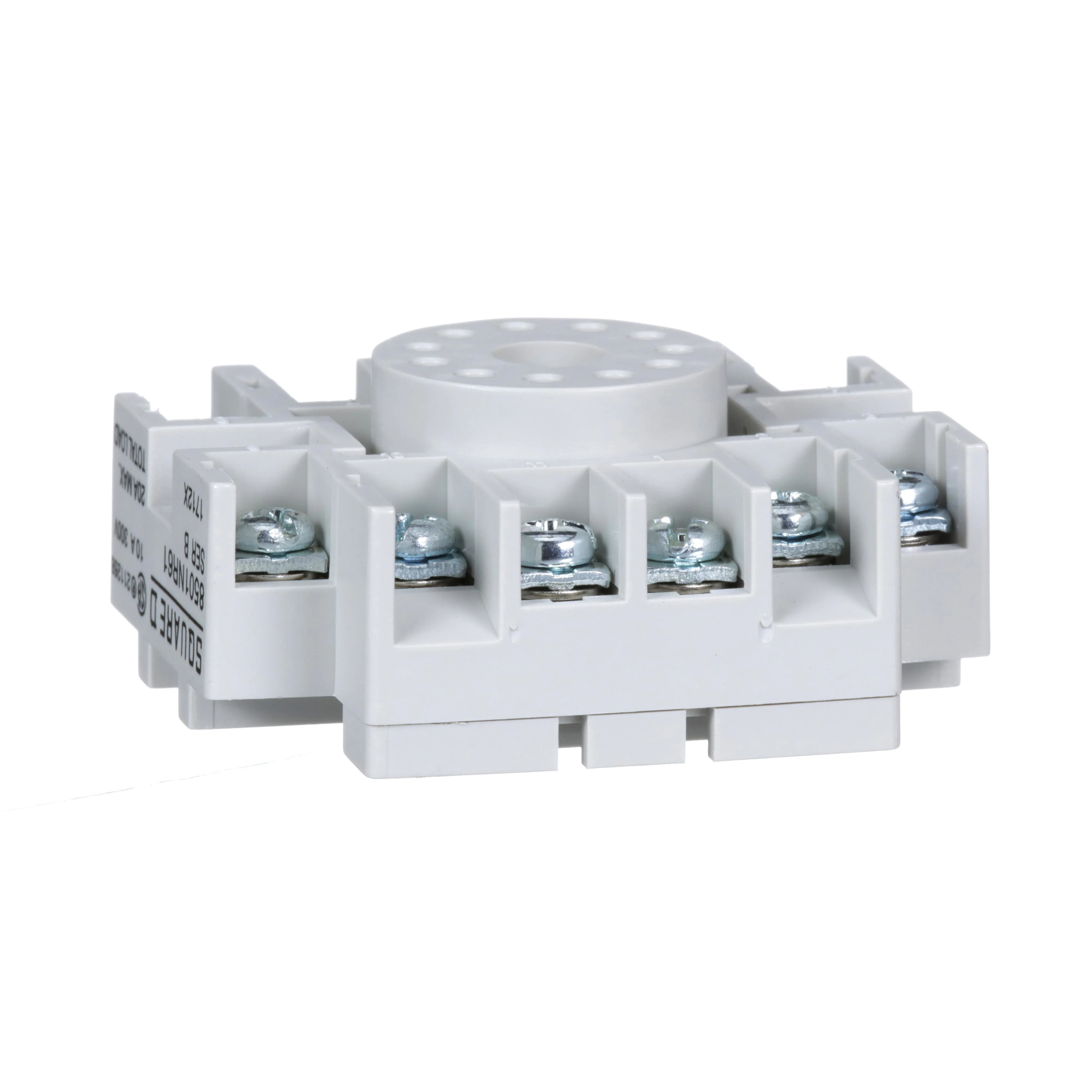

8501NR61B Type K Relay Socket, 300/600 V AC, 5 to 15 A, For Use With Class 8501 Series Miniature Plug-In Relay, 11 Pin

MFR:
Schneider Electric
MFR #:
8501NR61B
UPC:
785901006022
Item #:
60760

Availability

Location Available Qty
Available 7 ea
$32.88 each

8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR13 and 8501KPDR13 relays and 9050JCK timers will plug into this relay socket which is designed for 11 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To make wiring easier the terminals are not stacked. 8501NR plug in relay sockets are UL component recognized and CSA certified. These relay sockets are packed with ten sockets per box to make it quicker to get the sockets out on the packing and to reduce packing waste.

Manuals and Documentation

Features

  • Tubular pin shape
Manufacturer Part Number 8501NR61B
Brand Square D™
Manufacturer Schneider Electric
UPC 785901006022
EAN 0785901006022
Country Of Origin US
Amperage Rating 5 to 15 A
Dimensions 4.4 in W x 2.5 in D x 5 in H
Mounting Type DIN Rail/Panel
Series 8501N
Suitable For Use With Class 8501 Series Miniature Plug-In Relay
Type Type K
Voltage Rating 300/600 V AC
Alternative Part Number 8140249
Manufacturer Item Status Active
Country USA
Warranty 18 Months
Standards Approvals RoHS Compliant | CE Certified | CSA Certified | UL Listed | PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Number Of Pins 11
Terminal Type Screw
