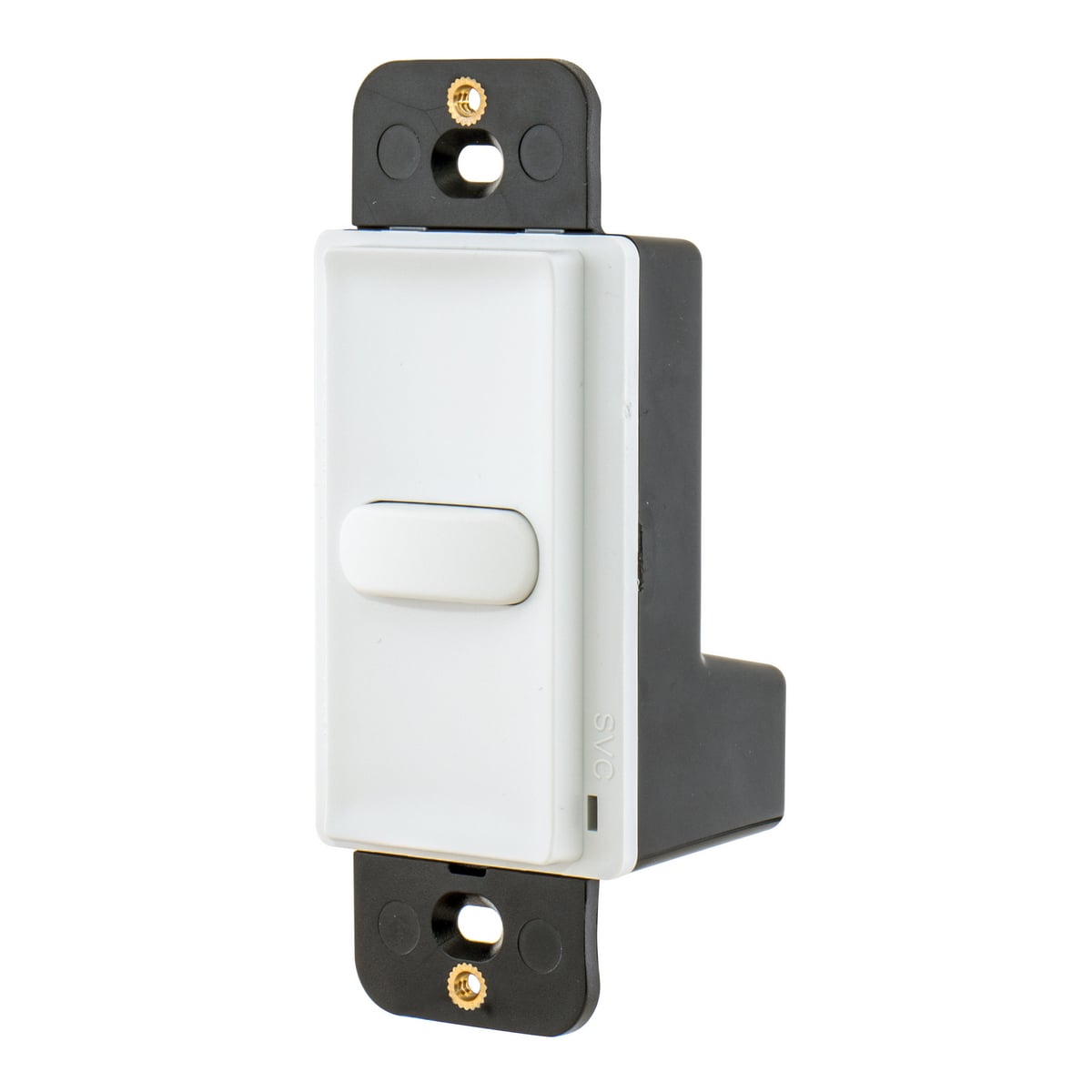

DSL30W1 1-Button 2-Position Low Voltage Specification Grade Standard Latching Decorator Switch, 24 VDC, 100 mA
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- DSL30W1
- UPC:
- 783585159300
- Item #:
- 60655
DSL30W1 1-Button 2-Position Low Voltage Specification Grade Standard Latching Decorator Switch, 24 VDC, 100 mA
- MFR #:
- DSL30W1
- UPC:
- 783585159300
- Item #:
- 60655
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Manuals and Documentation
| Catalog Number | DSL30W1 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Action | Non-Snap |
| Actuator | Rocker |
| Amperage Rating | 100m |
| Application | Lighting Control Switches |
| Color | White |
| Connection | Terminal Screws |
| Contact Configuration | 2 Position |
| Contact Rating | Per UL 20 |
| Material | Composite |
| Mounting | Screw |
| Number of Poles | 1 |
| Operating Cycles | 10,000 |
| Special Features | Low Voltage, Latching |
| Standard | NEMA WD1, UL20 |
| UPC | 783585159300 |
| GTIN | 00783585159300 |
| Item Type | Accessories |
| Size | Standard Sized |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Operating Temperature | 32 Degrees F to 122 Degrees F (0 Degrees C to 50 Degrees C) |
| Voltage Rating | 24 |
