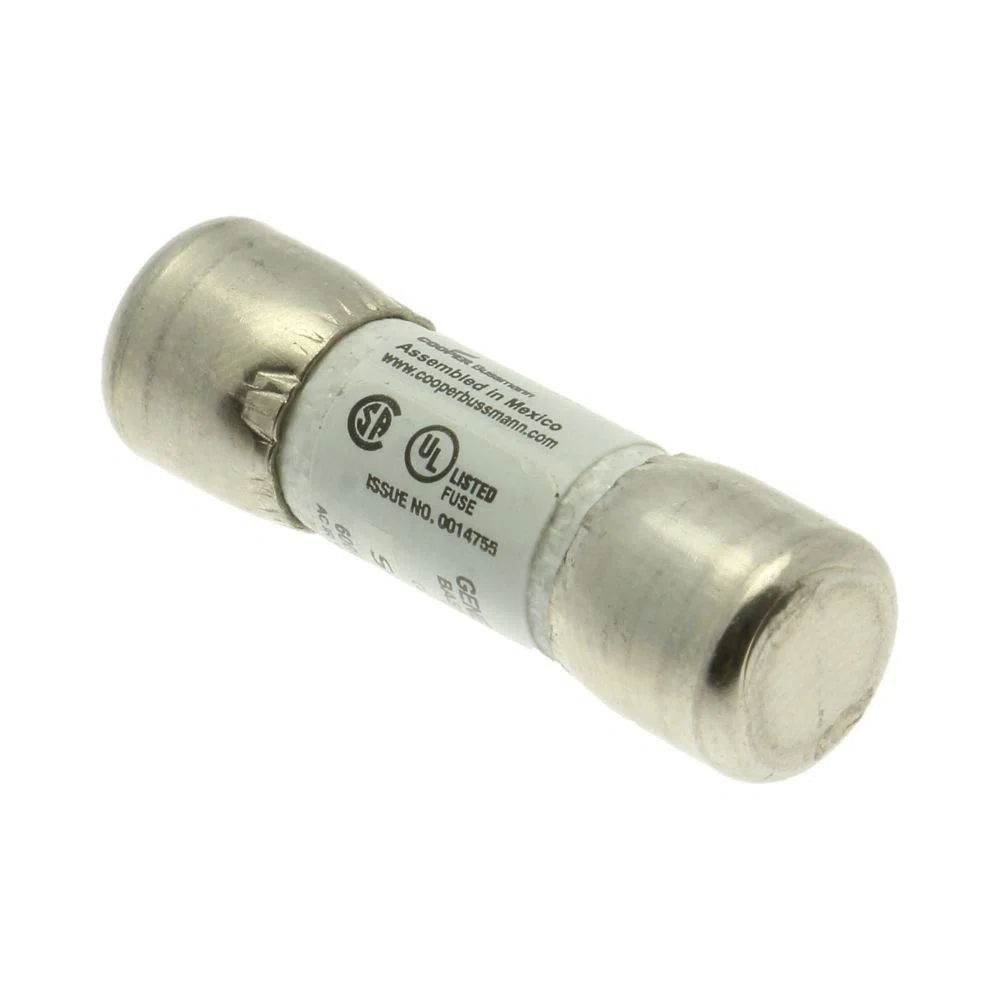

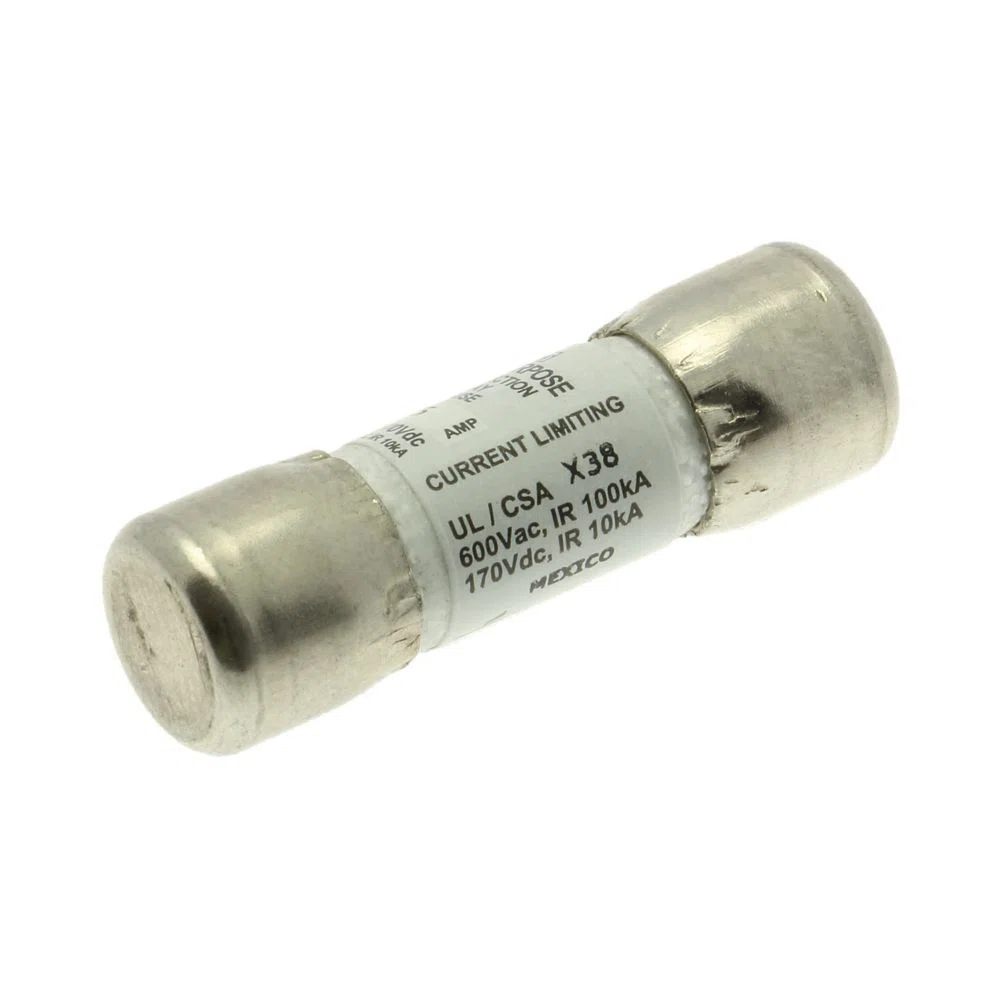

SC-2-1/2 Current Limiting Low Voltage Time Delay Fuse, 2.5 A, 600 V AC/170 V DC, 100/10 kAIC Interrupt, G Class, Cartridge Body
- MFR:
- Eaton
- MFR #:
- SC-2-1/2
- UPC:
- 051712189873
- Item #:
- 604576
SC-2-1/2 Current Limiting Low Voltage Time Delay Fuse, 2.5 A, 600 V AC/170 V DC, 100/10 kAIC Interrupt, G Class, Cartridge Body
- MFR #:
- SC-2-1/2
- UPC:
- 051712189873
- Item #:
- 604576
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$100.80
each
Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing
Manuals and Documentation
Features
- Current limiting for component protection, providing class G energy limitation for branch circuit protection
- 100 kA interrupt rating provides cost effective branch circuit fusing
- Variations in length help prevent overfusing
| Manufacturer Part Number | SC-2-1/2 |
| Brand | Bussmann |
| Manufacturer | Eaton |
| UPC | 051712189873 |
| Amperage Rating | 2.5 A |
| Material | Melamine |
| Mounting Type | Holder |
| Series | SC Series |
| Type | Current Limiting Low Voltage Time Delay |
| Voltage Rating | 600 V AC/170 V DC |
| Alternative Part Number | 10514283 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | CE Marked,RoHS Compliant |
| Application | Industrial Facilities and Factories, Safety and Security Systems, Fusible Branch Panelboard, HVAC Branch Circuit Protection and General Purpose Applications |
| Body Size | 0.41 in Dia x 1.31 in L |
| Body Type | Cartridge |
| Class | G |
| Indicating Non Indicating | Non-Indicating |
| Interrupt Rating | 100/10 kAIC |
| Rejection Non Rejection | Rejection |
| Response Time | 12 s at 200% |
| Terminal Type | Ferrule End |
