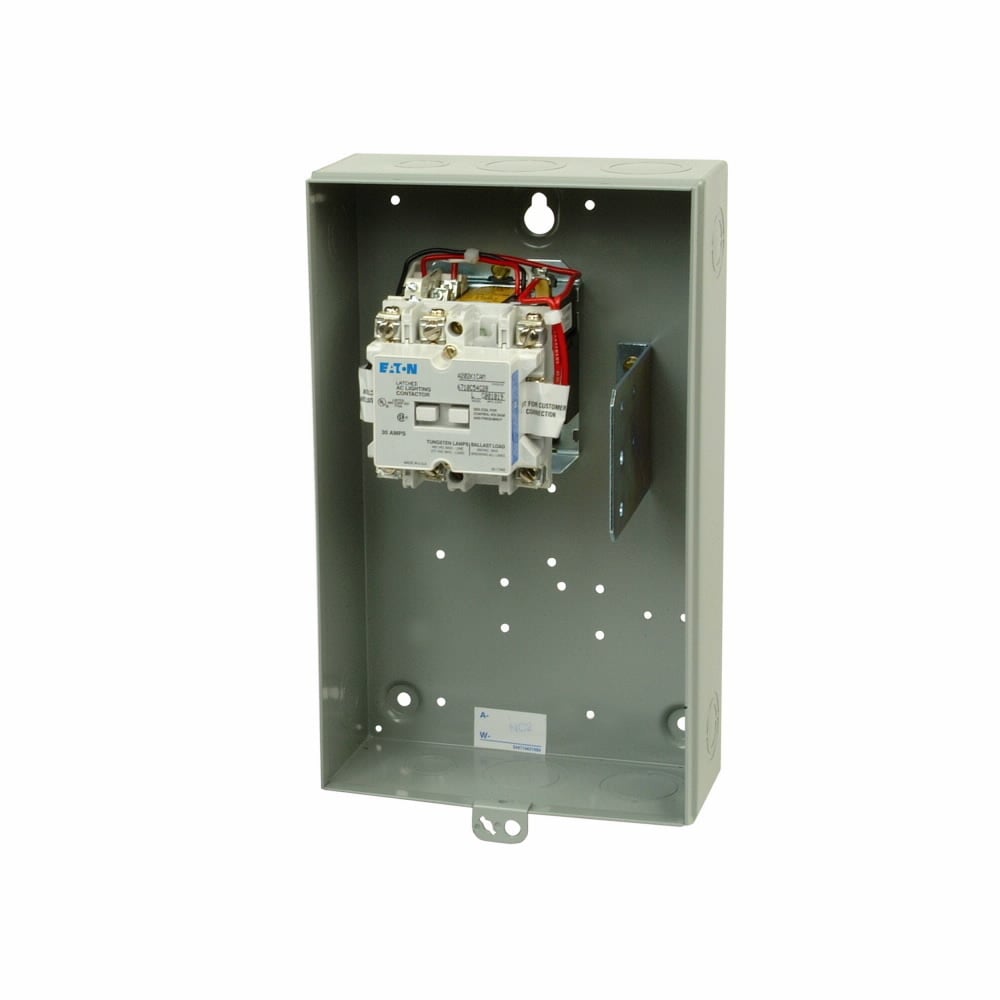

ECL04C1A2A ECL04/CN35/A202 General Purpose Non-Combination Magnetically Latched Mechanically Held Lighting Contactor, 110/120 V AC Coil, 1NO Contact, 2 Poles
- MFR:
- Eaton
- MFR #:
- ECL04C1A2A
- UPC:
- 782114073049
- Item #:
- 603575
ECL04C1A2A ECL04/CN35/A202 General Purpose Non-Combination Magnetically Latched Mechanically Held Lighting Contactor, 110/120 V AC Coil, 1NO Contact, 2 Poles
- MFR #:
- ECL04C1A2A
- UPC:
- 782114073049
- Item #:
- 603575
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,037.04
each
The A202 lighting contactor provides a safe and convenient means for local or remote switching of relatively large tungsten, fluorescent or mercury arc lamp loads. The magnetically latched lighting contactors are designed to withstand the large initial inrush currents of tungsten lamp loads without contact welding. As fully rated devices, they do not require de-rating similar to standard motor control contactors. The product also provides effective control in applications such as office buildings, industrial plants, hospitals, stadiums, airports etc.
| Catalog Number | ECL04C1A2A |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other|Commercial / Institutional Buildings / Structures - Lighting and Lighting Controls|Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other|Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs|Ind Facilities & Factories - Facility: Lighting and Lighting Controls |
| Contact Rating | 30 A |
| Standard | cUL Listed,UL Listed |
| UPC | 782114073049 |
| GTIN | 00782114073049 |
| Item Type | Magnetically held lighting contactor |
