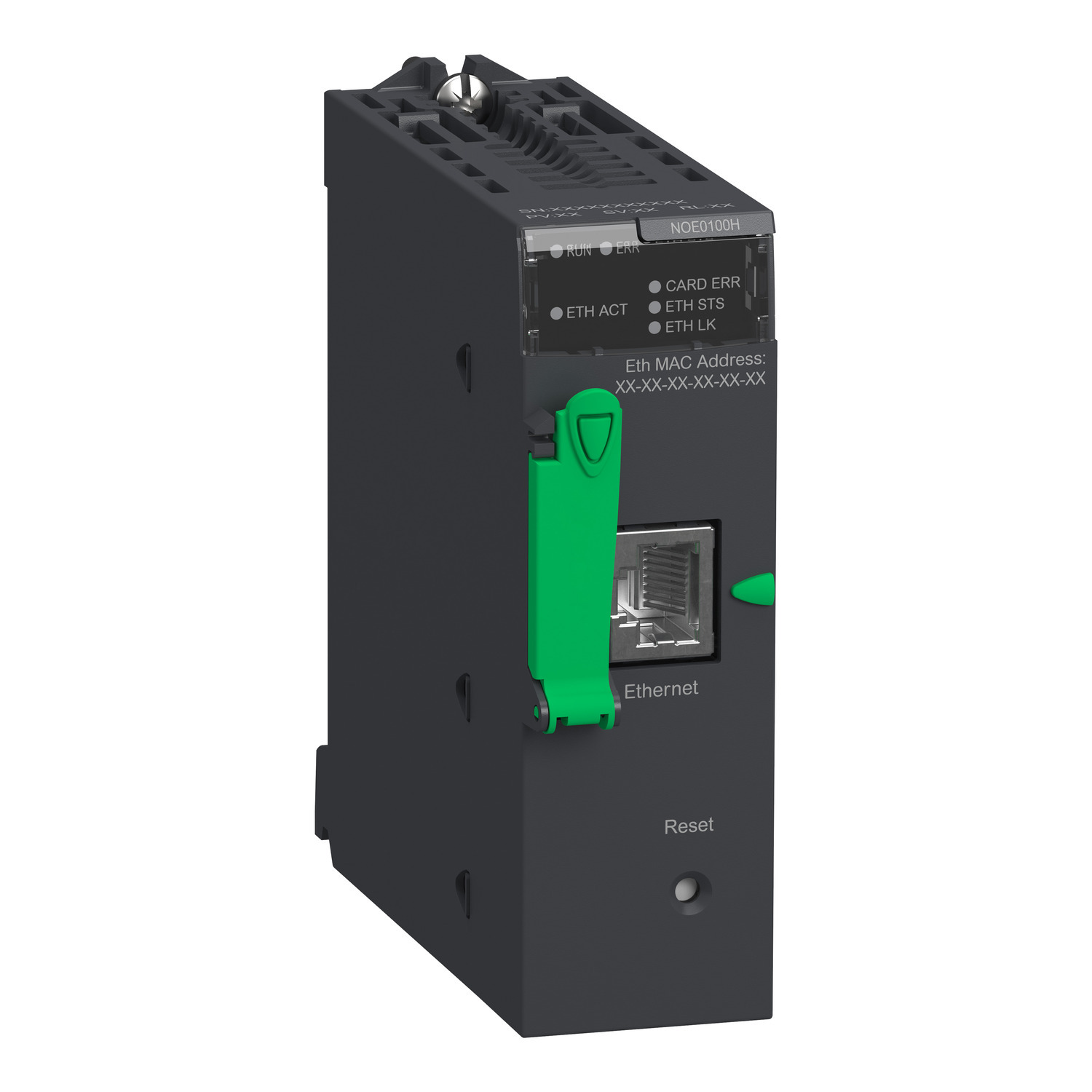

BMXNOE0100H Modicon Standard Format TCP/IP Ethernet TCP/IP Network Module, 24 V DC, 90 mA, 10/100 Mbps Communication
- MFR:
- Schneider Electric
- MFR #:
- BMXNOE0100H
- Item #:
- 602683
BMXNOE0100H Modicon Standard Format TCP/IP Ethernet TCP/IP Network Module, 24 V DC, 90 mA, 10/100 Mbps Communication
- MFR #:
- BMXNOE0100H
- Item #:
- 602683
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has conformal coating. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25C to +70C. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable. It is an IP20 rated product. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with flash memory card (BMXRWSC016M). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
Manuals and Documentation
| Catalog Number | BMXNOE0100H |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=7972848&lang=en-us |
| GTIN | 03595864024462 |
