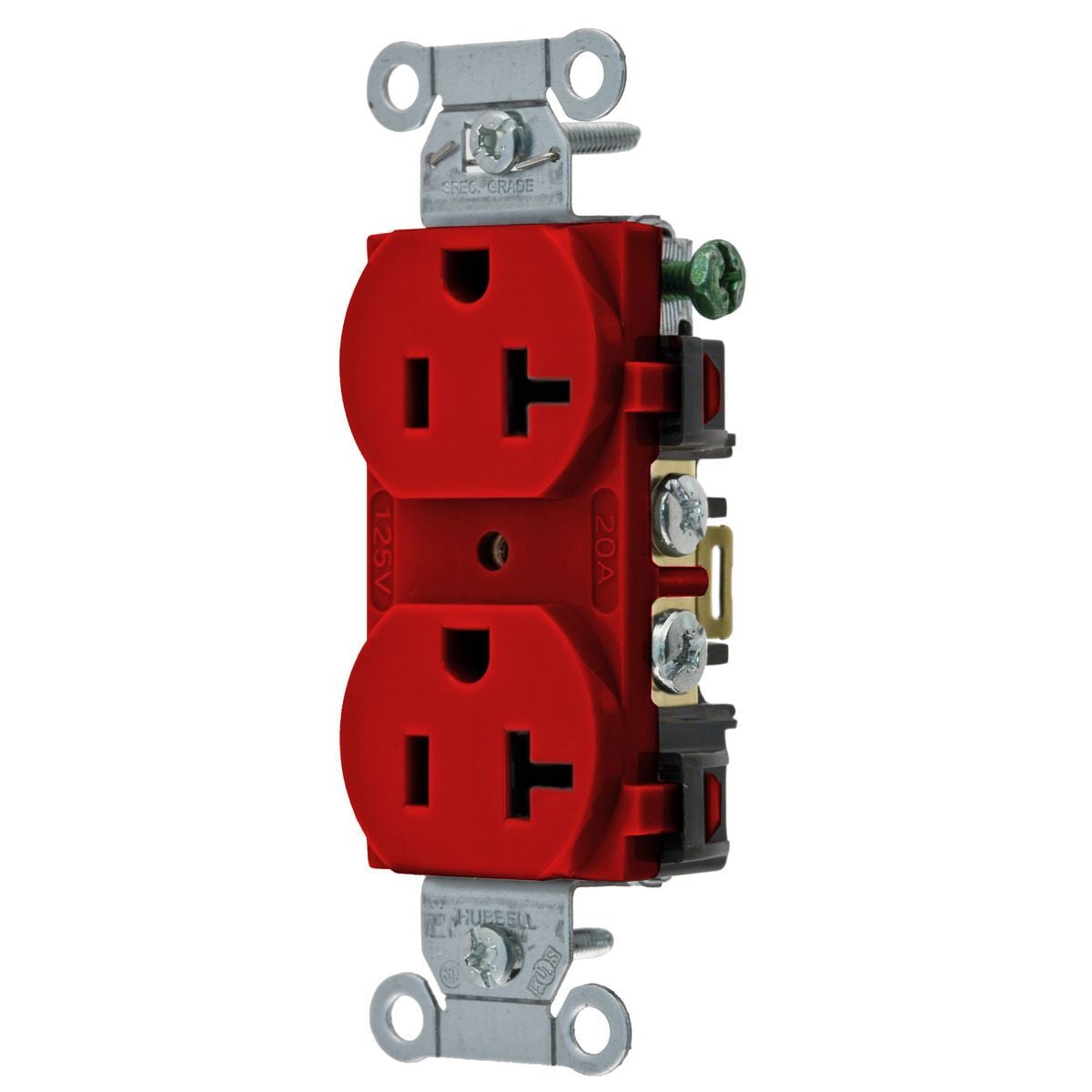

5352AR 1-Phase Duplex Heavy Duty Standard Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- 5352AR
- UPC:
- 783585127729
- Item #:
- 60196
5352AR 1-Phase Duplex Heavy Duty Standard Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
- MFR #:
- 5352AR
- UPC:
- 783585127729
- Item #:
- 60196
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$10.91
each
Manuals and Documentation
| Catalog Number | 5352AR |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Hubbell-Pro Heavy Duty |
| Color | Red |
| Connection | Back and Side Wired |
| Material | Thermoplastic/Composite |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Self Grounding |
| Standard | UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant |
| UPC | 783585127729 |
| GTIN | 00783585127729 |
| Item Type | Standard Duplex |
| Size | Standard Sized Product |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Temperature Rating | Maximum continuous 75 Degrees C; minimum -40 Degrees C (w/o impact) |
| Voltage Rating | 125 |
| Wattage | 1,875 W |
| Wire Size | #12 AWG to #10 AWG |
| Cross Reference Products | 5352-R, 5362-SR |
