BURNDY

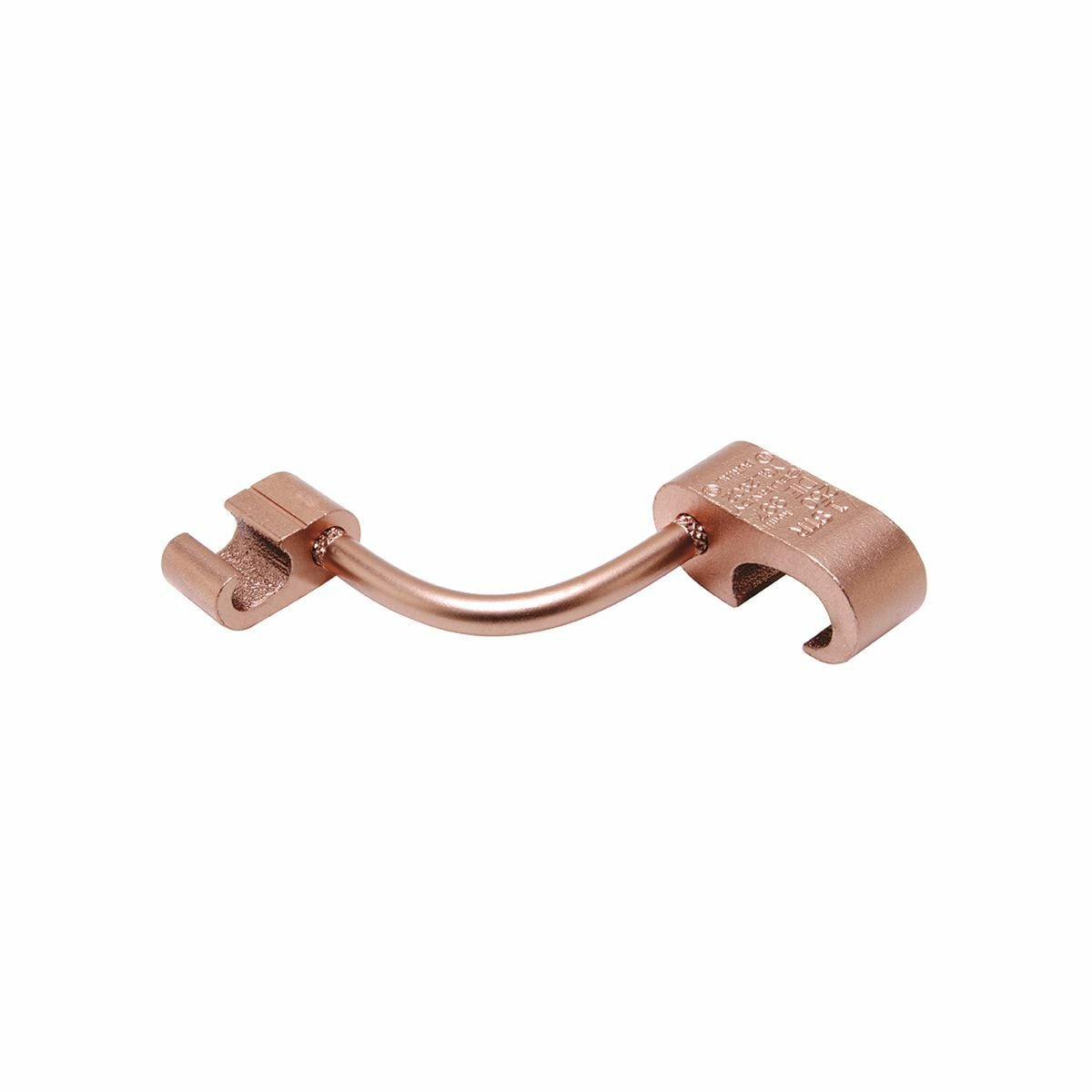

YGL29C2 Type YGL-C Compression Cross Grid Connector, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 2 AWG, 4 AWG, 6 AWG, 250 kcmil Conductor, 1/2 to 5/8 in Rod, Copper, Unplated

MFR:
Burndy, a Hubbell affiliate
MFR #:
YGL29C2
UPC:
781810220016
Item #:
60180

Availability

Location Available Qty
Available Available to Order
$212.76 each
Manuals and Documentation
Catalog Number YGL29C2
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application For Direct Burial In Earth And Concrete
Material Copper
Special Features Features: An Irreversable Compression Ground Grid Cross Connector Which Allows Adjustment Of The Compression Elements Prior To Installation, Only Six Connectors And Four Dies Are Required To Install All Combinations From #6 AWG Solid Through 500 KCMIL, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Rebar Size: #3 - #4, Ground Rod Size: 1/2 - 5/8 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Element A: Y750/Y35/Y39 HYPRESS Tool, U997 Die, (1), PAT750-18V Tool, U997 Polarized Die, (1), Y45 Tool, U997 Die, (1), Y46 Tool, U997 Die, (1), Element B: Y750/Y35/Y39 Tool, U-0 Die, (1), PAT750-18V Tool, U-0 Die, (1), Y45 Tool, U-0 Die, (1), Y46 Tool, U-0 Die, (1), Conductor Size (run - Range): 2 AWG - 250 KCMIL, Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Die Index: 997 Element A, O Element B, Conductor Size (tap Range): 6 - 2 AWG
Standard UL467;IEEE 837;IEEE 837 2014 Qualified
UPC 781810220016
GTIN 00781810220016
Item Type Taps
