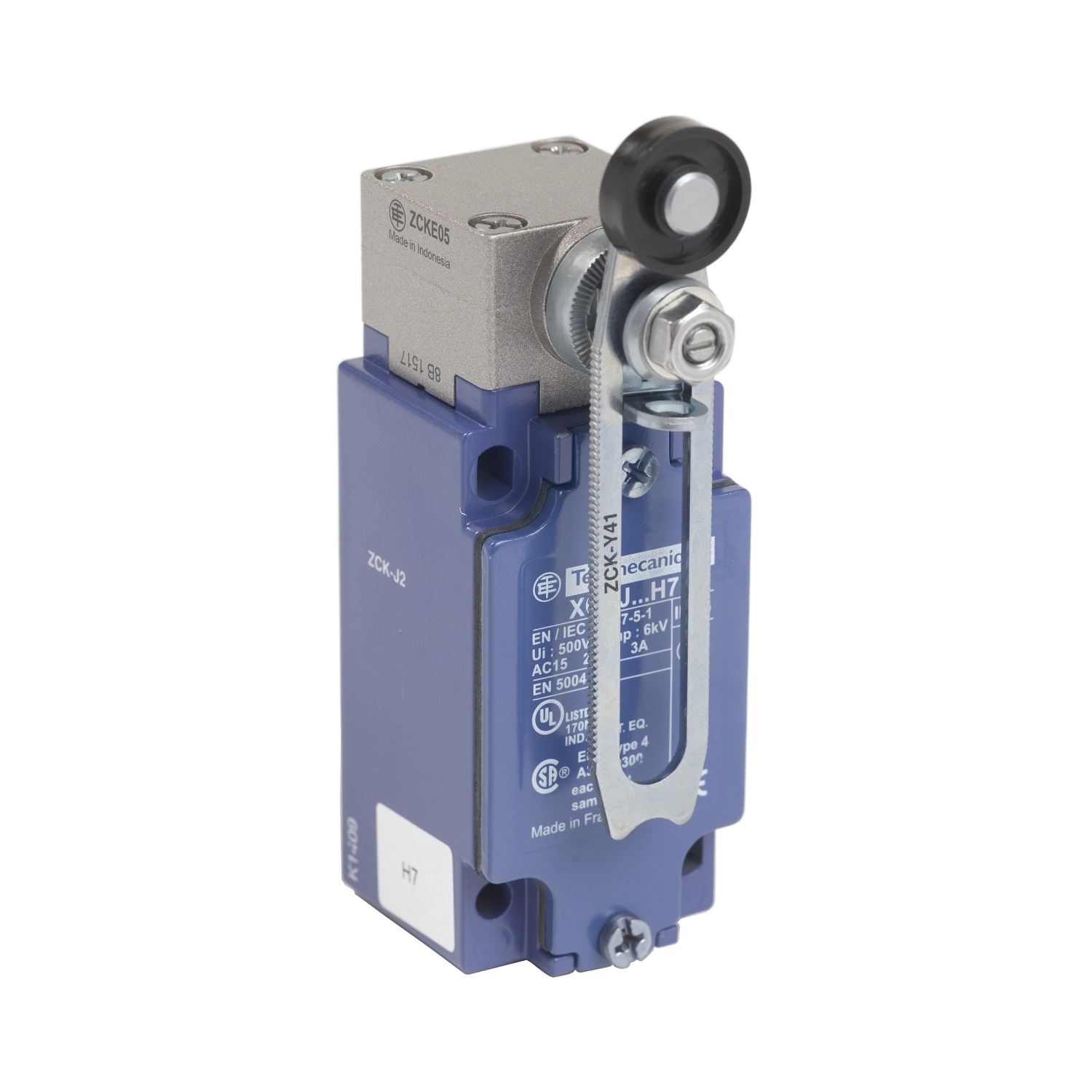

XCKJ20511H7 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 10 A, Spring Return Without Operating Lever Actuator, 1CO Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKJ20511H7
- UPC:
- 785901980858
- Item #:
- 60093
XCKJ20511H7 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 10 A, Spring Return Without Operating Lever Actuator, 1CO Contact, 2 Poles
- MFR #:
- XCKJ20511H7
- UPC:
- 785901980858
- Item #:
- 60093
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$510.93
each
LIMIT SWITCH 240 VAC 10 AMP XCKJ +OPTIONS
Manuals and Documentation
| Catalog Number | XCKJ20511H7 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Lateral approach, 1 or 2 programmable direction;Snap action, simultaneous |
| Actuator | Spring return without operating lever |
| Amperage Rating | 10 |
| Application | INDUSTRIAL |
| Connection | Screw-clamp terminals 1 x 0.75...2 x 1.5 mm² |
| Contact Configuration | 1 C/O |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,EN 60947-5-1-IEC 60204-1-EN 60204-1-IEC 60947-5-1-UL 508-CSA C22.2 NO 14-CENELEC EN 50041,IK07 EN 50102,IP66 IEC 60529,UL-CSA-CCC |
| UPC | 785901980858 |
| GTIN | 03389119074827 |
| Item Type | Limit switch |
| Size | 1.73 |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
