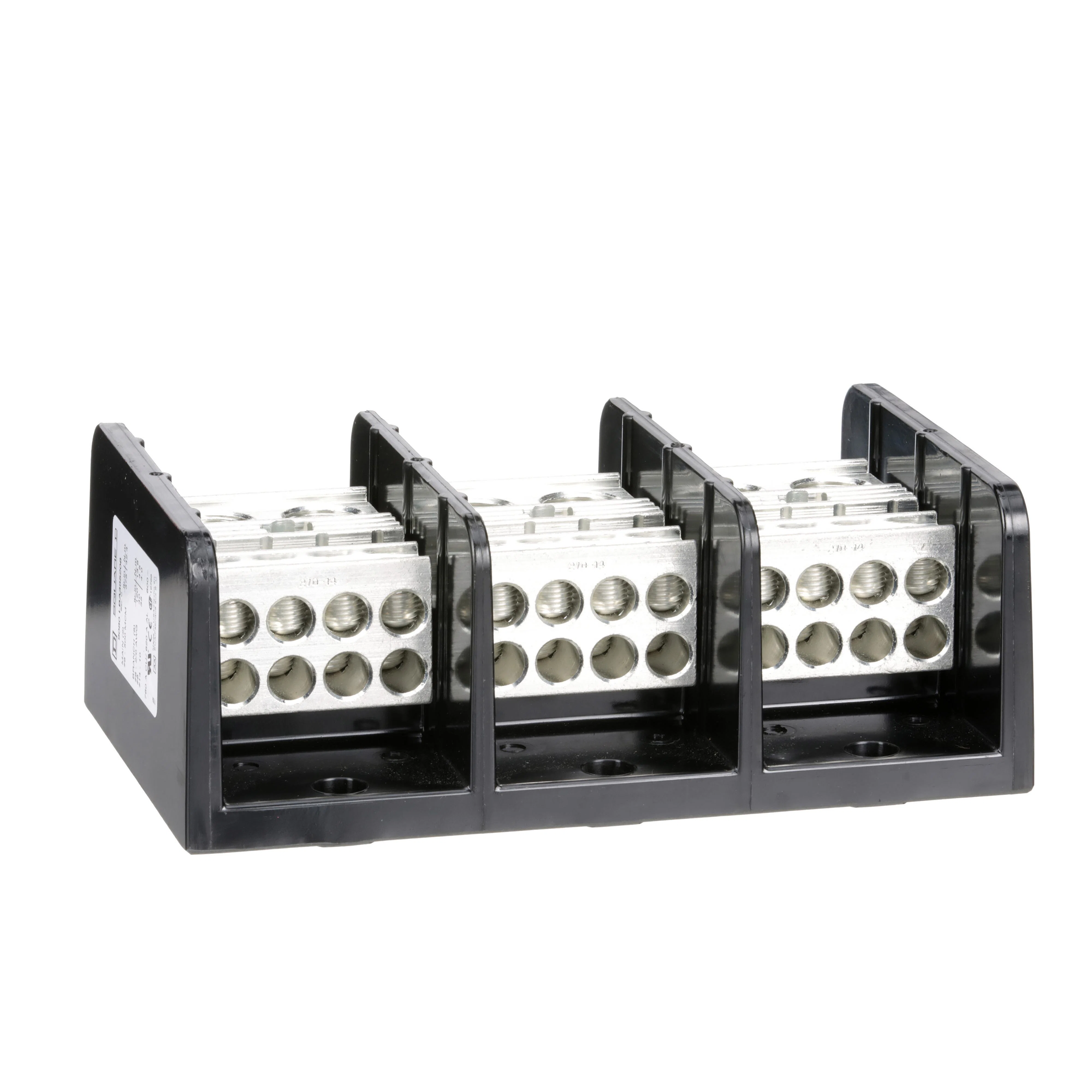

9080LBA365208 TeSys Standard Multi-Pole Power Distribution Block, 600 V AC/DC, 620/760 A, 3 Poles, (2) 4 AWG to 500 kcmil/(8) 14 to 2/0 AWG Wire, Phenolic
- MFR:
- Schneider Electric
- MFR #:
- 9080LBA365208
- UPC:
- 785901097563
- Item #:
- 5982
9080LBA365208 TeSys Standard Multi-Pole Power Distribution Block, 600 V AC/DC, 620/760 A, 3 Poles, (2) 4 AWG to 500 kcmil/(8) 14 to 2/0 AWG Wire, Phenolic
- MFR #:
- 9080LBA365208
- UPC:
- 785901097563
- Item #:
- 5982
Availability
| Location | Available Qty |
|---|---|
| Available | 2 ea |

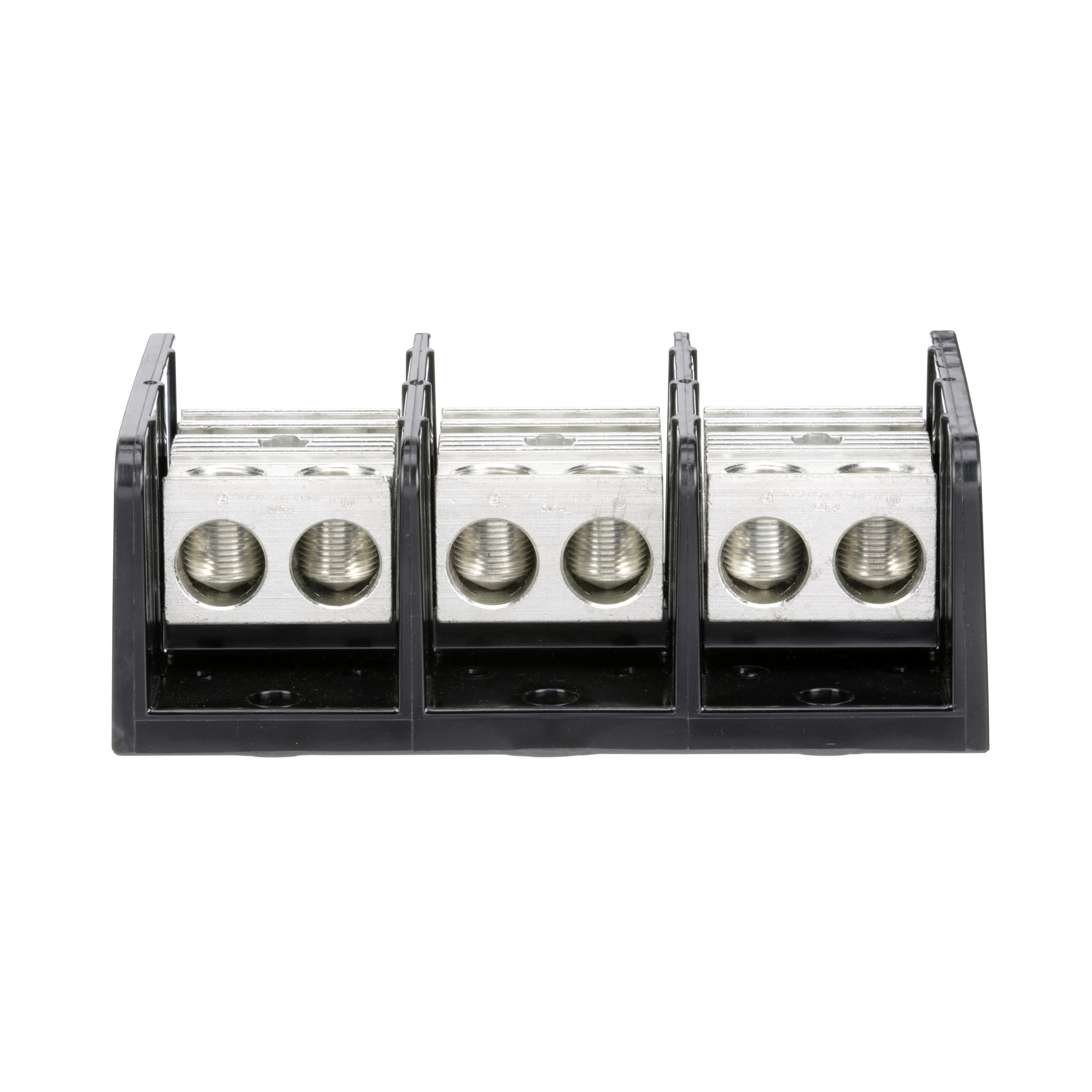

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and eight lug openings on the load (branch) side. The line side lug is rated to accept one 6 to 500 kcmil copper or aluminum wire. The load side lugs are rated to accept one 14 to 2/0 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 760 amperes with copper wire and 620 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Manuals and Documentation
Features
- Power Distribution Blocks is perfect for splicing or distributing wires within control panels
- Has numerous configurations for power distribution and also allows customer save on panel space
- The housing is made of general purpose phenolic
| Manufacturer Part Number | 9080LBA365208 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901097563 |
| EAN | 0785901097563 |
| Country Of Origin | US |
| Amperage Rating | 620/760 A |
| Dimensions | 8.54 in W x 3.12 in D x 5.5 in H x 8.54 in W x 3.12 in D x 5.5 in H |
| Material | Phenolic |
| Series | 9080LB |
| Type | Standard Multi-Pole |
| Voltage Rating | 600 V AC/DC |
| Alternative Part Number | 8019318 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | RoHS Compliant | CE Certified | CSA File No. LR70361 | UL File No. E60616 | UL 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Application | For 9080LB, 9080LB53 power distribution block covers and general purpose applications |
| Number Of Poles | 3 |
| Primary Connections Pole | 2 |
| Secondary Connection Pole | 8 |
| Short Circuit Current Rating | 65 kA |
| Wire Size | (2) 4 AWG to 500 kcmil/(8) 14 to 2/0 AWG |
