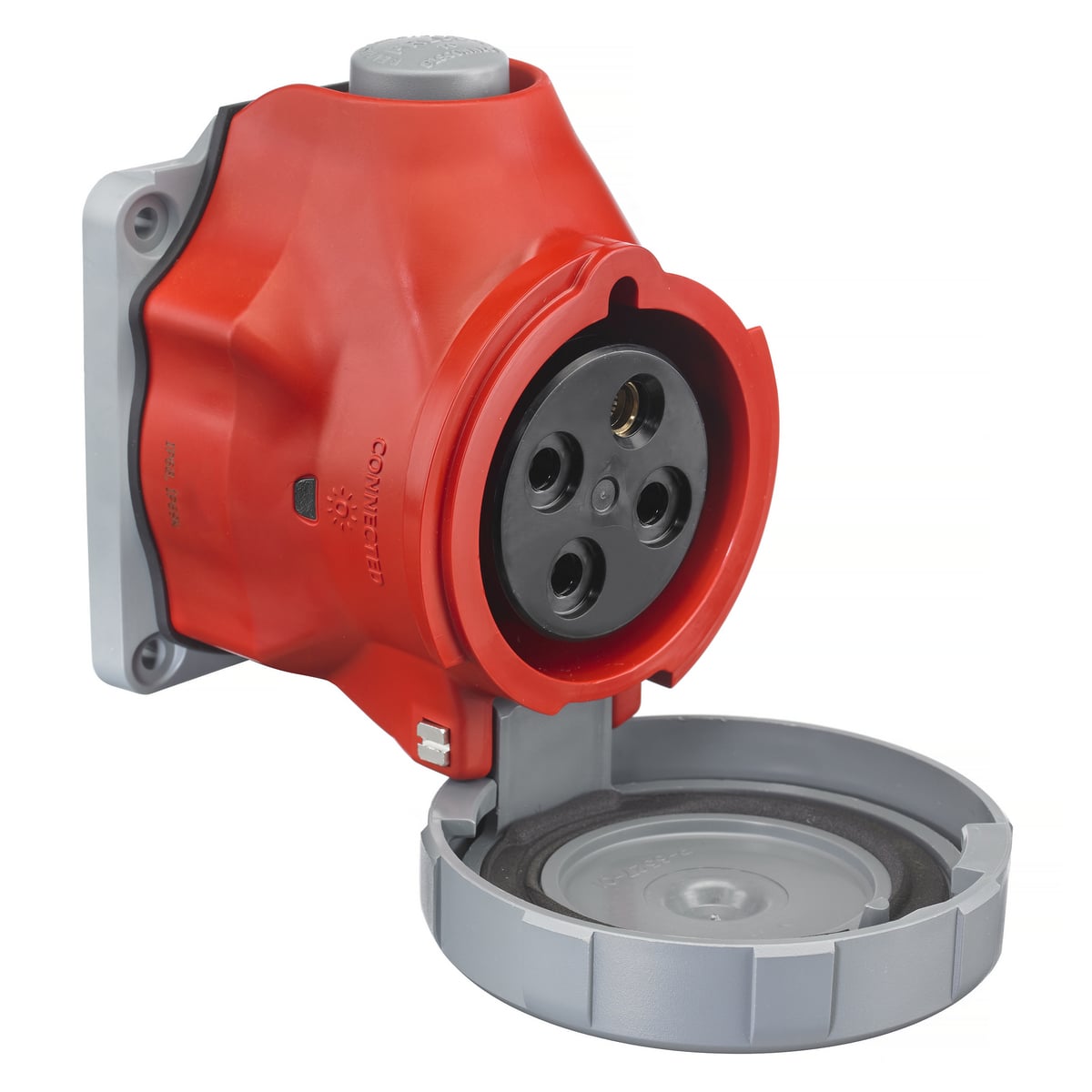

HBLS460R7W 1-Phase Grounding Switch Rated Screw Mount Pin and Sleeve Receptacle With Pilot Pin, 480 VAC, 60 A, 3 Poles, 4 Wires, Red

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBLS460R7W
UPC:
783585478647
Item #:
598041

Availability

Location Available Qty
Available Available to Order
$904.35 each

Advantage Series Pin and Sleeve Switch-Rated - Hubbell Wiring Device-Kellems Advantage Series Pin and Sleeve SwitchRated Devices are IEC 60309-2 compatible devices that are approved as a disconnecting means for motor and branch circuits. Compact design, this device is similar in size to standard IEC 60309-2 devices. Robust and durable housing, UV-stabilized, impact and corrosion-resistant PBT housing is designed to withstand harsh industrial environments. Stainless steel hardware provides superior corrosion resistance in wet and harsh environments Receptacles mount to standard Hubbell IEC Pin and Sleeve back boxes. The Advantage Series has a UL witnessed IP69k and 4X,12 environmental rating, two power-indicating LEDs, continuous ground engagement, labelless laser markings and a compact and ergonomic design. Hubbells Pin and Sleeve connections have always been safe that hasnt changed. The Advantage series simply has more Advantages.

Manuals and Documentation
Catalog Number HBLS460R7W
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Puerto Rico
Made in USA No
Amperage Rating 60
Application Commercial Grade
Color Red
Connection Terminal Screws
Material Composite
Mounting Screw
NEMA Rating 5
Number of Poles 3
Number of Wires 4-Wire
Special Features Self Test, USA Product
Standard UL498/CSA
UPC 783585478647
GTIN 00783585478647
Item Type Watertight Receptacle
Size Standard Sized Products
Environmental Conditions Indoor Dry Unless Protected by Other Means
Temperature Rating -40 Degrees C to 70 Degrees C
Voltage Rating 3 Phase 480
Wattage 2500
Wire Size #14 AWG to #12 AWG
