Appleton

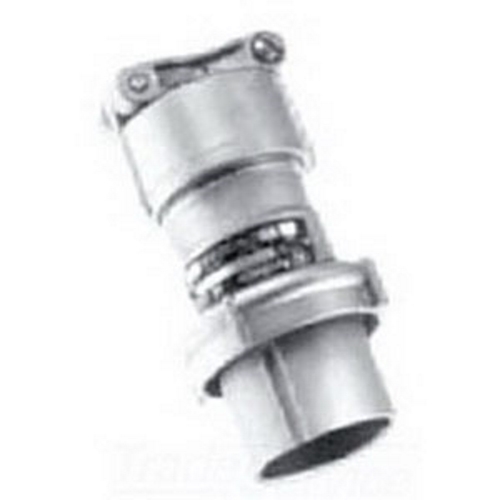

Style-2 Grounding 4-Pole Clamping Ring Plug, 30 A, 3-Wire, Copper-Free Aluminum

MFR:
Appleton Electric
MFR #:
AEP3461
UPC:
781381136006
Item #:
59641

Availability

Location Available Qty
Available Available to Order
$1,179.57 each

AE Series Grounding Style 2 Clamping Ring Plug, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 14 - 8 AWG, Amperage Rating: 30 AMP, Voltage Rating: 600 VAC, 250 VDC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Connection: Pressure Wire Terminal, Finish: Epoxy Powder Coat, Plug Cable Diameter: 5/8 - 3/4 IN, Standard: UL 1682, UL 1686, For AE342, AE348 Receptacles And APR3461 Connector Body

Manuals and Documentation
Catalog Number AEP3461
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 30
Application For AE342, AE348 Receptacles And APR3461 Connector Body
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Number of Poles 4
Number of Wires 3
Special Features Grounding style: shell and extra pole; Weatherproof; Contacts exert constant pressure along the entire contact surface, providing electrical continuity, solid brass contacts with beryllium copper springs; Plug with clamp ring has neoprene gasket, ring threads onto screw cap receptacle to provide raintight assembly when properly tightened; Insulating blocks provide high degree of dielectric and mechanical strength and lowest moisture absorption, lowest arc tracking; Floating-type plug contacts self-align to receptacle contacts; For welders, generators, compressors, pumps, similar apparatus; Natural finish fiber glass reinforced phenolic insulation blocks
Standard UL 1682, UL 1686
UPC 781381136006
GTIN 00781381136006
Item Type AE Series Grounding Style 2 Clamping Ring Plug
Voltage Rating 600 VAC, 250 VDC
Wire Size 14 - 8 AWG
