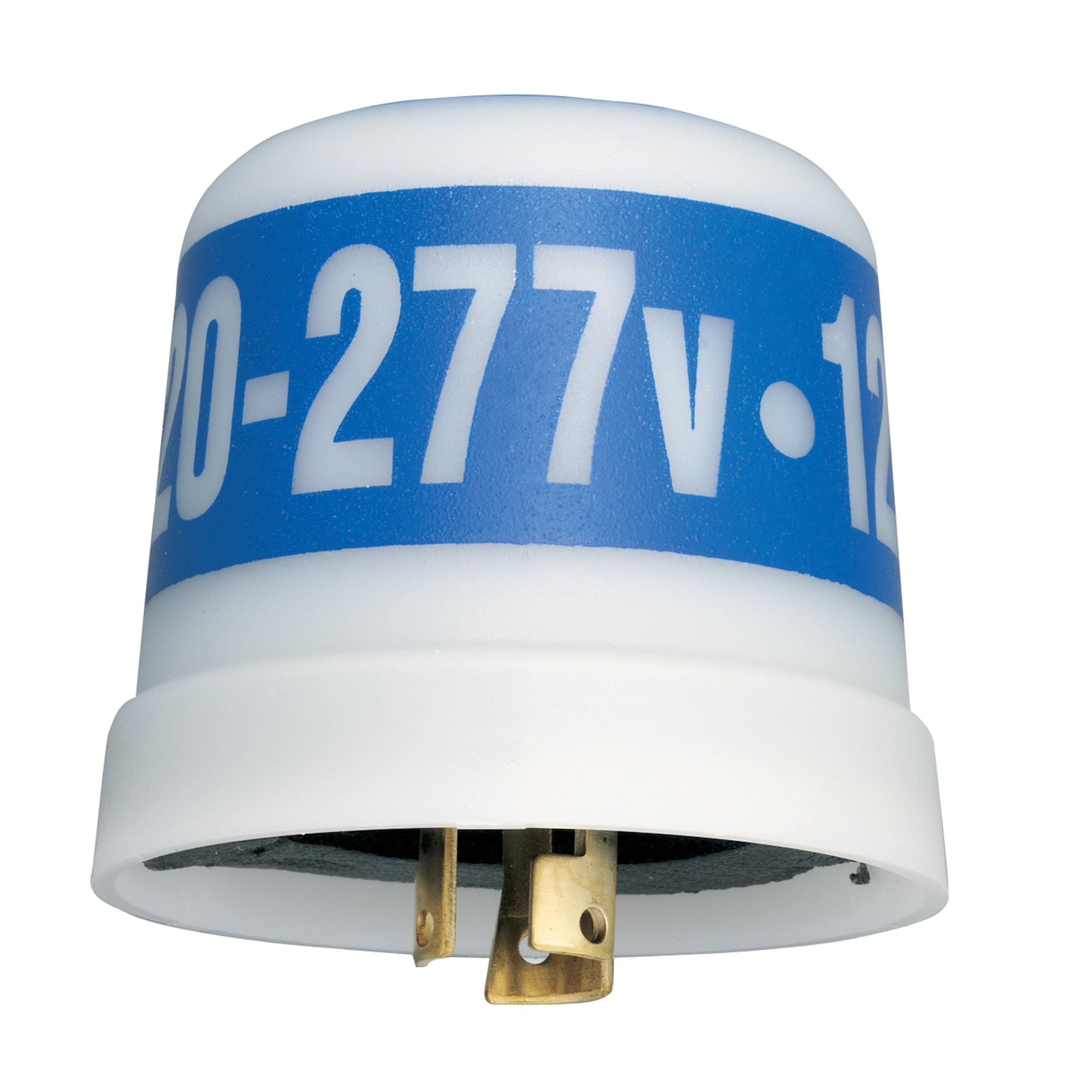

EK4536 Side Turn-Lock Photocontrol, 105 to 305 V AC, 1800 VA Tungsten, 1000 W Ballast, Fixture Mount, Polypropylene
- MFR:
- Intermatic
- MFR #:
- EK4536
- UPC:
- 078275130173
- Item #:
- 59639
EK4536 Side Turn-Lock Photocontrol, 105 to 305 V AC, 1800 VA Tungsten, 1000 W Ballast, Fixture Mount, Polypropylene
- MFR #:
- EK4536
- UPC:
- 078275130173
- Item #:
- 59639
Availability
| Location | Available Qty |
|---|---|
| Available | 102 |
$25.97
each
Designed to meet a 15-year service life, this photocontrol is LED-compatible and backed by an 8-year warranty.
Manuals and Documentation
| Catalog Number | EK4536 |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Dusk to Dawn Lighting Control |
| Connection | Lock Type |
| Enclosure | NEMA 410 |
| Frequency Rating | 50/60 HZ |
| Mounting | Nema Twistlock |
| Operating Cycles | 10000 |
| Sensitivity | 1.5 FC ON, 2.25 FC OFF |
| Sensor | Solid State Photo Sensor (Silicon IR Filtered) |
| Special Features | Features: Long Life, Electronic Photocell, Zero-cross technology, LED Fixtures Totaling 1650 W @ 277 VAC, Fail mode: ON |
| Standard | ANSI C136.24 Compliant, CSA Certified to Canadian, Title CA 20 Listed, RoHS Compliant |
| Supply Voltage | 105 - 305 VAC |
| UPC | 078275130173 |
| GTIN | 00078275130173 |
| Item Type | TwistLock Photocell |
| Size | 2.97 DIAMETER X 2.721 HEIGHT IN, 75.4 DIAMETER X 69.11 HEIGHT MM |
| Operating Temperature | -40 to +158 DEG F -40 to +70 DEG C |
| Timing Range | 2 - 5 S |
| Cross Reference Products | 5237-UL, ZTL124 |
