Schneider Electric

XACD22A0105 Harmony Corrosion-Resistant Double Insulated Dusttight/Watertight Medium Duty Pendant Control Station, 600 V AC, 10 A, 1NO-1NC Contact, 1 Operators, NEMA 4/4X/5/IP65 NEMA Rating

MFR:
Schneider Electric
MFR #:
XACD22A0105
Item #:
595634

Availability

Location Available Qty
Available Available to Order
$256.85 each

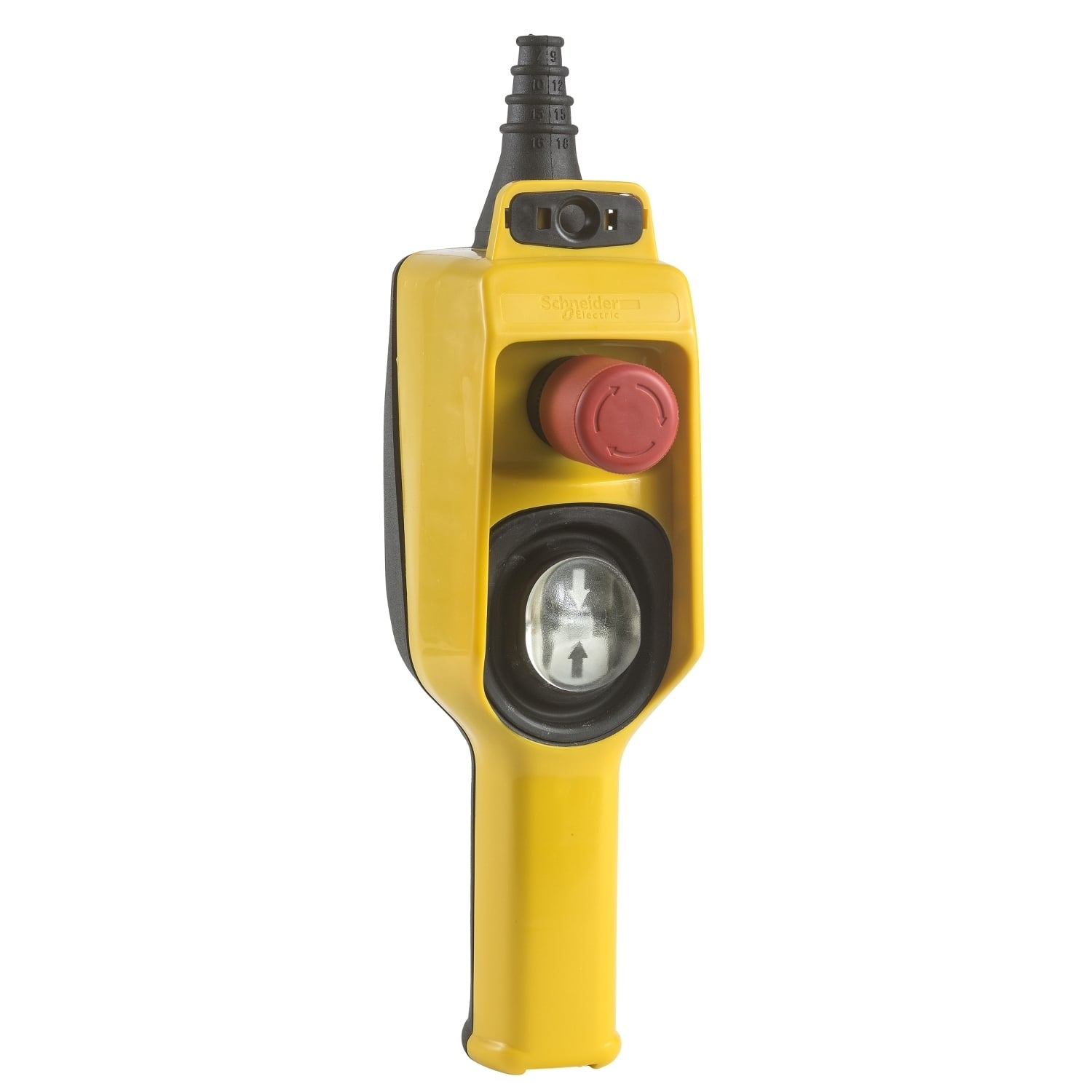

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a polypropylne enclosure with one 2-directional operator, reversing, and mechanically interlocked and 1 trigger action latching emergency stop diameter 30mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

Manuals and Documentation
Catalog Number XACD22A0105
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Control of single speed hoist motor;ZB2BE102 for emergency stop;ZB2BE102 + ZB2BE101 for each direction;Control circuit
Cable Entry Rubber sleeve with stepped entry 7-18 mm
Connection Screw clamp terminals, 1 x 2.5 mm² with or without cable end;screw clamp terminals, 2 x 1.5 mm² with or without cable end
Contact Rating Slow-break
Enclosure Polypropylene
Special Features Complete ready for use;With mechanical interlocking
Standard IK08 conforming to EN 50102;CSA C22.2 No 14;UL 508;EN/IEC 60947-5-1;EN/IEC 60204-32;70 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=673382&lang=en-us
GTIN 03389110655933
Item Type Pendant control station;Double insulated;Intuitive;Reversing
