Hubbell Wiring Device - Kellems

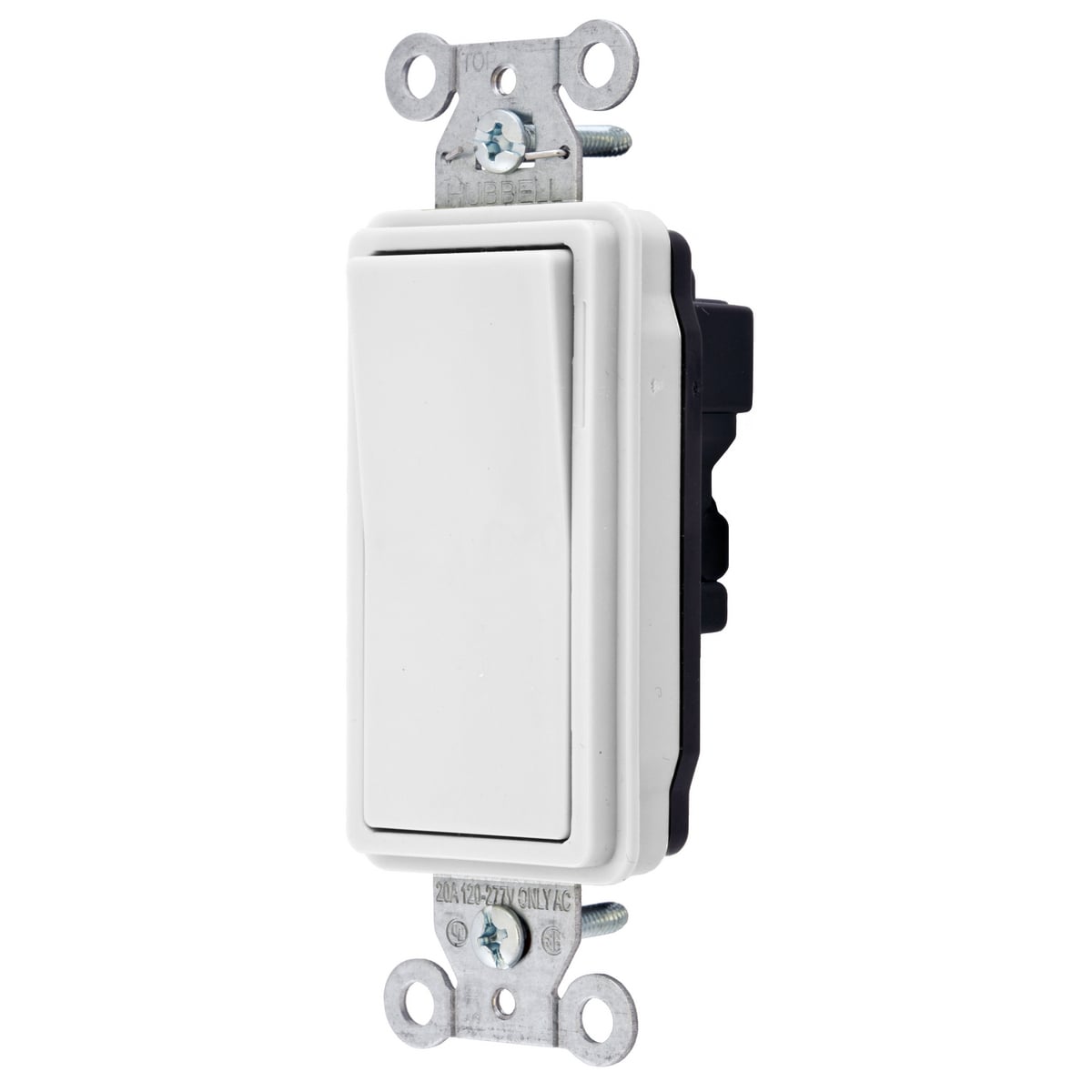

SNAP2101WNA General Purpose Heavy Duty Industrial Grade Standard Decorator Switch, 120 to 277 V AC, 15 A, 4155 W Power Rating, 2 Position Contact

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SNAP2101WNA
UPC:
783585189536
Item #:
594314

Availability

Location Available Qty
Available Available to Order
$25.27 each

SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.

Manuals and Documentation
Catalog Number SNAP2101WNA
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Action Positive Snap
Actuator Rocker
Amperage Rating 15
Application SNAPConnect Heavy Duty
Color White
Connection Connectorized
Contact Configuration 2 Position
Contact Rating Per UL 20
Material Thermoplastic
Mounting Screw
Number of Poles 1
Operating Cycles 50,000 Cycles
Special Features SNAP Connect, Self-grounding
Standard UL Listed
UPC 783585189536
GTIN 00783585189536
Item Type Rocker/Decorator
Size 4.28 in x 1.44 in x 1.54 in
Environmental Conditions Indoor Dry unless protected by additional means
Operating Temperature Maximum continuous 75 Degrees C and minimum -40 Degrees C without Impact
Voltage Rating 120-277
Wattage 4155 W
Cross Reference Products PT2601W
