BURNDY

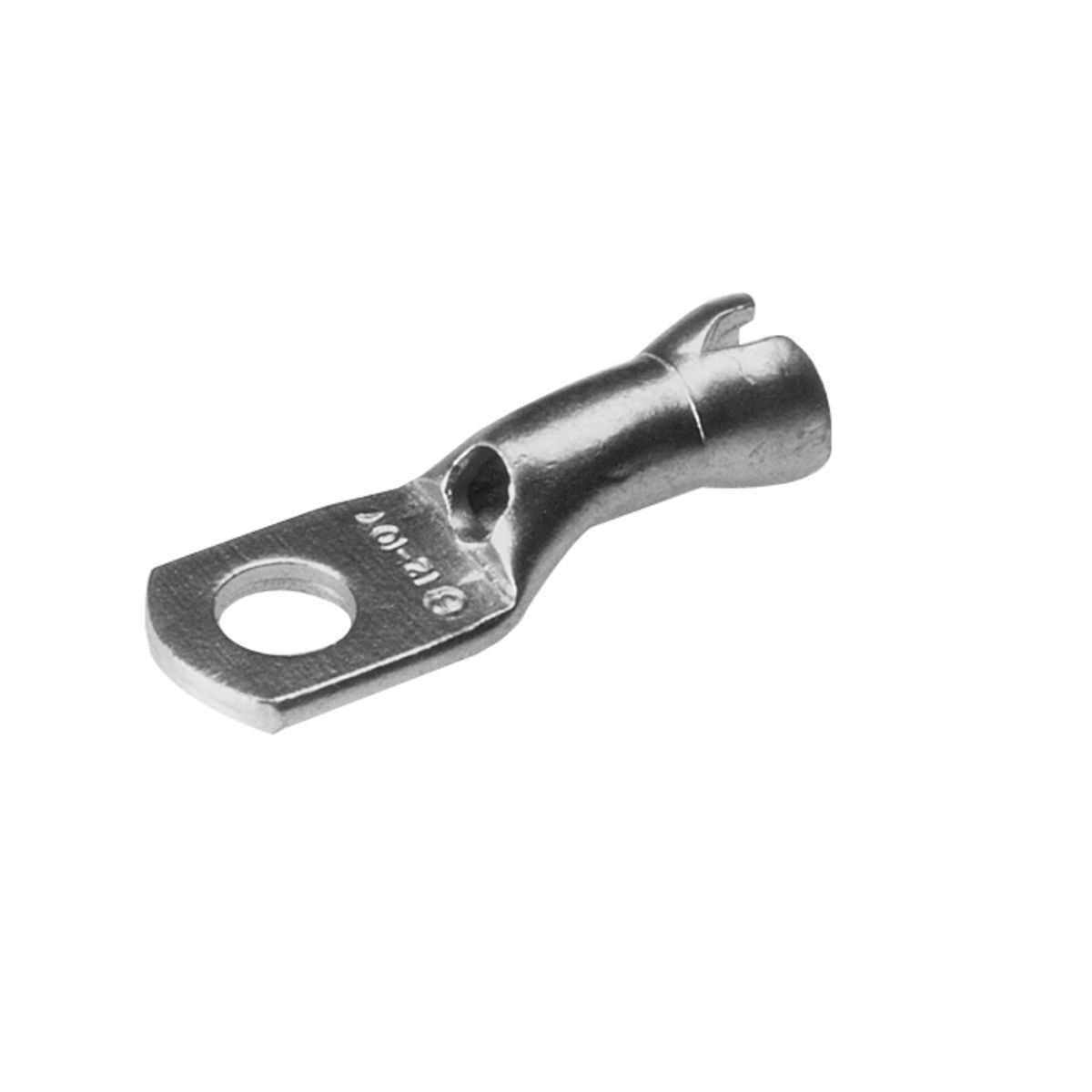

YAV10HBOX YAV-H 1-Hole Heavy Duty Uninsulated Compression Lug, 12 to 10 AWG Stranded Copper Conductor, #8 to #10 Stud, Copper

MFR:
Burndy, a Hubbell affiliate
MFR #:
YAV10HBOX
UPC:
781810532409
Item #:
59363

Availability

Location Available Qty
Available Available to Order
$4.03 each
Manuals and Documentation
Catalog Number YAV10HBOX
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors
Material Copper
Special Features Features: The Type YAV-H HYLUG Is A Seamless Heavy Duty Uninsulated Compression Ring Tongue Terminal With A Shroud For An Insulation Grip And Cable Support, They Are Manufactured From Pure Electrolytic Copper Tubing For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, The Seamless Design Produces A Double Thick Tongue And The Seamless Barrel Provides A Strong Highly Reliable Connection, Meets The Requirements Of SAE-AS7928, The Benefits Of The Type YAV Apply To The YAV-H HYLUG, Shroud/Insulation Grip Cable Support And Strain Relief: Protects The Wire Against Breaking Under Vibration Or Flexing Conditions, Insulation Diameter (maximum): 0.192 IN, Package: Box, Wire Shroud: Yes, Wire Strip Length: 7/16 IN, Conductor Type: Commercial/Military Stranded Copper, Installation Tool: Plier Type: Y10D, Y10-22 Tool, Ratchet: MR8-G98, MR8-9Q, Y8MRB-1, MR20 Tool, M8ND Tool With N10HT-24 Die, Tongue Angle: Straight
Standard UL467
UPC 781810532409
GTIN 00781810532409
Item Type Ring Tongue
